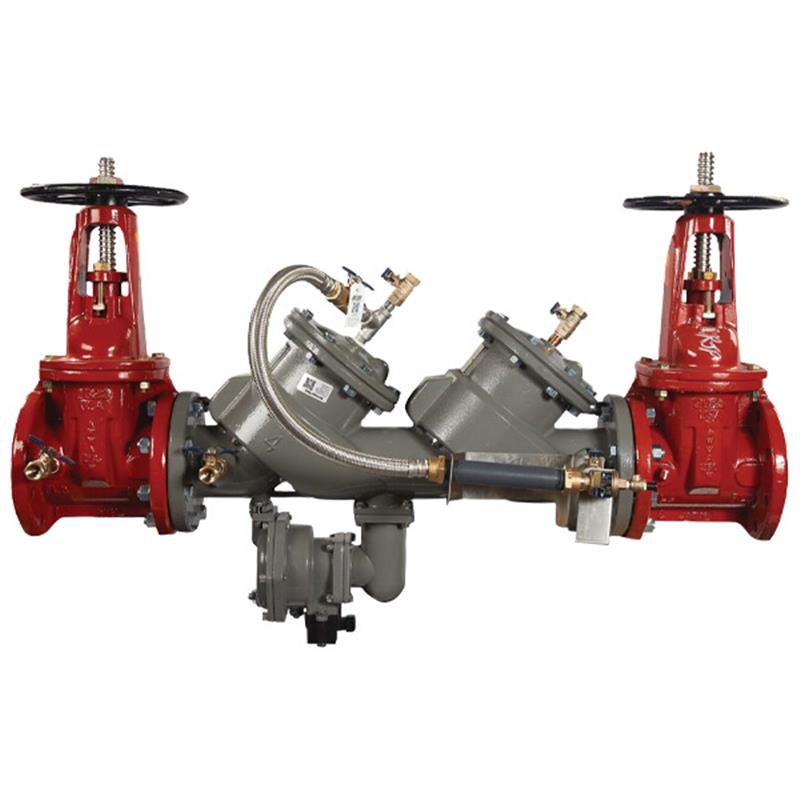

10 LF866-OSY-LM-FS

Item Number: F683197
1 1
$58,344.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 10 inch
  • Weight: 1240.0 lb
  • Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® Patented 3-Part Epoxy Coating
  • Shutoff Valves: OSY Resilient Wedge Gate Valves
  • Check Components: Stainless Steel Seats & Components
  • Max. Working Pressure: 175 PSI
  • Lead Free: Yes, less than 0.25% lead
  • Flood Sensor: Integrated SentryPlus Alert® technology

Description

This 10 inch Lead Free MasterSeries LF866V Reduced Pressure Zone Detector Assembly is designed for high hazard and toxic potable water systems, protecting against backpressure and backsiphonage. It features a durable ductile iron body with ArmorTek® advanced epoxy coating for superior corrosion resistance and extended life. Equipped with UL Classified and FM Approved OSY shutoff valves and stainless steel internal components, this assembly ensures maximum performance. An integrated flood sensor with SentryPlus Alert® technology detects excessive water discharge, enhancing system monitoring. This model includes a bypass assembly but no bypass meter, complying with Lead Free standards for potable water installations. Item number F683197.

Help Me Connect

Flood Sensor Connectivity

This backflow preventer includes an integrated flood sensor with SentryPlus Alert® technology, designed to detect excessive water discharges from the relief valve. To activate the sensor's alert capabilities and receive notifications, an add-on connection kit is required. Without this kit, the sensor functions as a passive component and does not communicate with external devices.

  • Connection Kit Options: Available kits can integrate with Building Management Systems (BMS), cellular communication, or the Sensor Control Monitor for integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform via Wi-Fi.
  • Bypass Connections: The detector bypass assembly helps identify potential underground water leaks and unauthorized water usage.
View full details

Additional Details

This 10 inch lead free MasterSeries® LF866V Reduced Pressure Zone Detector Assembly provides robust protection against backpressure and backsiphonage in high hazard (toxic) potable water systems. It is engineered for industrial installations and applications where local codes mandate protection from non-potable water contamination.

This assembly incorporates an ArmorTek® patented three-part advanced epoxy coating system, which is applied to the ductile iron internal and external surfaces of the valve body. This coating is designed to actively reduce microbial-induced corrosion (MIC) and protect exposed metal substrates, ensuring enhanced durability and extended valve life.

Features

  • Construction: Features a ductile iron valve body and relief valve body (Grade 65-45-12) with advanced ArmorTek® coating for corrosion resistance.
  • Check Components: Equipped with a stainless steel relief valve seat and stainless steel check components for maximum performance and long-term durability. Includes replaceable seats and reversible, replaceable Silicone discs.
  • Shutoff Valves: Includes OSY (Outside Stem and Yoke) resilient wedge gate shutoff valves that are UL Classified and FM Approved.
  • Flood Detection: Integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve, signaling potential flooding.
  • Bypass Assembly: A detector bypass assembly is included, designed to identify potential underground water leaks and unauthorized water usage. This configuration does not include a bypass meter.
  • Lead Free: Constructed with Lead Free materials, ensuring compliance with low lead installation requirements.

An add-on connection kit is required to activate the flood sensor's alert capabilities. Without the connection kit, the flood sensor is a passive component and will not communicate with other devices. Watts® is not responsible for alert failures due to connectivity issues, power outages, or improper installation.

Specifications

General

  • Product Type: Reduced Pressure Zone Detector Assembly
  • Model: MasterSeries LF866V
  • Size: 10 inch
  • Application: High hazard / toxic potable water systems
  • Flow Orientation: Horizontal
  • Lead Free: Yes (less than 0.25% lead by weight)

Materials

  • Main Valve Body: Ductile iron Grade 65-45-12
  • Relief Valve Body: Ductile iron Grade 65-45-12
  • Coating: ArmorTek® powder coating (internal and external surfaces)
  • Shutoff Valves: OSY resilient wedge gate valve (UL Classified and FM Approved)
  • Check Seats: Stainless steel
  • Relief Valve Seat: Stainless steel
  • Disc Holder: Stainless steel
  • Elastomer Disc: Silicone
  • Spring: Stainless steel
  • Clamp: AWWA C606

Performance

  • Max. Working Pressure: 175 psi (12.1 bar)
  • Min. Working Pressure: 20 psi (1.4 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C) continuous

Certificates & Approvals

  • Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1047
  • UL Classified (US & Canada)
  • FM Approved
  • IAPMO/CUPC
  • AWWA Standard C511 Compliant
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange

FAQs

What type of hazard protection does this backflow preventer offer?

This MasterSeries LF866V assembly is designed to protect potable water systems from high hazard and toxic contaminants due to backpressure and backsiphonage conditions.

Is the 10-inch LF866V backflow preventer compliant with Lead Free requirements?

Yes, this assembly is constructed with Lead Free materials, meaning the wetted surface contains less than 0.25% lead by weight, complying with low lead installation requirements.

What is the purpose of the ArmorTek® coating on this assembly?

The patented three-part ArmorTek® advanced epoxy coating is applied to the internal and external ductile iron surfaces to reduce microbial-induced corrosion (MIC) and protect exposed metal substrates, enhancing durability.

How does the integrated flood sensor function?

The integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. To activate its alert capabilities for notification, an add-on connection kit is required.

What are the maximum operating pressure and temperature for this backflow preventer?

This 10-inch assembly has a maximum working pressure of 175 psi (12.1 bar) and operates continuously in a temperature range of 33°F to 140°F (0.5°C to 60°C).
