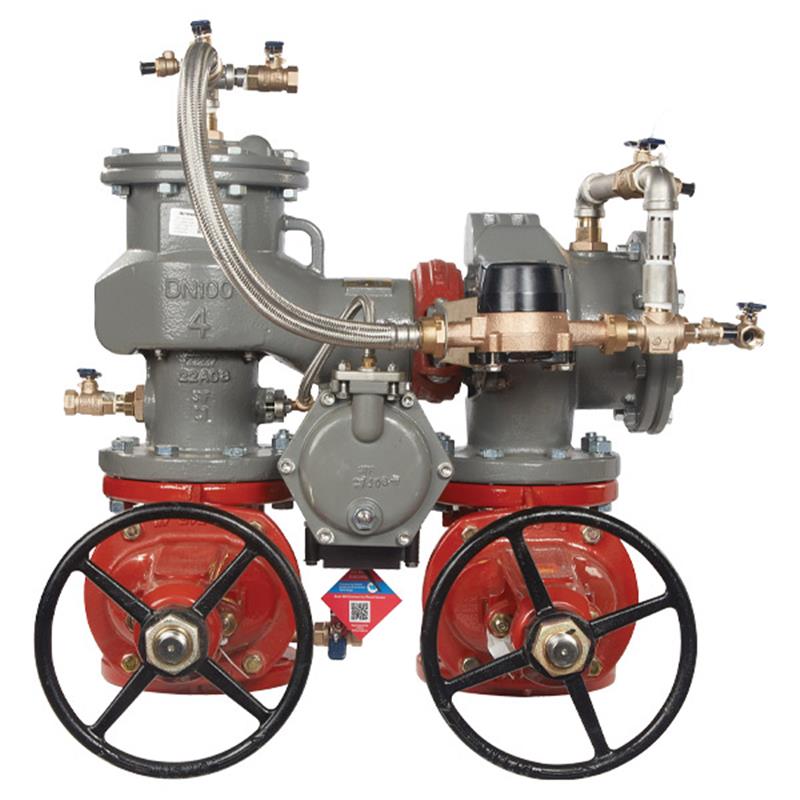

10 LF886V-OSY-CFM-FS

Item Number: F683233
1 1
$61,192.51
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • 10 inch Lead Free Reduced Pressure Zone Detector Assembly (Type II)
  • Weight: 1363.0 lb
  • ArmorTek® coated ductile iron body for superior corrosion resistance
  • Stainless steel relief valve seat and check components for durability
  • Includes OSY resilient wedge gate shutoff valves
  • Flood sensor with SentryPlus Alert® technology for discharge detection
  • Bypass line with CFM water meter to detect leaks and unauthorized use
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F to 140°F

Description

The FEBCO 10 inch MasterSeries LF886V Reduced Pressure Zone Detector Assembly (Type II) provides critical protection for potable water systems against backpressure and backsiphonage from high-hazard applications. This lead-free assembly features a durable ArmorTek® coated ductile iron body, stainless steel check components, and OSY shutoff valves. It includes a CFM metered bypass for leak detection and an integral flood sensor with SentryPlus Alert® technology to detect excessive relief valve discharge. Designed for maximum performance with a 175 psi working pressure and 33-140°F temperature range, it meets ASSE 1047, UL, FM, and AWWA C511 standards.

Help Me Connect

Flood Sensor Activation & Integration

  • To activate the integral flood sensor and enable alerts, an add-on connection kit is required.
  • Connection kit options allow integration with various systems including Building Management Systems (BMS), cellular communication networks, or via the Sensor Control Monitor.
  • The Sensor Control Monitor facilitates integration with Building Automation Systems (BAS) using RS-485 Modbus or connects to the Nexa® platform through Wi-Fi.

Main Line Connections

This 10 inch backflow preventer features end connections compliant to ASME B16.1 Class 125 and AWWA Class D Flange standards, ensuring compatibility with appropriately sized flanged piping systems.

View full details

Additional Details

The 10 inch FEBCO MasterSeries LF886V Reduced Pressure Zone Detector Assembly (Type II) protects potable water systems from backpressure and backsiphonage in high-hazard or toxic applications, such as industrial installations. This lead-free backflow preventer features OSY shutoff valves, a cubic feet per minute (CFM) metered bypass, and a flood sensor for enhanced monitoring.

Its ductile iron body is coated with ArmorTek®, a patented three-part advanced epoxy system, providing superior resistance to microbial-induced corrosion (MIC) and exposed metal substrate corrosion.

Features & Components

  • Ductile iron main valve body and relief valve body, coated with ArmorTek® for advanced corrosion protection.
  • Stainless steel relief valve seat and stainless steel check components ensure maximum performance and durability.
  • Inline serviceable assembly requires no special tools for maintenance.
  • Captured modular spring assembly with reversible and replaceable discs.
  • Includes OSY resilient wedge gate valves and field replaceable seats.
  • Clapper check assembly and captured O-ring design.
  • Auxiliary bypass line with a 5/8" x 3/4" water meter (CFM) to detect potential underground water leaks or unauthorized water usage.

Flood Sensor Technology

  • Equipped with a flood sensor featuring SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
  • Relays a signal that triggers a multichannel alert (call, email, text) to notify personnel of potential flooding.
  • An add-on connection kit is required to activate the flood sensor. Without the connection kit, the flood sensor is a passive component that does not communicate with any other device. Use of the flood sensor does not replace the need to comply with all required instructions, codes, and regulations related to installation, operation, and maintenance of this product. Watts® is not responsible for the failure of alerts due to connectivity issues, power outages, or improper installation.

Specifications

  • Model: LF886V-OSY-CFM-FS
  • Nominal Size: 10 inch
  • Assembly Type: Reduced Pressure Zone Detector Assembly (Type II)
  • Lead Free: Yes (Wetted surface contains < 0.25% lead)
  • Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® patented 3-part advanced epoxy system
  • Shutoff Valves: OSY Resilient Wedge Gate Valve AWWA C515
  • Check Components: Stainless Steel
  • Relief Valve Seat: Stainless Steel
  • Disc Holder: Stainless Steel
  • Elastomer Disc: Silicone
  • Spring Material: Stainless Steel
  • Clamp Material: AWWA C606

Performance

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 20 psi (1.4 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C) continuous
  • Auxiliary Bypass: 5/8" x 3/4" Water Meter (CFM)

Connections

  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
  • Test Cocks: Four resilient seated

Certificates & Approvals

  • Foundation for Cross-Connection Control and Hydraulic Research (FCCCHR-USC)
  • ASSE 1047
  • UL Classified (US & Canada)
  • FM Approved
  • IAPMO/CUPC
  • AWWA Standard C511 Compliant
  • CSA B64.4

FAQs

What type of applications is the FEBCO LF886V backflow preventer designed for?

This assembly is designed to protect potable drinking water systems from backpressure and backsiphonage conditions in high hazard/toxic applications, typically found in industrial installations.

Does this backflow preventer include a flood sensor, and how does it work?

Yes, it includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When an add-on connection kit is installed, the sensor relays a signal for multichannel alerts (call, email, text) to notify personnel of potential flooding.

What kind of corrosion protection does this backflow preventer have?

The ductile iron body and internal/external surfaces are coated with ArmorTek®, a patented three-part advanced epoxy system engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal substrate.

What is the maximum operating pressure and temperature range for this unit?

The maximum working pressure for this backflow preventer is 175 psi (12.1 bar), and it operates continuously within a temperature range of 33°F to 140°F (0.5°C to 60°C).

Is this assembly lead-free?

Yes, the FEBCO MasterSeries LF886V is lead-free, with the wetted surface of the product containing less than 0.25% of lead by weight, complying with low lead installation requirements.
