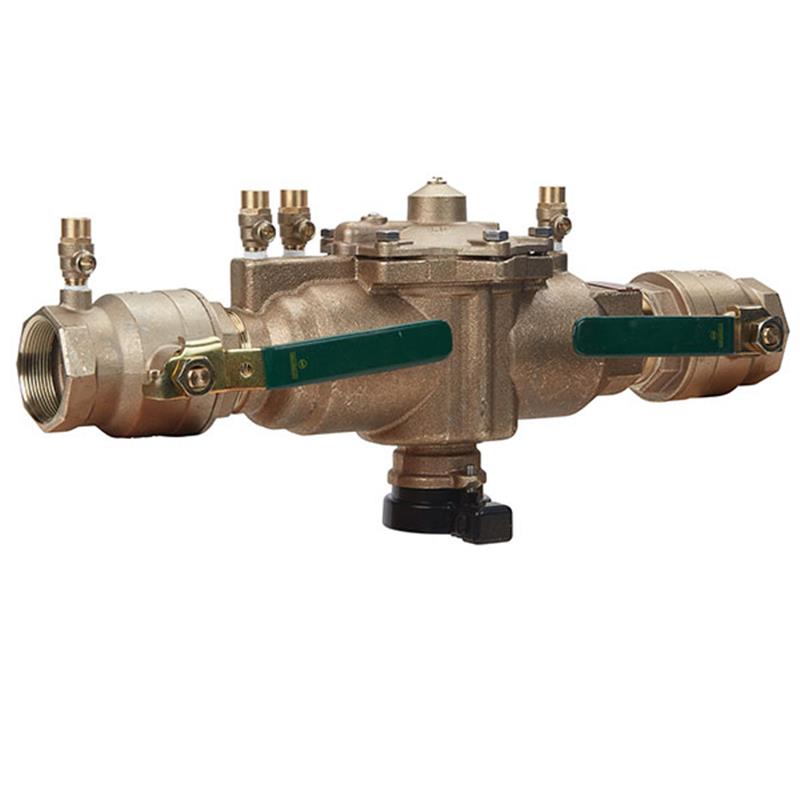

2 009M2-QT-FS

Item Number: 88004051
1 1
$1,998.14
Limited Stock (1)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Watts
  • Size: 2 inch
  • Weight: 28.9 lb
  • Body Material: Bronze
  • End Connections: NPT
  • Shutoff Valves: Quarter Turn Ball Valves with Lever Handles
  • Maximum Supply Pressure: 175 psi
  • Temperature Range: 33°F – 180°F
  • Flood Sensor: SentryPlus Alert® Technology
  • Certifications: ASSE 1013, AWWA C511-92, CSA B64.4

Description

The Watts 2 inch Series 009 Reduced Pressure Zone Assembly Backflow Preventer with a flood sensor is designed to protect potable water supplies from contamination caused by backsiphonage or backpressure in non-potable service applications. Constructed with a durable bronze body and NPT end connections, this assembly features quarter-turn ball valve shutoffs and an internal relief valve for reduced installation clearances. It includes a flood sensor with SentryPlus Alert technology to detect continuous relief valve discharge. The modular design with a single access cover ensures ease of maintenance and economical repair with replaceable seats. Item number 88004051.

Help Me Connect

Connections

  • The NPT inlet and outlet connections are designed to be threaded onto corresponding male NPT pipes.

Flood Sensor Activation

The integrated SentryPlus Alert® flood sensor is a passive component until an add-on connection kit (sold separately) is installed. This kit is required to activate the sensor's communication capabilities, allowing it to relay alerts for potential flooding events via BMS, cellular communication, or integration with a BAS system through RS-485 Modbus or the Nexa® platform through Wi-Fi.

View full details

Additional Details

The Watts® 2 inch Series 009 Reduced Pressure Zone Assembly Backflow Preventer is designed to protect potable water supplies from dangerous cross-connections due to backsiphonage and/or backpressure in non-potable service applications such as irrigation, fireline, or industrial processing.

This assembly features a compact, modular design for easy maintenance and includes a flood sensor with SentryPlus Alert® technology to detect continuous relief valve discharge.

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building, and plumbing codes.

Features

  • Features a flood sensor with SentryPlus Alert® technology to detect continuous discharge from the relief valve, offering advanced flood monitoring.
  • Add-on sensor connection kit (sold separately) extends flood monitoring and enables integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.
  • Bronze body construction ensures durability for long-lasting performance.
  • NPT inlet and outlet connections for standard plumbing systems.
  • Quarter-turn, full-port, resilient-seated ball valve shutoffs with lever handles provide reliable flow control.
  • Single access cover and modular check construction facilitate ease of maintenance and in-line repairs.
  • Internal relief valve design allows for reduced installation clearances.
  • Replaceable check and relief valve seats for economical repair and extended service life.
  • Large body passages provide low pressure drop.
  • Compact, space-saving design with top entry to all internals for immediate accessibility.
  • Captured springs for safe maintenance.
  • Two in-line, independent check valves and four resilient-seated test cocks are included.

Specifications

  • Brand: Watts
  • Product Type: Reduced Pressure Zone Assembly Backflow Preventer
  • Series: 009
  • Nominal Size: 2 inch
  • Body Material: Bronze
  • End Connections: NPT (Female)
  • Shutoff Valves: Quarter Turn, Full Port, Resilient Seated Ball Valves with Lever Handles
  • Maximum Supply Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F – 180°F (0.5°C – 75°C)
  • Check Valves: Two in-line, independent
  • Relief Valve: Internal pressure differential
  • Flood Sensor: SentryPlus Alert® Technology (requires add-on connection kit for activation)
  • Cover: Single access bronze cover with stainless steel bolts
  • Test Cocks: Four resilient-seated test cocks

Internal Components

  • Check Disc Material: Silicone Rubber
  • Check Seat Material: Polymer (replaceable)
  • Relief Valve Disc Material: Silicone Rubber
  • Relief Valve Seat Material: Removable
  • Springs: Captured

Dimensions & Weight (Approximate)

  • Overall Length (A): 21 3/8 in (543 mm)
  • Width (B): 8 3/4 in (222 mm)
  • Height (C): 4 1/2 in (114 mm)
  • Distance from bottom to center of pipe (D): 4 1/4 in (108 mm)
  • Length (L): 13 1/2 in (343 mm)
  • Strainer Height (M): 5 15/16 in (151 mm)
  • Strainer Width (N): 5 in (127 mm)
  • Weight: 30 lb (13 kg)

Certificates & Approvals

  • USC
  • ASSE No. 1013
  • AWWA C511-92
  • CSA B64.4
  • IAPMO File No. 1563
  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California

FAQs

What is the primary purpose of the Watts Series 009 Reduced Pressure Zone Assembly?

Its primary purpose is to protect potable water supplies from contamination due to backsiphonage or backpressure in non-potable service applications, such as irrigation systems, firelines, or industrial processing.

Does this backflow preventer come with a flood sensor?

Yes, this assembly includes a flood sensor with SentryPlus Alert® technology, designed to detect continuous water discharge from the relief valve. An add-on connection kit (sold separately) is required to activate its communication features.

What type of connections does this assembly have?

This 2 inch Series 009 assembly is furnished standard with NPT (National Pipe Taper) inlet and outlet connections for secure threaded installation into plumbing systems.

What materials are used in the construction of this backflow preventer?

The body is constructed from durable bronze. Internal components include silicone rubber discs for the checks and relief valve, replaceable polymer check seats, and stainless steel cover bolts.

What are the maximum operating pressure and temperature ratings for this device?

This backflow preventer is suitable for supply pressures up to 175 psi (12.1 bar) and water temperatures ranging from 33°F to 180°F (0.5°C to 75°C).
