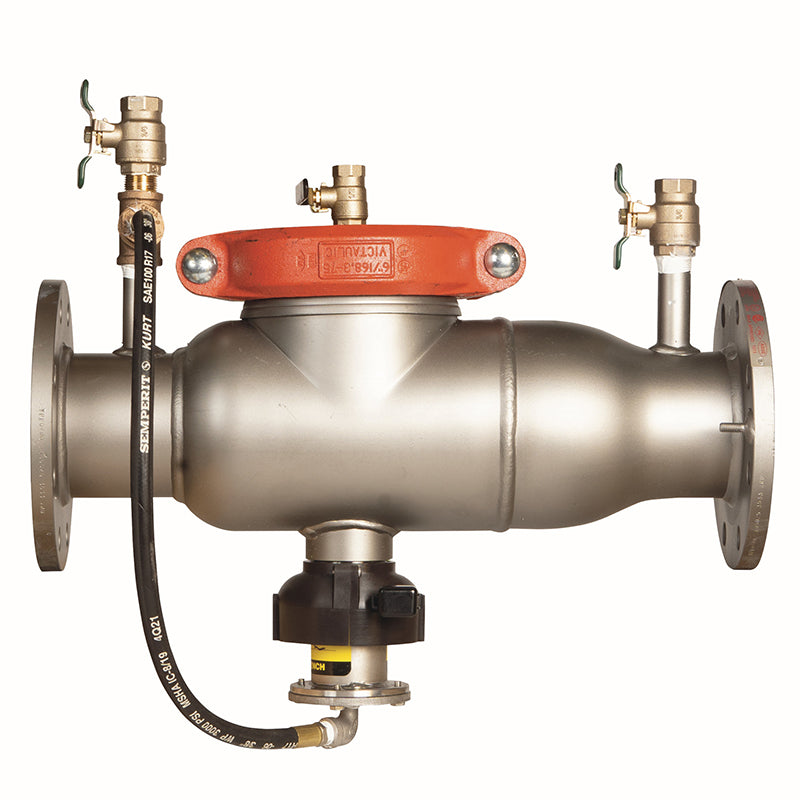

This 2 1/2 inch lead free reduced pressure zone (RPZ) assembly backflow preventer is designed to prevent the reverse flow of liquids due to backpressure or backsiphonage, particularly where a potential health hazard exists.
Its compact, modular design facilitates easy maintenance with a single access cover for in-line repairs. This assembly features a short lay length stainless steel body, test cocks, a corrosive-resistant stainless steel bottom-mounted relief valve, and torsion spring check valves.
Flood Sensor Technology
- Includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
- When activated through an add-on sensor connection kit, the flood sensor relays a signal that triggers notification of potential flooding to service personnel.
- The add-on sensor connection kit is available for building management systems and cellular communication.
Warning: Without an add-on connection kit, the flood sensor is a passive component that does not communicate with any other device.
Key Features
-
Stainless steel body provides long term corrosion resistance and maximum strength.
-
Stainless steel body is half the weight of competitive designs, reducing installation and shipping costs.
- Short end-to-end dimensions make retrofit easy.
- Bottom mounted relief valve reduces clearance requirements when installed against an outside wall.
-
Torsion spring check valves provide maximum flow at low pressure drop.
- No special tools required for servicing.
- Compact construction allows for smaller enclosures.
- Sensor on relief valve for flood detection.
- Assembled without shutoff valves.
- Designed for health hazard applications.
