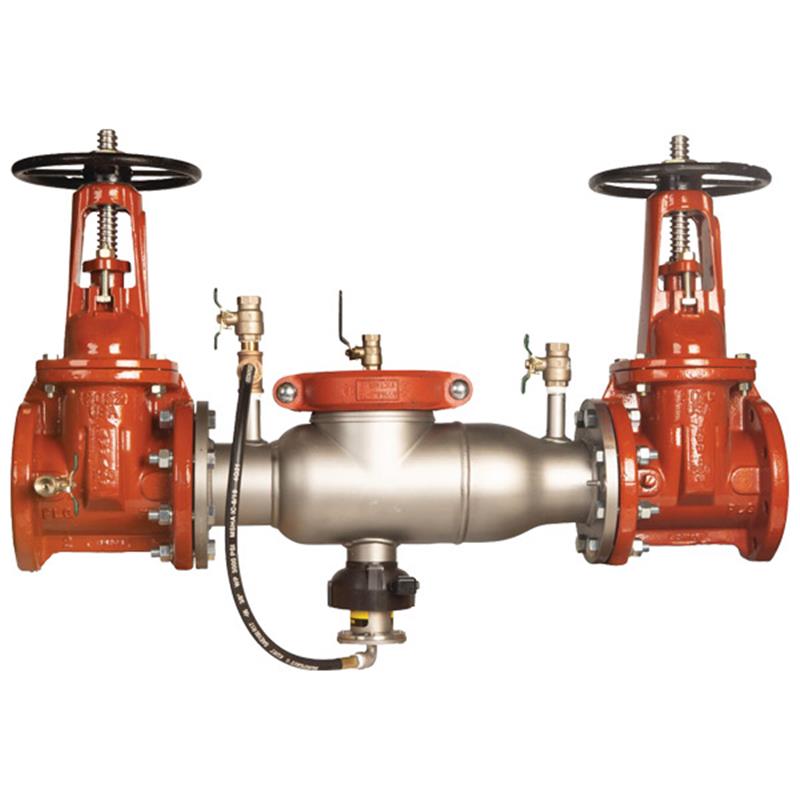

2.5 4000SS-DOSY-FS

Item Number: F0692724
1 1
$6,902.51
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Assembly Size: 2 1/2 inch
  • Weight: 243.0 lb
  • Body Material: 300 Series Stainless Steel
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F - 110°F
  • Flood Sensor with SentryPlus Alert Technology
  • Lightweight Stainless Steel Body
  • Domestic OSY Resilient Seated Gate Valves
  • Approved: ASSE 1013, CSA B64.5, UL Classified, FM Approved

Description

The Ames Fire & Waterworks 2.5 inch 4000SS-DOSY-FS Reduced Pressure Zone backflow preventer prevents hazardous backflow into potable water systems. Its 300 Series stainless steel construction offers corrosion resistance and is half the weight of traditional designs, simplifying installation. This model includes a SentryPlus Alert flood sensor, detecting relief valve discharge to prevent costly water damage. It features domestic OSY resilient seated gate valves, cam-check valves for maximum flow, and a balanced rolling diaphragm relief valve for low maintenance. Rated for 175 PSI and 33-110°F, it is ASSE 1013, CSA B64.5, UL Classified, and FM Approved.

Help Me Connect

Flood Sensor Activation & Monitoring

This 2 1/2 inch 4000SS-DOSY-FS backflow preventer includes a flood sensor designed to detect excessive water discharge. To activate and enable flood monitoring, an add-on sensor connection kit is required (sold separately). Once connected, the sensor can integrate with various systems:

  • Building Automation Systems (BAS): Alerts delivered via RS-485 Modbus.
  • Nexa Platform: Alerts delivered via Wi-Fi connectivity using the Sensor Control Monitor.
  • Cellular Communication: Possible with compatible connection kits.

Without an add-on connection kit, the flood sensor acts as a passive component and does not communicate with other devices.

View full details

Additional Details

The Ames Fire & Waterworks Series 4000SS Reduced Pressure Zone (RPZ) backflow preventer assembly is designed to prevent the reverse flow of contaminated water into the potable water supply due to backsiphonage or backpressure. This 2 1/2 inch stainless steel assembly is ideal for health hazard cross-connection applications and protection from contaminants at the service line entrance.

The 4000SS-DOSY-FS model includes a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve. When paired with an add-on connection kit, the sensor activates to relay alerts for potential flooding events.

Construction & Design

  • Features a lightweight stainless steel body, approximately half the weight of competitive designs, reducing installation and shipping costs.
  • Equipped with domestic outside stem and yoke (OSY) resilient seated gate valves.
  • Includes spring loaded cam-check valves providing maximum flow at low pressure drop.
  • A pressure differential relief valve with a balanced rolling diaphragm eliminates sliding seals and lowers maintenance costs.
  • Compact construction and short end-to-end dimensions allow for easier retrofitting and installation in smaller enclosures.
  • Single access cover for all internal parts.

Flood Sensor Features

  • Flood sensor with SentryPlus Alert technology detects continuous discharge from the relief valve.
  • An add-on sensor connection kit is required to activate the flood sensor and extend monitoring.
  • Integrates with the Sensor Control Monitor to deliver maintenance alerts to Building Automation Systems (BAS) via RS-485 Modbus or the Nexa platform by Wi-Fi connectivity.
NOTICE: Use of the flood sensor does not replace the need to comply with all required instructions, codes, and regulations related to installation, operation, and maintenance of this product, including the need to provide proper drainage in the event of a discharge. Always read all installation instructions and product safety information thoroughly before beginning installation.

Specifications

  • Assembly Size: 2 1/2 inch
  • Body Material: 300 Series Stainless Steel
  • Internal Metal Parts: 300 Series Stainless Steel
  • Check Assembly Material: Noryl®
  • Temperature Range: 33°F - 110°F (0.5°C – 43°C)
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Flange Dimension: AWWA Class D
  • Lead Free: Yes (wetted surface contains less than 0.25% lead by weight)

Certificates & Approvals

  • Standards: AWWA C511-92
  • ASSE: 1013
  • CSA: B64.5
  • UL Classified: OSY only
  • FM Approved: OSY only

FAQs

What is the primary function of the Ames Fire & Waterworks 4000SS-DOSY-FS backflow preventer?

Its primary function is to prevent the reverse flow of contaminated or non-potable water from entering the potable water supply due to backsiphonage or backpressure, protecting against health hazards at cross-connections.

What does the flood sensor feature do?

The integrated flood sensor with SentryPlus Alert technology detects excessive water discharges from the relief valve. When activated with an add-on connection kit, it relays alerts to notify personnel of potential flooding events, helping to limit damage.

Is this backflow preventer easy to install?

Yes, it features a lightweight stainless steel body, approximately half the weight of competitive designs, which reduces installation effort and shipping costs. Its compact construction and short end-to-end dimensions also simplify retrofitting.

What materials are used in the construction of this backflow preventer?

The main valve body and all internal metal parts are made from 300 Series stainless steel for corrosion resistance and strength. The check assembly uses Noryl® material.

What certifications and approvals does this model hold?

This 4000SS-DOSY-FS assembly is approved by ASSE 1013, CSA B64.5, UL Classified (for OSY only), and FM Approved (for OSY only). It also complies with AWWA C511-92 standards.
