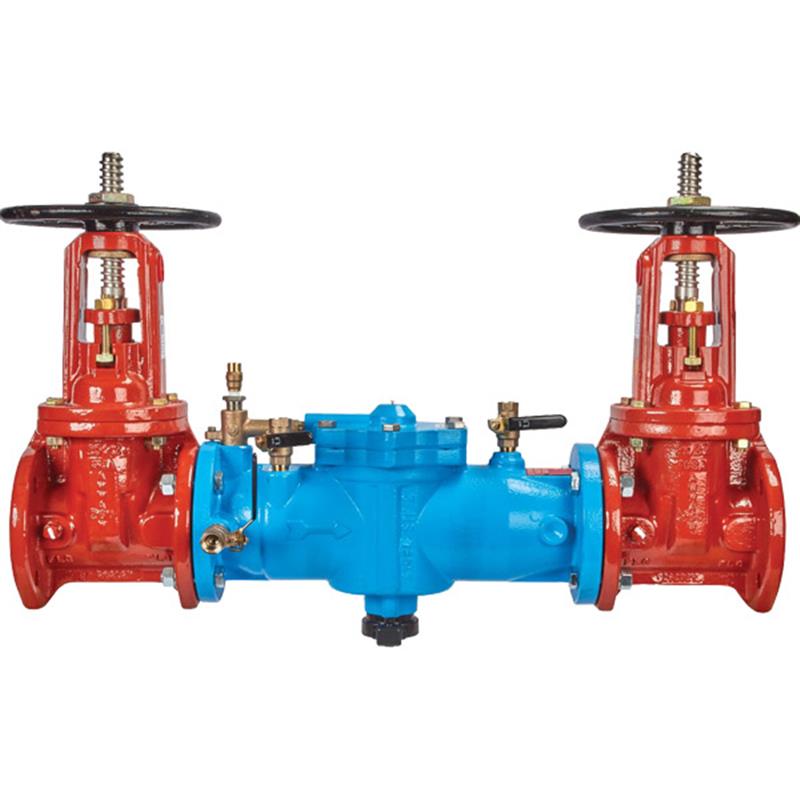

2.5 LF009-DOSY-FS

Item Number: F792156
1 1
$9,416.41
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 2 1/2 inch
  • Body Material: Cast Iron with ArmorTek® Coating
  • Valve Type: UL/FM OSY Resilient Seated Gate Valves
  • Features Flood Sensor with SentryPlus Alert® Technology
  • Maximum Operating Pressure: 175 PSI
  • Lead Free* Construction (<0.25% lead content)
  • Modular Check Construction for Easy Maintenance
  • Prevents Backsiphonage and Backpressure

Description

The Watts 2 1/2 inch Lead Free Reduced Pressure Zone (RPZ) Backflow Preventer Assembly (LF009-DOSY-FS) is engineered to safeguard potable water from pollution due to backsiphonage and backpressure. Featuring a durable cast iron body with advanced ArmorTek® epoxy coating for superior corrosion resistance, it ensures long-term reliability. This assembly includes UL and FM Approved OSY gate valves and a SentryPlus Alert® flood sensor to detect relief valve discharge, offering enhanced protection and monitoring. Its design incorporates an internal relief valve and modular checks for reduced installation clearances and simplified maintenance. Item number F792156.
View full details

Additional Details

This 2 1/2 inch Lead Free Reduced Pressure Zone (RPZ) backflow preventer assembly is designed to prevent polluted water from entering potable water supplies due to backsiphonage and/or backpressure. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards.

Construction & Materials

  • Features a cast iron body with a patented ArmorTek® 3-part advanced epoxy coating system, engineered to resist both microbial induced corrosion (MIC) and exposed metal substrate corrosion.
  • Equipped with UL and FM Approved domestic Outside Stem and Yoke (OSY) resilient seated gate valves for reliable shutoff.
  • Includes two in-line independent check valves, captured springs, and replaceable check seats for ease of maintenance.
  • An internal relief valve is integrated for reduced space requirements and installation clearances.
  • Lead Free* construction complies with current installation requirements, containing less than 0.25% lead by weight on wetted surfaces.

Advanced Features

  • Includes a flood sensor with SentryPlus Alert® technology to detect continuous or excessive water discharges from the relief valve.
  • When paired with an add-on connection kit, the sensor activates to relay alerts for potential flooding events via BMS (Building Management System), cellular communication, or the Nexa® platform through Wi-Fi connectivity.
  • Large body passages provide a low pressure drop.
  • Test cocks are screwdriver slotted for convenient operation.
  • Features a single access cover and modular check construction for simplified maintenance and top entry to all internals for immediate accessibility.

The information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer. You are required to thoroughly read all installation instructions and product safety information before beginning the installation of this product.

Specifications

  • Series: LF009
  • Model: LF009OSY
  • Size: 2 1/2 inch
  • Body Material: Cast Iron
  • Coating: ArmorTek® Advanced Epoxy System
  • Shutoff Valves: UL Classified and FM Approved Outside Stem and Yoke (OSY) Resilient Seated Gate Valves
  • Test Cocks: Screwdriver Slotted Ball Valves
  • Flood Sensor: Yes, with SentryPlus Alert® Technology
  • Maximum Operating Pressure: 175 PSI (12.1 bar)
  • Water Temperature (Continuous): 33°F - 110°F (0.5° - 43°C)
  • Water Temperature (Intermittent): Up to 140°F (60°C)
  • Lead Content: Less than 0.25% on wetted surfaces

Certifications & Approvals

  • USC
  • ASSE Std. 1013
  • AWWA C511
  • CSA B64.4
  • IAPMO File No. 1563
  • UL Classified
  • FM Approved
  • USC-FCCCHR

FAQs

What is the primary function of the Watts LF009-DOSY-FS backflow preventer?

The primary function is to protect potable water supplies by preventing the flow of polluted water from re-entering due to backsiphonage or backpressure. It is used in continuous pressure piping applications and health hazard cross-connections.

What does the SentryPlus Alert® flood sensor do?

The flood sensor detects continuous or excessive water discharges from the relief valve. When activated with an add-on connection kit, it can relay alerts to facility personnel or management systems, helping prevent potential flooding and costly damage.

What type of shutoff valves are included with this assembly?

This assembly comes with UL and FM Approved domestic Outside Stem and Yoke (OSY) resilient seated gate valves. These valves provide reliable isolation and are easily identifiable as open or closed.

What is ArmorTek® coating and why is it important?

ArmorTek® is a patented 3-part advanced epoxy coating system applied to the cast iron body and internal components. It is engineered to resist both microbial induced corrosion (MIC) and general exposed metal substrate corrosion, enhancing the longevity and durability of the backflow preventer.

What are the maximum operating pressure and temperature ratings for this unit?

The Watts LF009-DOSY-FS is suitable for supply pressures up to 175 PSI (12.1 bar). It can handle continuous water temperatures from 33°F to 110°F (0.5° to 43°C), with intermittent temperatures up to 140°F (60°C).
