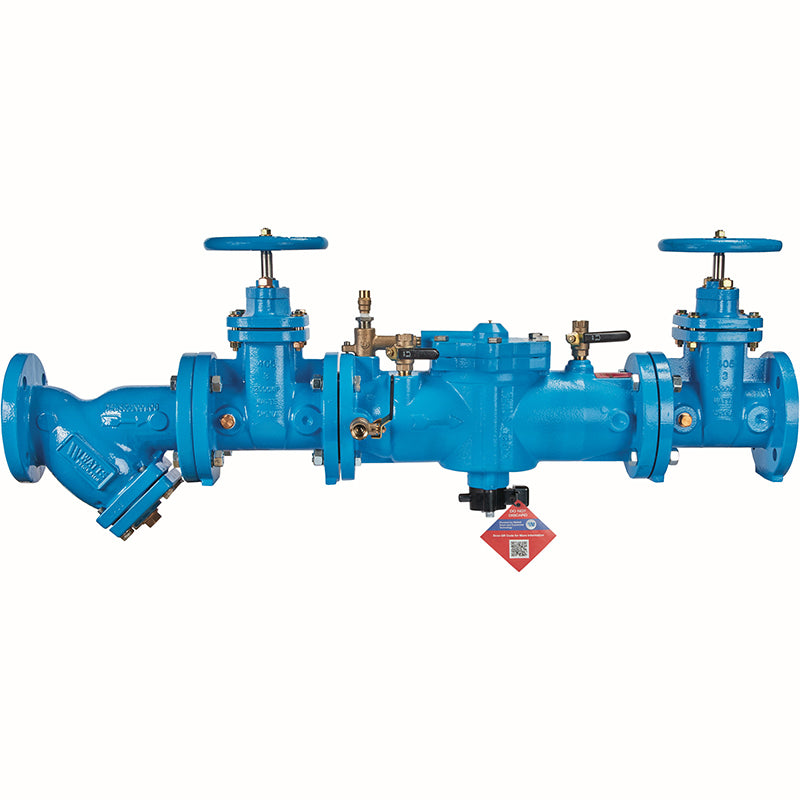

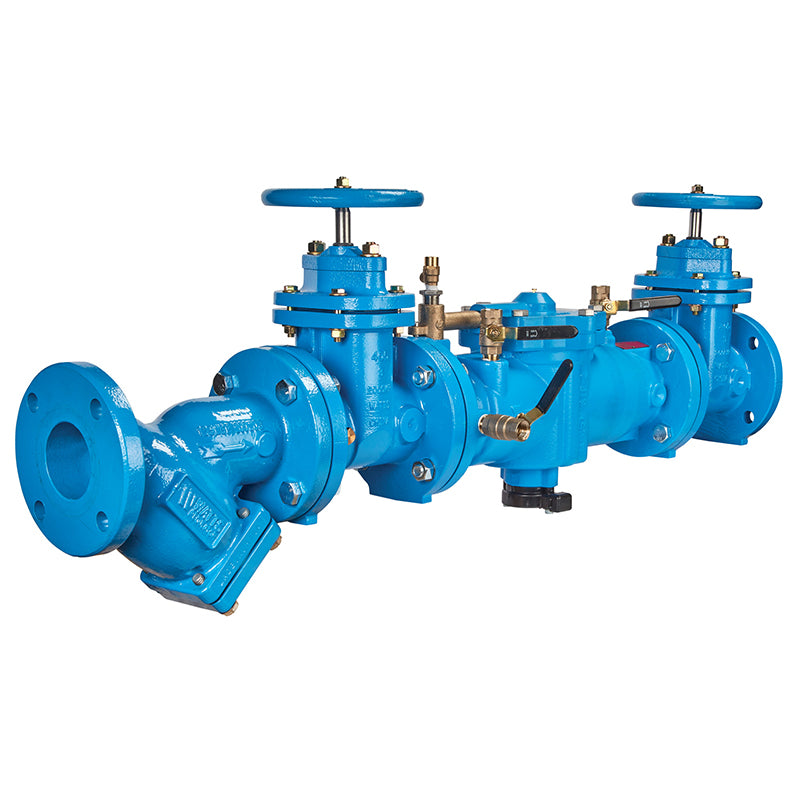

2.5 LF009-NRS-S-FDA-FS

Item Number: F122646
1 2
$9,460.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 2 1/2 inch
  • Body Material: Cast Iron with ArmorTek® Coating
  • Flood Sensor: SentryPlus Alert® Technology
  • Strainer: FDA Epoxy Coated
  • Shutoff Valves: Non-Rising Stem Resilient Seated Gate
  • Lead Free: Yes (less than 0.25% lead by weight)
  • Max Pressure: 175 PSI
  • Easy Maintenance: Single access cover and modular checks

Description

The Watts Series LF009 2 1/2 inch Lead Free Reduced Pressure Zone Backflow Preventer Assembly with non-rising stem gate valves protects potable water from contamination due to backsiphonage or backpressure. Its cast iron body features ArmorTek® coating for superior corrosion resistance, including protection against microbial-induced corrosion. An integrated SentryPlus Alert® flood sensor detects excessive water discharge, offering early warning when paired with a connection kit. This assembly includes an FDA epoxy coated strainer, two independent check valves, and an internal relief valve. Designed for easy maintenance with a single access cover and replaceable seats, this unit ensures compliance with Lead Free* requirements and reliable performance up to 175 PSI. Item number F122646.

Help Me Connect

Connections

  • This 2 1/2 inch backflow preventer features flanged body connections for robust and secure installation into your piping system.

Flood Sensor Integration

The integrated flood sensor requires an add-on connection kit (sold separately) to activate its alert features. These kits facilitate integration with:

  • Building Management Systems (BMS)
  • Cellular communication
  • The Sensor Control Monitor for RS-485 Modbus or Nexa® platform via Wi-Fi
View full details

Additional Details

This 2 1/2 inch Watts Series LF009 Lead Free Reduced Pressure Zone Backflow Preventer Assembly is designed to protect potable water supplies from pollution caused by backsiphonage and/or backpressure in continuous pressure piping applications and at health hazard cross-connections.

The assembly features a durable cast iron body with ArmorTek® coating, a flood sensor with SentryPlus Alert® technology, and an FDA epoxy coated strainer, making it suitable for a variety of installations including irrigation systems and boiler feed lines.

Construction & Materials

  • Lead Free* construction ensures the wetted surface contains less than 0.25% lead by weight, complying with current regulations.
  • Features a robust cast iron body, coated with ArmorTek®, a patented three-part advanced epoxy system designed to resist both microbial-induced corrosion (MIC) and general exposed metal substrate corrosion.
  • Includes two in-line, independent check valves with captured springs and replaceable check seats for reliable performance.
  • An internal relief valve is integrated for reduced space requirements and enhanced operational efficiency.
  • Equipped with non-rising stem resilient seated gate valves for secure shutoff and top mounted test cocks.
  • An FDA epoxy coated strainer is included to protect internal components from debris.

Flood Sensor Technology

  • Integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve, providing early warning for potential flooding.
  • When paired with an add-on sensor connection kit (sold separately), the sensor is activated to relay alerts to facility personnel.
  • Alerts can integrate with Building Management Systems (BMS), cellular communication, or the Nexa® platform via Wi-Fi for comprehensive monitoring.

Ease of Maintenance

  • Single access cover and modular check construction facilitate easier maintenance.
  • Top entry to all internal components allows for immediate accessibility.
  • Captured springs ensure safety during maintenance procedures.
  • Replaceable seats allow for economical repair without requiring special tools.

Specifications

General

  • Product Type: Reduced Pressure Zone Backflow Preventer
  • Series: LF009
  • Size: 2 1/2 inch
  • Body Material: Cast Iron with ArmorTek® Coating
  • Strainer: FDA Epoxy Coated
  • Shutoff Valves: Non-Rising Stem Resilient Seated Gate Valves
  • Lead Free: Yes (Wetted surface contains less than 0.25% lead)
  • Flood Sensor: Yes, SentryPlus Alert® Technology

Performance

  • Maximum Supply Pressure: 175 PSI (12.1 bar)
  • Maximum Continuous Water Temperature: 110°F (43°C)
  • Maximum Intermittent Water Temperature: 140°F (60°C)

Certificates & Approvals

  • USC
  • ASSE No. 1013
  • AWWA C511
  • CSA B64.4
  • IAPMO File No. 1563
  • NSF/ANSI/CAN 61-G

FAQs

What is the primary function of the Watts LF009 Reduced Pressure Zone Backflow Preventer?

Its primary function is to prevent polluted water from flowing back into the potable water supply due to backsiphonage or backpressure, protecting the drinking water system from contamination.

What is ArmorTek® coating and what are its benefits?

ArmorTek® is a patented three-part advanced epoxy coating system applied to the cast iron body. It is engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal surfaces, extending the lifespan and reliability of the backflow preventer.

How does the SentryPlus Alert® flood sensor work?

The SentryPlus Alert® flood sensor detects excessive water discharges from the relief valve. When connected with an optional add-on connection kit, it can relay alerts via BMS, cellular communication, or Wi-Fi to facility personnel, helping to prevent costly water damage.

What type of shutoff valves does this model include?

This specific LF009-NRS model is equipped with non-rising stem resilient seated gate valves, which provide secure and reliable isolation for maintenance or system control.

Is this backflow preventer compliant with lead-free regulations?

Yes, this Watts Series LF009 assembly is constructed with Lead Free* materials, meaning the wetted surfaces that contact consumable water contain less than 0.25% lead by weight, complying with current lead-free installation requirements.
