Bypass Meter: Gallons Per Minute (GPM) water meter
Shutoff Valves: OSY resilient wedge gate valves
Max. Working Pressure: 175 PSI
Temperature Range: 33°F - 140°F
Description

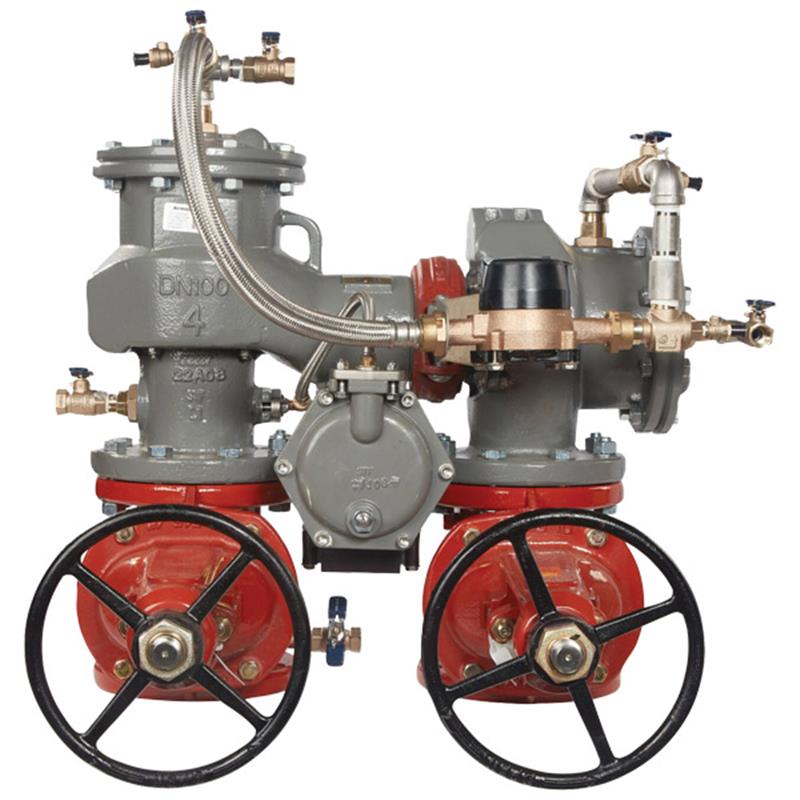

The FEBCO 2.5 inch LF886V Reduced Pressure Zone Detector Backflow Preventer Assembly provides crucial protection against backpressure and backsiphonage in high hazard, toxic potable water applications. Its robust ductile iron body features ArmorTek® advanced epoxy coating for superior corrosion resistance, including protection against microbial-induced corrosion. This lead-free assembly includes OSY shutoff valves, a metered bypass for detecting leaks, and an integrated flood sensor with SentryPlus Alert® technology to detect relief valve discharge. The flood sensor can provide multichannel alerts when activated with an add-on connection kit, ensuring rapid response to potential flooding. Item number F683222.
Help Me Connect
Flood Sensor Connection
The integrated flood sensor is designed to detect excessive water discharges from the relief valve.
To activate the sensor and enable multichannel alerts (call, email, text), an add-on connection kit is required.
Connection kit options include direct BMS integration, cellular communication, or the Sensor Control Monitor for Wi-Fi connectivity via the Nexa® platform or BAS integration via RS-485 Modbus.
Without this connection kit, the flood sensor remains a passive component and will not communicate alerts.
The 2.5 inch FEBCO MasterSeries® LF886V Reduced Pressure Zone Detector Backflow Preventer Assembly is designed to protect potable drinking water systems from backpressure and backsiphonage in high hazard/toxic applications.
This assembly comes with OSY shutoff valves, a gallons per minute (GPM) metered bypass, and features a flood sensor for enhanced monitoring.
Corrosion Protection
The iron components, including the main valve body and relief valve body, are coated with ArmorTek®, a patented three-part advanced epoxy system.
This coating is engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal substrates, ensuring extended product life and dependability.
Flood Detection and Alerting
Equipped with a SentryPlus Alert® flood sensor on the relief valve, designed to detect excessive water discharges.
When paired with an add-on connection kit, the sensor can relay a signal to trigger a multichannel alert (call, email, text) to notify personnel of potential flooding.
Important: An add-on connection kit is required to activate the flood sensor. Without the connection kit, the flood sensor is a passive component that does not communicate with any other device. The flood sensor does not replace the need to comply with all required instructions, codes, and regulations related to installation, operation, and maintenance of this product, including the need to provide proper drainage in the event of a discharge. Watts® is not responsible for the failure of alerts due to connectivity issues, power outages, or improper installation.
Main Valve Features
Features stainless steel relief valve seat and stainless steel check components for maximum performance and durability.
Designed as an inline serviceable assembly, requiring no special tools for maintenance.
Includes a captured modular spring assembly, reversible and replaceable discs, and field replaceable seats.
The valve body is constructed from ductile iron.
Utilizes a modular and repairable pressure differential relief valve and a clapper check assembly with a captured O-ring design.
Auxiliary Bypass System
A compact design that remains within the main valve assembly profile.
Includes an inline serviceable 3/4 inch check assembly with field replaceable seat and disc.
Designed to detect potential underground water leaks and unauthorized water usage.
Equipped with a gallons per minute (GPM) water meter.
Specifications
Product Type: Reduced Pressure Zone Detector Backflow Preventer Assembly
Series: LF886V MasterSeries®
Nominal Size: 2.5 inch
Operating Pattern: Standard (N-pattern)
Shutoff Valves: OSY Resilient Wedge Gate Valves
Bypass Meter: 5/8 inch x 3/4 inch Water Meter (GPM)
Materials
Main Valve Body: Ductile Iron Grade 65-45-12
Relief Valve Body: Ductile Iron Grade 65-45-12
Coating: ArmorTek Powder Coating
Check Seats: Stainless Steel
Relief Valve Seat: Stainless Steel
Disc Holder: Stainless Steel
Elastomer Disc: Silicone
Spring: Stainless Steel
Clamp: AWWA C606
Performance Ratings
Max. Working Pressure: 175 PSI (12.1 bar)
Min. Working Pressure: 20 PSI (1.4 bar)
Hydrostatic Test Pressure: 350 PSI (24.1 bar)
Hydrostatic Safety Pressure: 700 PSI (48.3 bar)
Temperature Range: 33°F - 140°F (0.5°C ~ 60°C) continuous
Lead Content: Wetted surface contains less than 0.25% lead by weight
Certificates & Approvals
Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
ASSE 1047
UL Classified (US & Canada)
FM Approved
IAPMO/CUPC
AWWA Standard C511 Compliant
CSA B64.4
End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
FAQs
What is the primary function of the FEBCO LF886V Reduced Pressure Zone Detector Assembly?
Its primary function is to protect potable drinking water systems from contamination due to backpressure and backsiphonage conditions in high hazard/toxic applications, ensuring water safety.
How does the ArmorTek® coating benefit this backflow preventer?
The ArmorTek® coating is a patented three-part advanced epoxy system applied to the iron components. It significantly reduces microbial-induced corrosion (MIC) and protects exposed metal, extending the lifespan and reliability of the assembly.
What is the purpose of the flood sensor, and how is it activated?
The flood sensor detects excessive water discharges from the relief valve, signaling potential flooding. To activate its alerting capabilities (call, email, text), an add-on connection kit is required, which can integrate with BMS, cellular networks, or Wi-Fi platforms.
What are the main features of the auxiliary bypass system on this assembly?
The auxiliary bypass system is compact and includes an inline serviceable 3/4 inch check assembly with a GPM water meter. It is designed to detect potential underground water leaks and unauthorized water usage.
What is the maximum operating pressure and temperature range for this LF886V assembly?
This assembly has a maximum working pressure of 175 PSI (12.1 bar) and operates continuously within a temperature range of 33°F to 140°F (0.5°C to 60°C).
