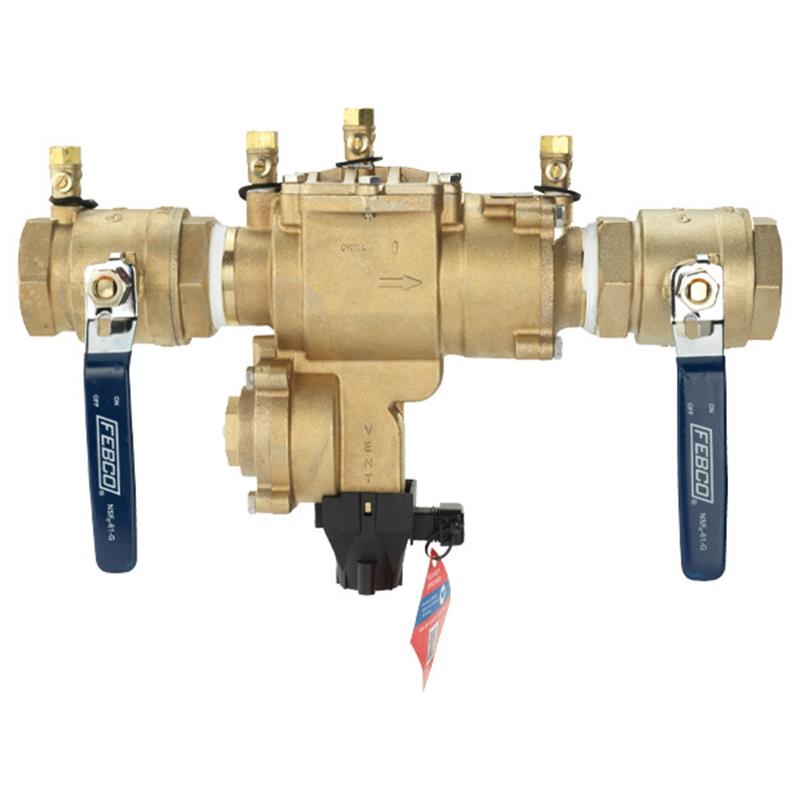

2 860-QT-RP-FS

Item Number: F1316
1 1
$1,759.56
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Valve Size: 2 inch
  • Body Material: Bronze
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 32°F to 140°F
  • Flood sensor with SentryPlus Alert® technology
  • Quarter turn shutoff ball valves
  • Modular relief valve and check valves for easy maintenance
  • Approved to CSA B64.4 and ANSI/AWWA C511 standards

Description

The FEBCO 2 inch Series 860 Reduced Pressure Zone Backflow Preventer Assembly with quarter turn shutoff valves offers robust protection against high hazard fluid contamination. Its bronze body and NPT threaded connections ensure durability and easy installation in industrial, medical, and irrigation systems. Featuring an integrated SentryPlus Alert® flood sensor, it detects excessive relief valve discharge and can integrate with BMS or Nexa® for alerts. Rated for 175 psi working pressure and temperatures from 32°F to 140°F, this assembly meets ANSI/AWWA C511 and CSA B64.4 standards, providing reliable, approved backflow prevention. Item number F1316.

Help Me Connect

Connections

  • This backflow preventer assembly features NPT (National Pipe Taper) threaded end connections, allowing for secure attachment to corresponding threaded pipe systems.
  • The integral flood sensor can be connected to an add-on sensor connection kit for enhanced monitoring, offering compatibility with BMS (Building Management Systems), cellular communication, or the Sensor Control Monitor for integration with RS-485 Modbus or Nexa® platform Wi-Fi.

Installation Considerations

  • A minimum of 12 inches clearance to a fixed structure is required for proper installation and access.
  • Ensure the air gap drain line terminates above a floor drain designed to handle normal discharge and nuisance spitting. The floor drain size may need to be adequate to prevent water damage from catastrophic failure conditions; do not reduce the size of the drain line from the air gap fitting.
View full details

Additional Details

The FEBCO Series 860 2 inch Reduced Pressure Zone Backflow Preventer Assembly with quarter turn shutoff valves is designed to prevent the reverse flow of high hazard (toxic) fluids from entering potable water supply systems due to backsiphonage or backpressure. It is commonly used in water services for industrial plants, hospitals, morgues, mortuaries, chemical plants, irrigation systems, boiler feed, and other installations requiring maximum protection.

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or showering, in the United States. Before installing standard material product, consult your local water authority, building and plumbing codes.

Features

  • Equipped with a flood sensor with SentryPlus Alert® technology to detect continuous discharge from the relief valve.
  • Supports add-on sensor connection kits to extend flood monitoring capabilities.
  • Can integrate with the Sensor Control Monitor to deliver maintenance alerts to Building Management Systems (BMS) via RS-485 Modbus or the Nexa® platform through Wi-Fi connectivity.
  • Features a durable bronze body with top entry access for simplified maintenance.
  • Designed with modular relief valve and check valves for easy servicing.
  • Includes threaded quarter turn ball valves for shutoff.
  • Consists of top mounted test cocks, spring loaded check valves, and a pressure differential relief valve.

Specifications

General

  • Product Type: Reduced Pressure Zone Backflow Preventer
  • Series: 860 Small
  • Valve Size: 2 inch
  • End Connections: NPT
  • Shutoff Valves: Quarter Turn Ball Valves
  • Sensor Technology: SentryPlus Alert® Flood Sensor

Performance

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)

Materials

  • Valve Body: Bronze
  • Elastomers: Silicone
  • Springs: Stainless Steel
  • Seat: Noryl®
  • Disc: Noryl®

Dimensions & Weight

  • A Dimension (Overall Length): 17 ¾ in (451 mm)
  • B Dimension (Centerline to Top of Test Cocks): 10 in (254 mm)
  • C Dimension (Centerline to Relief Valve Drain): 7 ½ in (191 mm)
  • D Dimension (Height from Bottom of Relief Valve to Centerline): 4 ¾ in (121 mm)
  • E Dimension (Width of Valve Body): 9 ¾ in (248 mm)
  • Weight: 74.0 lb (33.6 kg)

Certificates & Approvals

  • ANSI/AWWA Conformance: C511
  • Approved by: Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California
  • Certification: CSA B64.4

FAQs

What is the primary use of the FEBCO 860-QT-RP-FS backflow preventer?

This 2 inch reduced pressure zone assembly is designed to prevent the reverse flow of high hazard (toxic) fluids into potable water supplies due to backsiphonage or backpressure, ensuring water safety in critical applications.

Does this backflow preventer come with shutoff valves?

Yes, the FEBCO 860-QT-RP-FS assembly includes integral quarter turn ball valves for convenient shutoff, simplifying isolation for maintenance or testing.

What kind of flood detection capabilities does this model have?

It features a SentryPlus Alert® flood sensor that detects excessive water discharge from the relief valve. When paired with an add-on connection kit, it can relay alerts via BMS, cellular communication, or Wi-Fi.

What are the working pressure and temperature limits for this device?

The assembly is rated for a maximum working pressure of 175 psi (12.1 bar) and operates within a temperature range of 32°F to 140°F (0°C to 60°C).

Is this product approved for use in the United States?

While this backflow preventer is designed for high hazard applications, it is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or showering, in the United States. Always consult local water authorities and plumbing codes before installation.
