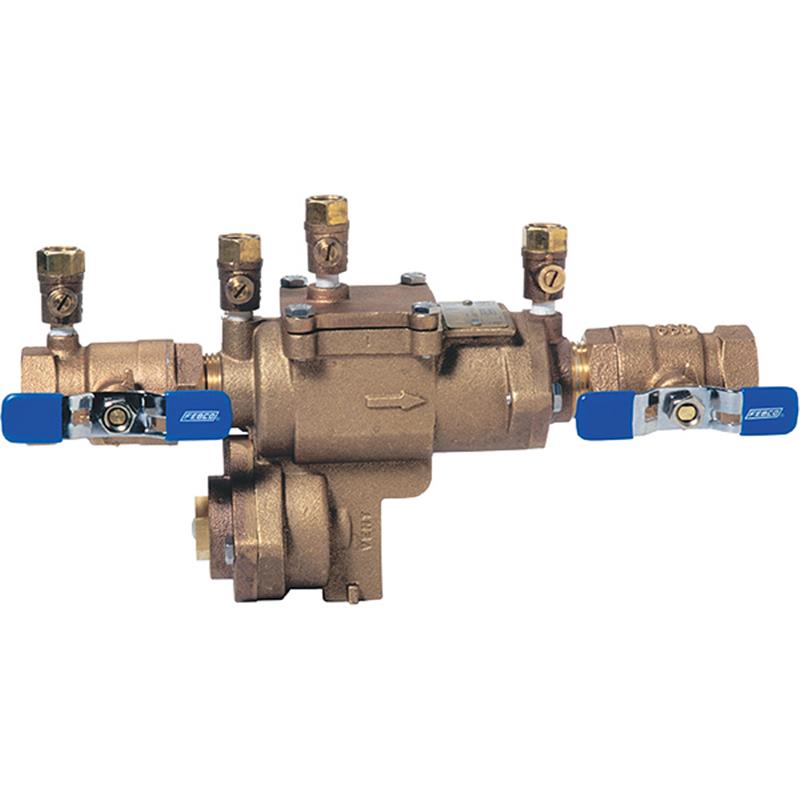

2 860U-QT RP

Item Number: 2816
1 1
$2,132.26
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 2 inch
  • Weight: 28.6 lb
  • Body Material: Bronze
  • Max. Working Pressure: 175 psi
  • Temperature Range: 32°F to 140°F
  • End Connections: Threaded NPT with Union Ball Valves
  • Features flood detection sensor
  • Replaceable seats and discs
  • Approved to ANSI/AWWA C511, ASSE 1013, CSA B64.4

Description

The FEBCO Series 860 is a 2-inch bronze Reduced Pressure Zone Backflow Preventer Assembly, engineered to safeguard potable water supplies from dangerous cross-connections. It prevents reverse flow of toxic fluids due to backsiphonage or backpressure, suitable for industrial plants, hospitals, and irrigation systems. This assembly features a durable bronze body, union end quarter-turn ball valves, and replaceable seats/discs for easy maintenance. It operates up to 175 psi and includes a flood sensor to detect excessive water discharge, enhancing facility protection. Note: This product is not for plumbing systems providing water for human consumption in the US.

Help Me Connect

Connections

  • This 2 inch Reduced Pressure Zone Assembly features threaded NPT (National Pipe Taper) end connections in accordance with ANSI/ASME B1.20.1.
  • It is equipped with union ball valves on both the inlet and outlet, allowing for easy installation and removal without disassembling the entire pipeline.
  • The threaded connections ensure a secure, leak-free fit with corresponding NPT piping.
  • Top-mounted test cocks facilitate connection of test equipment for routine maintenance and compliance checks.
View full details

Additional Details

This 2 inch FEBCO Series 860 Reduced Pressure Zone Backflow Preventer Assembly is designed to protect potable water supplies from high-hazard cross-connections. It prevents the reverse flow of toxic fluids into the drinking water system due to backsiphonage or backpressure, adhering to national plumbing codes and water authority requirements for non-potable service applications.

The assembly is suitable for use in industrial plants, hospitals, morgues, mortuaries, chemical plants, irrigation systems, boiler feed lines, and other installations requiring maximum protection.

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Always consult your local water authority, building, and plumbing codes before installation.

Construction & Operation

  • Features a bronze body with top entry access for easy maintenance.
  • Consists of two independently operating, spring-loaded check valves and a pressure differential relief valve located between them.
  • The relief valve includes a hydraulically balanced diaphragm, designed to remain closed during normal operation and open under reduced pressure.
  • Includes a flood sensor on the exterior of the relief valve to detect excessive water discharges. This sensor relays a signal for notification to facility personnel, helping to limit flooding and damage.
  • An add-on connection kit is required to activate the flood sensor's communication features with BMS or cellular systems. Without the kit, the sensor is passive.

Features

  • Equipped with threaded quarter-turn ball valves featuring union connections for isolation and ease of installation.
  • Shutoff valve handles are removable to discourage tampering.
  • Contains replaceable seats and discs for simplified servicing.
  • Includes top-mounted test cocks for convenient testing and maintenance.
  • Internal components include stainless steel springs, silicone elastomers, and Noryl® seats.

Specifications

Dimensions & Capacity

  • Size: 2 inch
  • Max. Working Pressure: 175 psi (12.1 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)

Materials

  • Valve Body: Bronze
  • Elastomers: Silicone
  • Springs: Stainless Steel
  • Seat: Noryl®
  • Seat Disc: Silicone Rubber
  • Diaphragm: Rubber/Fabric
  • Cylinder: Brass

Connections

  • End Connections: Threaded NPT (ANSI/ASME B1.20.1) with Union Ball Valves
  • Shutoff Valve Type: Quarter Turn Ball Valves
  • Test Cocks: Top Mounted

Certificates & Approvals

  • ANSI/AWWA Conformance (C511)
  • ASSE 1013
  • CSA B64.4
  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California

FAQs

What is the primary purpose of the FEBCO Series 860 backflow preventer?

The primary purpose is to protect potable water supplies from contamination by preventing the reverse flow of hazardous fluids from cross-connections due to backsiphonage or backpressure. It is intended for non-potable service applications.

Can this backflow preventer be used for drinking water systems?

No, it is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. It is designed for non-potable applications.

What are the main components of this assembly?

The assembly consists of a bronze body, two independently operating spring-loaded check valves, a pressure differential relief valve, threaded quarter-turn ball valves with union connections, top-mounted test cocks, and a flood sensor.

How does the flood sensor function, and what is required to activate it?

The flood sensor detects excessive water discharges from the relief valve and signals for notification to facility personnel. An add-on connection kit is required to activate its communication features for compatibility with BMS or cellular systems; without the kit, the sensor is passive.

What are the temperature and pressure limits for this backflow preventer?

This assembly is rated for a maximum working pressure of 175 psi (12.1 bar) and can operate within a temperature range of 32°F to 140°F (0°C to 60°C).
