2 U009M2-QT-FS

Item Number: 88004138
1 1
$2,393.33
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 2 inch
  • Weight: 36.2 lb
  • Body Material: Bronze
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F - 180°F
  • Features SentryPlus Alert® flood detection sensor
  • Quarter-turn ball valve shutoffs with tee handles
  • Union connections for versatile installation
  • Complies with ASSE 1013, AWWA C511, CSA B64.4

Description

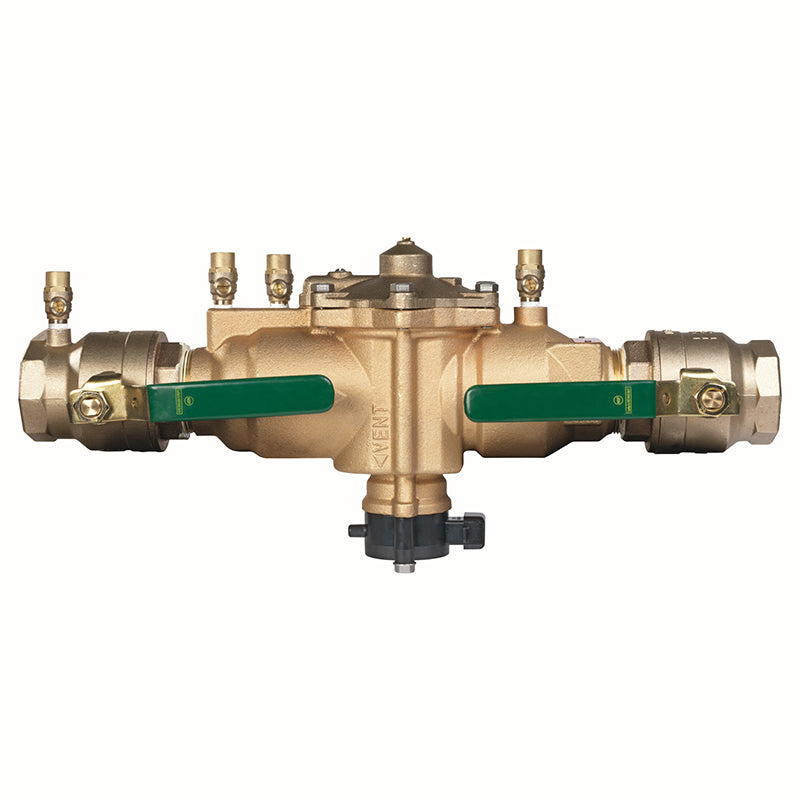

This Watts Series U009 Reduced Pressure Zone backflow preventer assembly, 2 inch (88004138), safeguards potable water supplies from pollution caused by backsiphonage or backpressure. Constructed with a durable bronze body, it features union connections, quarter-turn ball valve shutoffs, and an internal relief valve. The modular design simplifies maintenance with a single access cover and replaceable seats. It includes a SentryPlus Alert® flood sensor to detect excessive water discharge from the relief valve, providing early notification when paired with an add-on connection kit. Rated for 175 PSI and temperatures from 33°F to 180°F, it meets ASSE 1013, AWWA C511, and CSA B64.4 standards.

Help Me Connect

Connections

  • This backflow preventer assembly features union connections for straightforward installation into existing piping systems.
  • The flood sensor, which detects excessive water discharge, can be activated using an add-on connection kit (sold separately).
  • Connection kit options include BMS, cellular communication, or the Sensor Control Monitor for integration with BAS (via RS-485 Modbus) or the Nexa® platform (via Wi-Fi).

Drainage

Installation of a drain line is recommended, and an air gap is necessary when installing a drain line for the relief valve discharge. Proper drainage is required regardless of the flood sensor.

View full details

Additional Details

This 2 inch Watts Series U009 Reduced Pressure Zone backflow preventer assembly is designed to protect potable water supplies from contamination due to backsiphonage or backpressure, adhering to national plumbing codes and water authority requirements.

Its compact, modular design allows for easy maintenance with a single access cover for in-line repairs.

Key Components

  • Bronze body construction for durability
  • Union connections for versatile installation
  • Quarter-turn ball valve shutoffs with tee handles
  • Top mounted ball valve test cocks
  • Two in-line, independent check valves with captured springs
  • Replaceable check seats
  • Internal relief valve for reduced space requirements
  • Flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve

Flood Sensor Activation

  • The flood sensor is installed on the assembly exterior and relays a signal for notification in case of excessive water discharge.
  • An add-on connection kit is required to activate the flood sensor. Without the connection kit, the sensor is a passive component and will not communicate with any other device.
  • Available connection kit options include BMS, cellular communication, and the Sensor Control Monitor, enabling integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.

Ease of Maintenance

  • Single access cover and modular check construction
  • Top entry to all internals for immediate accessibility
  • No special tools required for servicing
  • Replaceable seats for economical repair

Specifications

General

  • Model: U009M2-QT-FS
  • Size: 2 inch
  • Body Material: Bronze
  • Connection Type: Union
  • Shutoff Valves: Quarter-Turn Ball Valves with Tee Handles
  • Check Valves: Two in-line, independent
  • Relief Valve: Internal Pressure Differential
  • Test Cocks: Ball Type, Screwdriver Slotted
  • Flood Sensor: Yes, with SentryPlus Alert® Technology
  • Seats: Replaceable Polymer
  • Discs: Silicone Rubber
  • Relief Valve Seat Material: Removable Stainless Steel
  • Cover Bolts: Stainless Steel

Performance

  • Maximum Working Pressure: 175 PSI (12 bar)
  • Temperature Range: 33°F - 180°F (0.5°C - 82°C)

Dimensions & Weight

  • Length (A): 27 3/8 inches (695 mm)
  • Width (B): 8 3/4 inches (222 mm)
  • Height (C): 4 1/4 inches (108 mm)
  • Weight: 32.75 lbs (14.9 kg)

Certificates & Approvals

  • USC Manual 8th Edition
  • ASSE No. 1013
  • AWWA C511
  • CSA B64.4
  • IAPMO File No. 1563
  • ASSE Approved
  • AWWA Approved
  • CSA Approved
  • IAPMO Approved
  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California

FAQs

What is the primary function of the Watts Series U009 Reduced Pressure Zone assembly?

Its primary function is to protect potable water supplies from contamination caused by backsiphonage or backpressure, ensuring compliance with national plumbing codes and water authority requirements.

How does the flood sensor function, and what is required to activate it?

The SentryPlus Alert® flood sensor detects excessive water discharges from the relief valve, relaying a signal for notification. An add-on connection kit (sold separately) is required to activate the sensor's communication capabilities.

What are the key materials used in the construction of this backflow preventer?

This assembly features a durable bronze body, silicone rubber discs, replaceable polymer check seats, and removable stainless steel relief valve seats, ensuring long-lasting performance.

What are the maximum operating pressure and temperature ratings for this device?

The Watts U009M2-QT-FS backflow preventer has a maximum operating pressure of 175 PSI (12 bar) and a temperature range of 33°F to 180°F (0.5°C – 82°C).

What standards and approvals does this backflow preventer meet?

This assembly meets USC Manual 8th Edition, ASSE No. 1013, AWWA C511, and CSA B64.4 standards, and is approved by ASSE, AWWA, CSA, and IAPMO.
