3/4 SS009M3-QT-FS

Item Number: 88004046
1 1
$4,879.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 3/4 inch
  • Weight: 5.8 lb
  • Body Material: Investment Cast 316 Stainless Steel
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F - 180°F continuous
  • Connections: NPT Inlet and Outlet
  • Shutoff Valves: Quarter-Turn Ball Valves
  • Flood Sensor: SentryPlus Alert technology included
  • Approvals: ASSE 1013, CSA B64.4, AWWA C511-92

Description

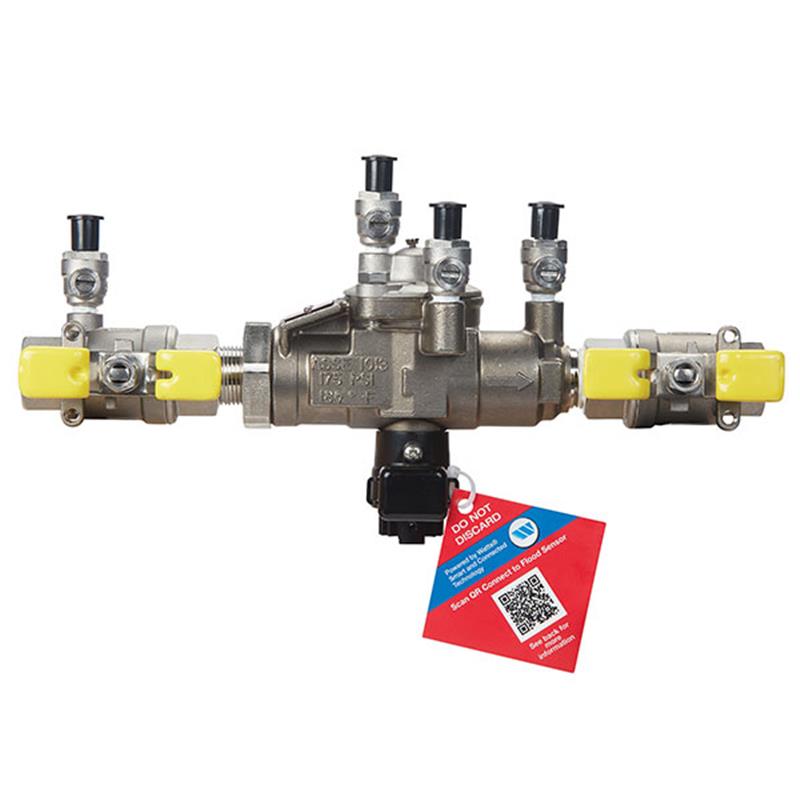

This 3/4 inch Watts SS009M3-QT-FS reduced pressure zone backflow preventer assembly safeguards potable water from pollution caused by backsiphonage or backpressure. Constructed from investment cast 316 stainless steel, it offers superior corrosion resistance for demanding applications in industrial plants, medical facilities, and aggressive atmospheres. Key features include NPT connections, quarter-turn ball valve shutoffs, and a hydraulically operated differential pressure relief valve. The assembly is Lead Free* and meets national plumbing codes and water authority requirements, including ASSE 1013 and CSA B64.4. It is rated for 175 PSI maximum working pressure and 33°F to 180°F continuous temperature. A SentryPlus Alert flood sensor detects relief valve discharges, requiring an add-on kit for active notifications.

Help Me Connect

Connections

  • This assembly features NPT inlet and outlet connections for direct plumbing integration.
  • The quarter-turn ball valve shutoffs utilize 304 stainless steel tee handles for ease of operation.

Flood Sensor Activation

The integrated flood sensor with SentryPlus Alert technology requires an add-on connection kit to become active and send alerts. Without this kit, the sensor functions as a passive component with no external communication. Add-on connection kits are available for both BMS and cellular communication systems.

View full details

Additional Details

This 3/4 inch stainless steel reduced pressure zone backflow preventer assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and/or backpressure. It provides protection of the potable water supply in accordance with national plumbing codes and water authority requirements, making it ideal for health hazard installations where downstream liquid may damage bronze or require elimination of lead and copper trace elements.

Applications

  • Ideal for health hazard installations where downstream liquid may damage bronze materials or where eliminating trace elements of lead and copper is desirable.
  • Suitable for industrial or plant use, medical/diagnostic equipment, reverse osmosis systems, carbonated beverage machines, breweries/distillers, paper and pulp industries, chemical plants, and aggressive atmospheres.

Features

  • Features two in-line independent check valves, captured springs, replaceable check seats, and corrosion resistant internal parts.
  • Includes a hydraulically operated differential pressure relief valve for reduced installation clearances.
  • Constructed with NPT body connections and vandal resistant Test Cocks.
  • Furnished with investment cast 316 stainless steel, full port, and quarter-turn ball valve shutoffs with 304 stainless steel tee handles.
  • Bolted on, top entry single access cover for ease of maintenance.
  • Modular check construction with non-reversible checks.
  • Top-mounted, vandal-resistant test cocks provide easy access for testing.
  • True line sized check modules open further to reduce fouling problems.
  • Check and relief valve seats are replaceable without special tools.
  • Internal relief valve is suitable for right and left hand installations.

Flood Sensor

  • Includes a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve.
  • The sensor, when activated with an add-on connection kit, can send an alert to notify users of potential flooding.
  • An add-on connection kit is required to activate the flood sensor. Without the connection kit, the sensor is a passive component that has no communication with any any other device. Watts is not responsible for alert failures due to connectivity issues, power outages, or improper installation.

Specifications

  • Size: 3/4 inch
  • Body Material: Investment Cast 316 Stainless Steel
  • Wetted Components: Lead Free* Stainless Steel or Plastic
  • Disc and Relief Valve Material: Silicone Rubber
  • Check Seats Material: Replaceable Polymer
  • Relief Valve Seat Material: Removable Relief Valve Seats
  • Cover Bolts Material: Stainless Steel
  • Connections: NPT Inlet and Outlet
  • Shutoff Valves: Quarter-Turn Ball Valves with 304 Stainless Steel Tee Handles
  • Test Cocks: Top-Mounted, Vandal-Resistant EZ-TC
  • Relief Valve: Hydraulically Operated Differential Pressure
  • Flood Sensor: Yes, with SentryPlus Alert Technology (requires add-on kit for active alerts)
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 33°F - 180°F (0.5°C - 82°C) continuous
  • Product Weight: 5.75 lb (2.6 kg)

Certificates & Approvals

  • USC Manual 9th Edition
  • AWWA C511-92
  • ASSE 1013
  • CSA B64.4
  • ASSE
  • AWWA
  • CSA
  • USC
  • Lead Free* (Wetted surface contains less than 0.25% lead by weight)

FAQs

What is the primary function of this backflow preventer?

This backflow preventer is designed to protect the potable water supply by preventing polluted water from flowing back into the system due to backsiphonage or backpressure, ensuring compliance with national plumbing codes.

What material is the assembly constructed from?

The assembly features an investment cast 316 stainless steel body, providing excellent corrosion resistance. All wetted components are made from Lead Free* stainless steel or plastic.

What type of connections does this backflow preventer use?

This assembly is constructed with NPT (National Pipe Taper) inlet and outlet connections, allowing for secure and standard plumbing integration.

How does the flood sensor work, and what is required to activate its alert feature?

The integrated flood sensor with SentryPlus Alert technology detects excessive water discharges from the relief valve. To activate its notification capabilities, an add-on connection kit (available for BMS and cellular communications) is required.

What are the maximum operating pressure and temperature range for this device?

This backflow preventer is rated for a maximum working pressure of 175 PSI (12.1 bar) and operates continuously within a temperature range of 33°F to 180°F (0.5°C to 82°C).
