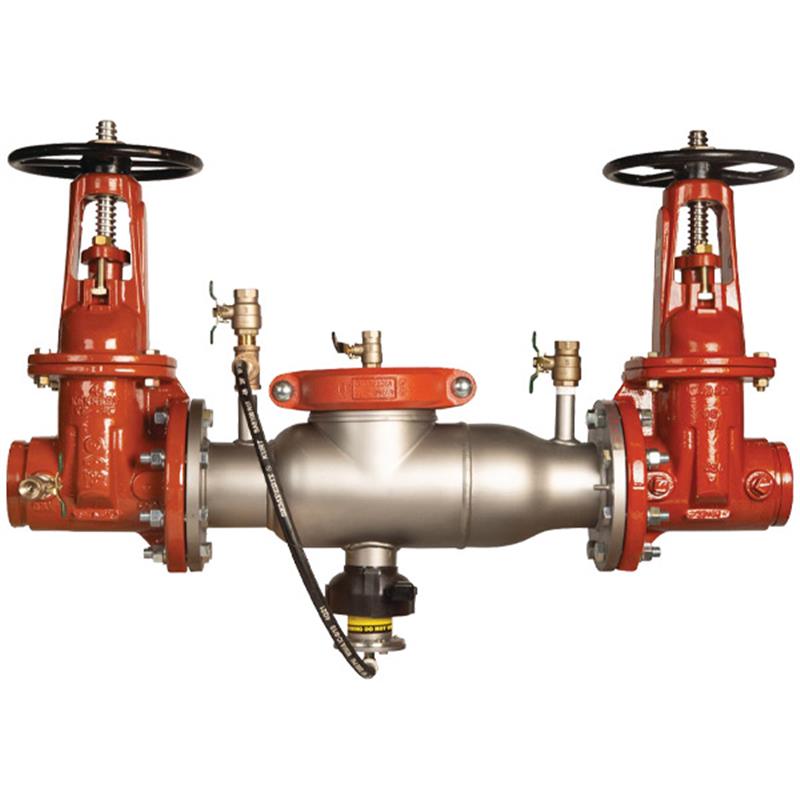

3 994-DNRS-FS

Item Number: F439401
1 1
$9,142.51
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • 3 inch Reduced Pressure Zone Assembly
  • Weight: 270.0 lb
  • Lead-Free Stainless Steel Body
  • Domestic Non-Rising Stem (NRS) Shutoff Valves
  • SentryPlus Alert® Flood Sensor Included
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F-110°F
  • No Special Tools Required for Servicing
  • Approved for Health Hazard Cross-Connections

Description

The Watts Series 994 3-inch Reduced Pressure Zone Assembly Backflow Preventer safeguards potable water supplies from health hazard cross-connections by preventing backpressure and backsiphonage. Featuring a lead-free 300 Series stainless steel body and domestic non-rising stem (NRS) gate valves, it offers durability and reliable operation. This assembly includes a SentryPlus Alert® flood sensor to detect continuous relief valve discharge, with activation requiring an add-on connection kit for BMS, cellular, or BAS/Wi-Fi integration. Designed for easy maintenance without special tools, it supports flows up to 175 psi and meets AWWA C511-92, ASSE 1013, and CSA B64.5 standards.

Help Me Connect

Connecting the Flood Sensor

This backflow preventer includes a flood sensor with SentryPlus Alert® technology. To activate its alert capabilities, an add-on sensor connection kit is required. Without this kit, the sensor operates passively and does not communicate with other devices.

  • Connection Kit Options: Available kits can enable integration with Building Management Systems (BMS), cellular communication, or the Sensor Control Monitor.
  • Sensor Control Monitor: This option facilitates integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi.

Drainage Installation

  • Watts recommends installing a drain line and the required 994AGK-P air gap for proper drainage.
  • When using an air gap, attach the air gap brackets directly onto the flood sensor.
View full details

Additional Details

This 3 inch reduced pressure zone assembly backflow preventer is designed to protect potable water supplies from backsiphonage and backpressure of hazardous materials.

It features a compact modular design for easy maintenance and includes a flood sensor with SentryPlus Alert® technology.

Features

  • Equipped with a flood sensor with SentryPlus Alert® technology to detect continuous discharge from the relief valve.
  • An add-on connection kit is required to activate the flood sensor and extend flood monitoring.
  • Integrates with BAS via RS-485 Modbus or the Nexa® platform via Wi-Fi when paired with the Sensor Control Monitor.
  • Constructed with a lead-free stainless steel body for long-term corrosion resistance and maximum strength.
  • Features domestic non-rising stem (NRS) resilient seated gate valves.
  • Designed for health hazard cross-connection applications.
  • No special tools are required for servicing, simplifying maintenance.
  • Compact construction allows for installation in smaller enclosures.
  • Bottom-mounted relief valve reduces clearance requirements for outside wall installations.
  • Short lay length and modular design facilitate easy installation and in-line repairs with a single access cover.
  • Includes corrosion-resistant stainless steel relief valve and patented torsion spring check valves.
  • Equipped with four ball-type test cocks.

Always refer to the full product installation and safety information before beginning installation. The flood sensor does not replace the need for proper drainage or compliance with local codes and regulations.

Specifications

General

  • Product Type: Reduced Pressure Zone Assembly Backflow Preventer
  • Nominal Size: 3 inch
  • Brand: Watts
  • Model Series: 994
  • Shutoff Valves: Domestic Non-Rising Stem (NRS) Resilient Seated Gate Valves
  • Flood Sensor: Yes, with SentryPlus Alert® Technology
  • Main Valve Body Material: 300 Series Stainless Steel
  • Internal Metal Parts: 300 Series Stainless Steel
  • Check Assembly Material: Noryl®
  • Temperature Range: 33°F-110°F (0.5°C - 43°C) Continuous
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Lead Content: Wetted surface contains less than 0.25% lead by weight

Certificates & Approvals

  • AWWA C511-92
  • CSA B64.5
  • ASSE 1013
  • Approved by the Foundation for Cross Connection Control & Hydraulic Research at the University of Southern California, sizes 2 1/2" to 6"

FAQs

What is the primary purpose of this backflow preventer?

This Watts Series 994 Reduced Pressure Zone Assembly is designed to protect potable water supplies by preventing the reverse flow of hazardous materials due to backsiphonage or backpressure from entering the system.

Is the flood sensor immediately active upon installation?

The flood sensor with SentryPlus Alert® technology is included but requires an add-on connection kit to be activated. Without the kit, it is a passive component and will not communicate alerts.

What types of connections are available for the flood sensor's alert system?

When paired with an add-on connection kit, the flood sensor can integrate with Building Management Systems (BMS), cellular communication, or the Sensor Control Monitor for BAS/Wi-Fi connectivity.

What materials are used in the construction of this backflow preventer?

The main valve body and all internal metal parts are constructed from 300 Series stainless steel, while the check assembly uses Noryl®. It features a lead-free design with wetted surfaces containing less than 0.25% lead.

What are the maximum operating pressure and temperature limits?

This backflow preventer has a maximum working pressure of 175 psi (12.1 bar) and can operate continuously within a temperature range of 33°F to 110°F (0.5°C to 43°C).
