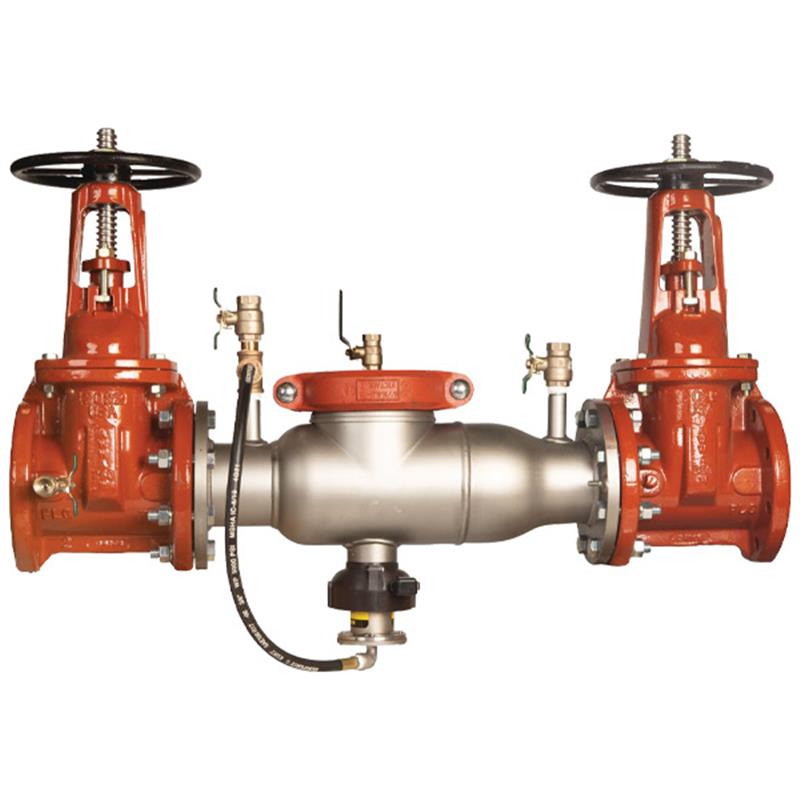

3 994-OSY-FS

Item Number: F437805
1 1
$10,060.64
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Product Type: Reduced Pressure Zone Assembly
  • Weight: 226.0 lb
  • Size: 3 inch
  • Body Material: 300 Series Stainless Steel
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F-110°F
  • Features SentryPlus Alert® flood sensor
  • UL Classified and FM Approved OSY gate valves
  • Lead Free construction

Description

The 3-inch Watts Series 994 Reduced Pressure Zone (RPZ) Assembly is a lead-free backflow preventer designed to safeguard potable water from health hazard cross-connections. It features a lightweight, short lay length, 300 Series stainless steel body, and corrosion-resistant components for durability. Included is a SentryPlus Alert® flood sensor that detects excessive relief valve discharges, offering a crucial alert for potential flooding when connected with an add-on kit. This assembly is UL Classified and FM Approved with OSY resilient seated gate valves, ensuring reliable performance and easy maintenance. Item number F437805.

Help Me Connect

Flood Sensor Connectivity

This Watts Series 994 Reduced Pressure Zone Assembly includes a flood sensor designed to detect excessive water discharges from the relief valve. To activate the flood sensor's alert capabilities, an add-on connection kit is required. These kits enable communication through various systems including BMS (Building Management Systems), cellular networks, or the Sensor Control Monitor for integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.

NOTICE: An add-on connection kit is required to activate the flood sensor. Without the connection kit, the flood sensor is a passive component that does not communicate with any other device.

View full details

Additional Details

This 3 inch Watts Series 994 Reduced Pressure Zone (RPZ) Assembly backflow preventer is designed to protect potable water supplies from health hazard cross-connections, preventing the reverse flow of liquids due to backpressure or backsiphonage.

Featuring a short lay length and a lightweight 300 Series stainless steel body, this assembly includes a flood sensor with SentryPlus Alert® technology to detect and signal excessive water discharges from the relief valve, helping to prevent costly flooding and damage.

Key Features

  • Lead Free construction ensures wetted surfaces contain less than 0.25% lead by weight.
  • Stainless steel body is half the weight of competitive designs, reducing installation and shipping costs.
  • Short end-to-end dimensions allow for easy retrofit applications.
  • Corrosion resistant stainless steel relief valve with balanced rolling diaphragm for lower maintenance.
  • Patented torsion spring check valves provide maximum flow at low pressure drop and trouble-free operation.
  • UL Classified and FM Approved outside stem and yoke (OSY) resilient seated gate valves.
  • Flood sensor with SentryPlus Alert® technology detects continuous discharge from the relief valve.
  • Compact modular design facilitates easy in-line maintenance with a single access cover.
  • No special tools required for servicing.

NOTICE: An add-on connection kit is required to activate the flood sensor's alert feature. Without the connection kit, the flood sensor is a passive component that does not communicate with any other device.

Specifications

  • Product Type: Reduced Pressure Zone Assembly
  • Size: 3 inch
  • Model: Watts Series 994
  • Body Material: 300 Series Stainless Steel
  • Internal Metal Parts: 300 Series Stainless Steel
  • Check Assembly Material: Noryl®
  • Shutoff Valves: OSY (Outside Stem and Yoke) Resilient Seated Gate Valves
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F-110°F (0.5°C - 43°C) continuous
  • Lead Content: Wetted surface contains less than 0.25% lead by weight

Certificates & Approvals

  • AWWA C511-92
  • CSA B64.5
  • UL Classified
  • ASSE 1013
  • FM Approved
  • Approved by Foundation for Cross Connection Control & Hydraulic Research

FAQs

What is the primary function of the Watts Series 994 Reduced Pressure Zone Assembly?

Its primary function is to protect the potable water supply from contamination due to backsiphonage and backpressure, specifically in health hazard cross-connection applications.

What does the integrated flood sensor do?

The integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve, providing an alert for potential flooding events when an add-on connection kit is used.

Is this backflow preventer compliant with lead-free requirements?

Yes, the Watts Series 994 is a lead-free product, meaning its wetted surfaces that contact consumable water contain less than one quarter of one percent (0.25%) of lead by weight.

What materials are used in the construction of this assembly?

The main valve body and all internal metal parts are constructed from 300 Series stainless steel for corrosion resistance. The check assembly uses Noryl® material.

What are the key approvals for the Watts Series 994?

This assembly is UL Classified, FM Approved, ASSE 1013, CSA B64.5, and AWWA C511-92 approved, ensuring it meets recognized safety and performance standards.
