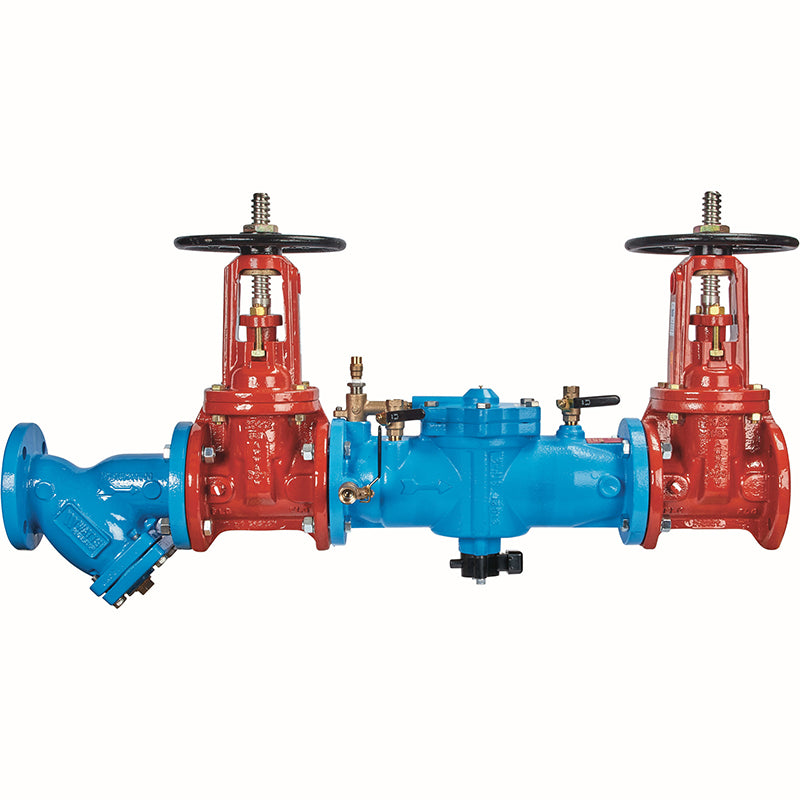

3 LF009-OSY-S-FDA-FS

Item Number: F124317
1 1
$11,604.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Nominal Pipe Size: 3 inch
  • Body Material: Cast Iron with ArmorTek® Coating
  • Shutoff Valves: UL and FM Approved OSY Gate Valves
  • Strainer: FDA Epoxy Coated
  • Flood Detection: SentryPlus Alert® Flood Sensor included
  • Maximum Supply Pressure: 175 psi
  • Continuous Water Temperature: 110°F
  • Lead Free* Construction: Wetted surface < 0.25% lead by weight

Description

This 3-inch Watts LF009 Reduced Pressure Zone backflow preventer assembly protects potable water from contamination due to backsiphonage or backpressure. Featuring a durable cast iron body with advanced ArmorTek® corrosion-resistant coating and an FDA epoxy-coated strainer, it ensures longevity and reliability. It includes UL and FM Approved OSY resilient seated gate valves and a SentryPlus Alert® flood sensor for detecting relief valve discharges. Designed for easy maintenance with a single access cover and replaceable seats, this assembly is suitable for continuous pressure health hazard applications up to 175 psi and 110°F continuous water temperature. Item number F124317.

Help Me Connect

Flood Sensor Connection

The integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. To activate its full alert capabilities and relay notifications to facility personnel, an add-on sensor connection kit is required (RP/IS-009). Without this kit, the sensor operates as a passive component without communication. Connection kit options include:

  • Integration with Building Management Systems (BMS)
  • Cellular communication
  • Connection to a Sensor Control Monitor, enabling integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi.
View full details

Additional Details

This 3 inch lead free reduced pressure zone backflow preventer assembly (LF009-OSY-S-FDA-FS) is engineered to protect potable water supplies from pollution due to backsiphonage or backpressure. It is ideal for continuous pressure piping applications and for cross-connections identified as health hazards.

The assembly features a robust cast iron body with advanced ArmorTek® coating and includes a flood sensor with SentryPlus Alert® technology for enhanced monitoring.

Features and Benefits

  • Reduced Pressure Zone (RPZ) Assembly prevents polluted water from entering potable supply.
  • Equipped with a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
  • ArmorTek® coating technology, a patented 3-part advanced epoxy system, resists microbial-induced corrosion (MIC) and protects exposed metal substrate.
  • Lead Free* construction ensures compliance with installation requirements. *The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.
  • Includes an FDA epoxy coated strainer for added protection.
  • Features UL and FM Approved OSY resilient seated gate valves for reliable shutoff.
  • Single access cover and modular check construction facilitate easy maintenance.
  • Top entry to all internals provides immediate accessibility.
  • Captured springs ensure safe maintenance procedures.
  • Internal relief valve reduces installation clearances.
  • Replaceable seats allow for economical repair.
  • Large body passages ensure low pressure drop.
  • No special tools are required for servicing.

Specifications

  • Product Type: Reduced Pressure Zone Backflow Preventer Assembly
  • Series: LF009
  • Nominal Pipe Size: 3 inch
Body and Coatings
  • Body Material: Cast Iron
  • Body Coating: ArmorTek® Powder Coating (internal and external surfaces)
  • Strainer: FDA Epoxy Coated
  • Lead Free: Yes (wetted surface < 0.25% lead by weight)
Components
  • Shutoff Valves: UL and FM Approved Outside Stem and Yoke (OSY) Resilient Seated Gate Valves
  • Check Valves: Two in-line independent check valves
  • Relief Valve: Internal pressure differential relief valve
  • Test Cocks: Resilient seated, Lead Free* cast copper silicon alloy ball valve test cocks
  • Flood Sensor: Yes, with SentryPlus Alert® technology
Performance Ratings
  • Maximum Supply Pressure: 175 psi (12.1 bar)
  • Continuous Water Temperature: 110°F (43°C)
  • Intermittent Water Temperature: 140°F (60°C)
Standards and Approvals
  • Standards: USC
  • ASSE Std. 1013
  • AWWA C511
  • CSA B64.4
  • IAPMO File No. 1563
  • Certifications:
  • UL Classified
  • FM Approved

FAQs

What is the primary purpose of the Watts LF009 Reduced Pressure Zone assembly?

The primary purpose is to protect potable water supplies from contamination caused by backsiphonage or backpressure, ensuring compliance with plumbing codes and water authority requirements for health hazard cross-connections.

What does "Lead Free*" mean for this product?

"Lead Free*" indicates that the wetted surface of this product, which comes into contact with consumable water, contains less than 0.25% of lead by weight, complying with Lead Free installation requirements.

How does the flood sensor function, and what is needed to activate it?

The flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. To activate its alert features and relay notifications, an add-on sensor connection kit is required. Without the kit, it is a passive component.

What are the key maintenance advantages of this backflow preventer?

This assembly is designed for ease of maintenance with a single access cover, modular check construction, and top entry to all internal components. It also features captured springs for safe handling and replaceable seats for economical repair without special tools.

What types of shutoff valves are included with this 3-inch assembly?

This 3-inch LF009 assembly includes UL Classified and FM Approved Outside Stem and Yoke (OSY) resilient seated gate valves, providing reliable and approved shutoff capabilities.
