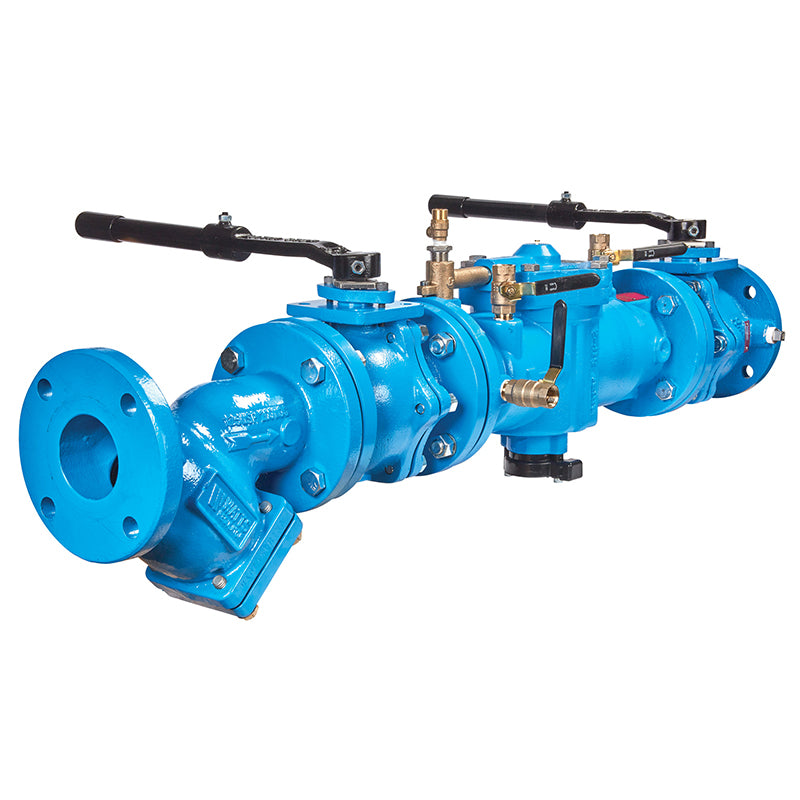

3 LF009-QT-S-FDA-FS

Item Number: F122656
1 2
$12,756.76
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Nominal Pipe Size: 3 inch
  • Body Material: Cast Iron with ArmorTek® Coating
  • Shutoff Valves: Quarter-Turn Ball Valves
  • Flood Detection: SentryPlus Alert® Sensor
  • Maximum Supply Pressure: 175 PSI
  • Lead Free Construction: Wetted surface < 0.25% lead
  • Easy maintenance with single access cover
  • Certified by ASSE 1013, AWWA C511, CSA B64.4

Description

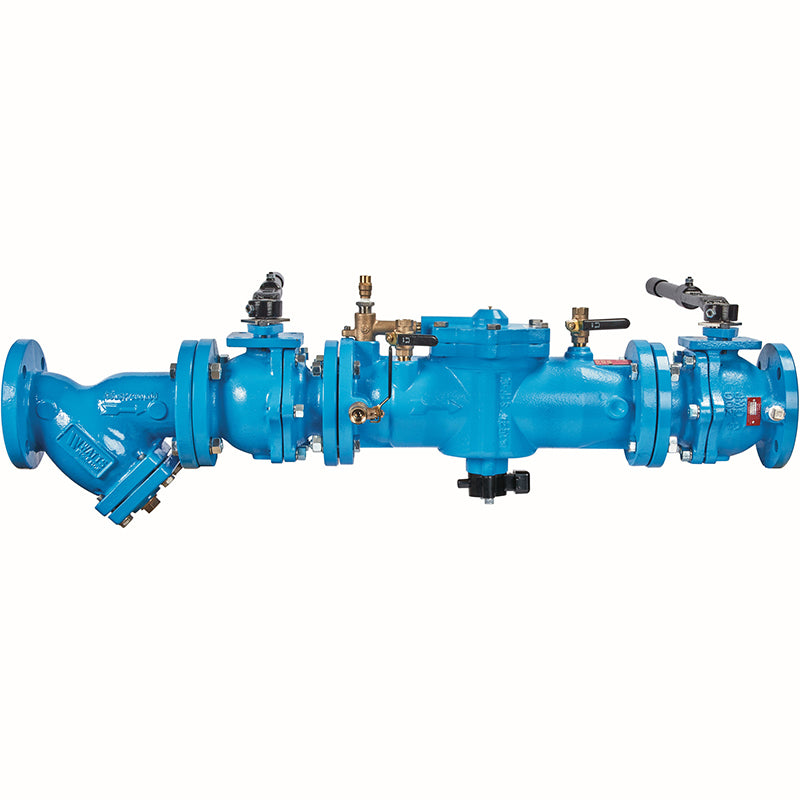

This 3 inch Lead Free Reduced Pressure Zone Backflow Preventer Assembly by Watts prevents polluted water from entering potable water supplies due to backsiphonage or backpressure. Its cast iron body features ArmorTek® advanced epoxy coating for superior corrosion resistance. Equipped with quarter-turn ball valve shutoffs and NPT end connections, this assembly includes a SentryPlus Alert® flood sensor for detecting continuous relief valve discharge. It is designed for easy maintenance with no special tools required. Ideal for health hazard cross-connections and continuous pressure applications, this unit is certified by ASSE 1013, AWWA C511, and CSA B64.4. Item number F122656.

Help Me Connect

Connections

  • This assembly features NPT end connections for easy installation into existing piping systems.

Flood Sensor Compatibility

The integrated SentryPlus Alert® flood sensor requires an add-on connection kit (sold separately) to activate its alert capabilities. Once activated, the sensor can relay alerts through various systems including:

  • Building Management Systems (BMS)
  • Cellular communication
  • The Sensor Control Monitor for integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi connectivity.
View full details

Additional Details

This 3 inch lead free reduced pressure zone backflow preventer assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and/or backpressure. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards.

Construction & Features

  • Features a cast iron body with NPT end connections.
  • Includes an FDA epoxy coated strainer and quarter-turn ball valve shutoffs with tee handles.
  • Equipped with top-mounted test cocks, two in-line independent check valves, captured springs, and replaceable check seats with an internal relief valve for reduced space requirements.
  • Utilizes ArmorTek® coating technology, a patented 3-part advanced epoxy system, designed to resist both microbial induced (MIC) and exposed metal substrate corrosion.
  • Incorporates a flood sensor with SentryPlus Alert® technology to detect continuous discharge from the relief valve.
  • An add-on sensor connection kit (sold separately) is required to activate the flood sensor for relaying alerts for potential flooding events.
  • Allows integration with BMS, cellular communication, or the Sensor Control Monitor for alerts via BAS (RS-485 Modbus) or Nexa® platform (Wi-Fi).
  • Designed for ease of maintenance with a single access cover and modular check construction.
  • Top entry to all internals provides immediate accessibility.
  • No special tools are required for servicing.
  • Features captured springs for safe maintenance and replaceable seats for economical repair.

Specifications

  • Product Type: Reduced Pressure Zone Backflow Preventer Assembly
  • Nominal Pipe Size: 3 inch
  • Body Material: Cast Iron
  • Coating: ArmorTek® Advanced Epoxy Coating System, FDA Epoxy Coated (Strainer)
  • Shutoff Valves: Quarter-Turn Ball Valves
  • End Connections: NPT
  • Maximum Supply Pressure: 175 PSI (12.1 bar)
  • Continuous Water Temperature: 110°F (43°C)
  • Intermittent Water Temperature: 140°F (60°C)
  • Flood Detection: SentryPlus Alert® Flood Sensor
  • Lead Content: Wetted surface contains less than 0.25% lead by weight
  • Servicing: No special tools required
  • Features: Replaceable seats, captured springs, single access cover, top entry to internals, compact modular design

Certificates & Approvals

  • USC
  • ASSE No. 1013
  • AWWA C511
  • CSA B64.4
  • IAPMO File No. 1563
  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California

FAQs

What is the primary function of this backflow preventer?

This backflow preventer assembly is designed to protect potable water supplies by preventing polluted water from flowing back into the system due to backsiphonage or backpressure.

What material is the body made from?

The body of this assembly is constructed from cast iron, which is then coated with ArmorTek®, a patented 3-part advanced epoxy system, to resist microbial induced corrosion (MIC) and protect the metal substrate.

Does this backflow preventer include a flood sensor?

Yes, it includes a SentryPlus Alert® flood sensor that detects excessive water discharges from the relief valve. An add-on connection kit (sold separately) is required to activate the alert features.

What type of connections does this assembly have?

This 3 inch backflow preventer assembly is furnished with NPT (National Pipe Taper) end connections.

What is the maximum operating pressure for this unit?

This assembly is suitable for supply pressures up to 175 PSI (12.1 bar).
