3 LF860-DNRS-FS

Item Number: F683105
1 1
$10,990.90
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 3 inch
  • Weight: 315.0 lb
  • Lead Free Reduced Pressure Zone Backflow Preventer
  • Main Body Material: Ductile Iron Grade 65-45-12
  • ArmorTek® patented 3-part advanced epoxy coating
  • SentryPlus Alert® flood sensor included
  • Domestic NRS resilient seated gate valves
  • Max. Working Pressure: 175 psi
  • ASSE 1013 Listed, UL Classified, FM Approved

Description

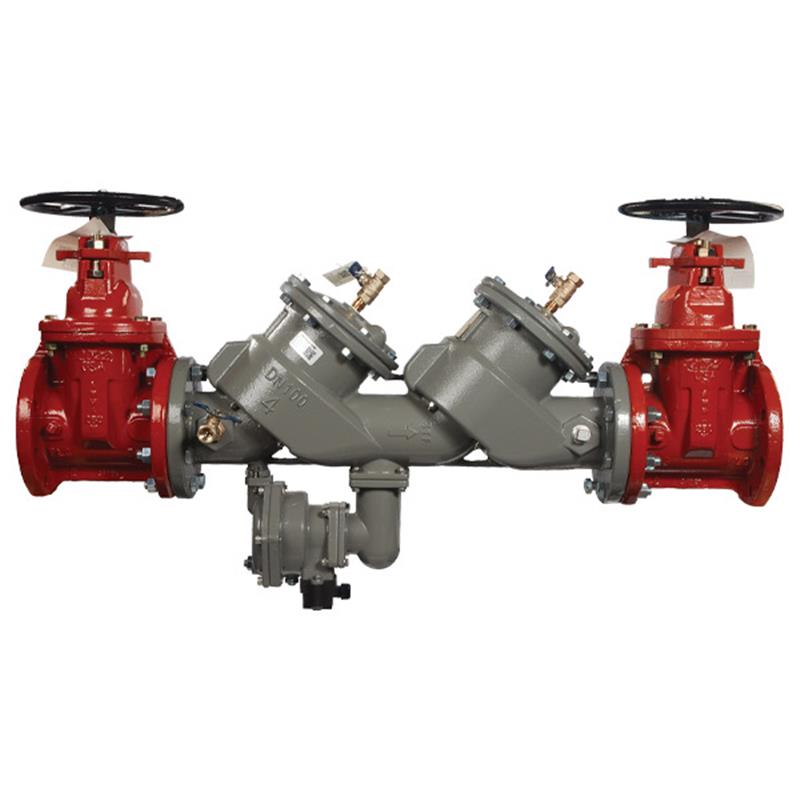

The 3 inch FEBCO MasterSeries® LF860-DNRS-FS is a lead-free reduced pressure zone backflow preventer assembly designed for industrial installations. It protects potable water systems from high hazard (toxic) contamination. Featuring a durable ductile iron body with patented ArmorTek® advanced epoxy coating, it offers superior corrosion resistance. This assembly includes a SentryPlus Alert® flood sensor and robust stainless-steel relief valve seat and check components for maximum performance. With domestic non-rising stem gate valves, it is ASSE 1013, UL Classified, and FM Approved, ensuring reliable operation. Item number F683105.

Help Me Connect

Flood Sensor Connection

This backflow preventer includes a SentryPlus Alert® flood sensor to detect excessive water discharges from the relief valve. To activate the flood sensor's full alerting capabilities, an add-on connection kit is required. Without this kit, the sensor functions as an alarm management device providing basic connectivity. Retrofit sensor connection kits are available for existing installations. These kits enable integration with a Building Automation System (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi.

View full details

Additional Details

This 3 inch lead free MasterSeries® reduced pressure zone backflow preventer assembly is designed to protect against high hazard (toxic) fluids in water services to industrial installations and applications.

Key Features

  • Features a flood sensor with SentryPlus Alert® technology to detect continuous discharge from the relief valve.
  • An add-on sensor connection kit is required to activate the flood sensor for full functionality, enabling alerts for potential flooding events.
  • Integrates with the Sensor Control Monitor to deliver maintenance alerts to BAS via RS-485 Modbus or the Nexa® platform by Wi-Fi connectivity when used with an add-on connection kit.
  • ArmorTek® coating: a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion.
  • Combines stainless-steel relief valve seat and stainless-steel check components for maximum performance and durability.
  • Includes domestic non-rising stem gate valves.
  • No special tools required for servicing.

Construction

  • Features a robust ductile iron body construction.
  • The ductile iron body is fused with patented 3-part ArmorTek® epoxy coating for advanced internal and external corrosion resistance.
  • Composed of a pressure differential relief valve and two independent operating, spring-loaded check valves.

Specifications

  • Size: 3 inch
  • Product Type: Lead Free Reduced Pressure Zone Backflow Preventer Assembly
  • Brand: FEBCO MasterSeries®
  • Main Valve Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® patented 3-part advanced epoxy coating system (applied to internal and external surfaces)
  • Shutoff Valves: Domestic NRS resilient seated gate valves (AWWA C509 Compliant)
  • Relief Valve Seat: Stainless steel
  • Relief Valve Seal: Stainless steel
  • Check Seats: Stainless steel
  • Disc Holder: Stainless steel
  • Elastomer Disc: Silicone
  • Spring: Stainless steel
  • Max. Working Pressure: 175 psi (12.1 bar)
  • Min. Working Pressure: 20 psi (1.4 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F – 140°F (0.5°C – 60°C) continuous

Certificates & Approvals

  • Approved by The Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1013 Listed
  • UL Classified™ (US & Canada)
  • FM Approved®
  • IAPMO
  • AWWA Standard C511 Compliant
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
  • CSA B64.4

FAQs

What is the primary application of the FEBCO 3 inch LF860-DNRS-FS?

This backflow preventer is designed for industrial installations and applications to protect potable water systems from contamination by high hazard (toxic) fluids.

What type of corrosion protection does this backflow preventer offer?

It features a patented 3-part ArmorTek® advanced epoxy coating system, which is applied to both internal and external surfaces of the ductile iron body to limit microbial induced (MIC) and exposed metal substrate corrosion.

Does this backflow preventer include a flood sensor?

Yes, it includes a flood sensor with SentryPlus Alert® technology to detect continuous discharge from the relief valve. An add-on connection kit is required to activate its full alerting capabilities.

What materials are used for the key internal components?

The relief valve seat and check components are made from stainless steel for maximum performance and durability. The relief valve seal and elastomer disc are silicone.

What type of shutoff valves are included with this assembly?

The assembly comes with domestic non-rising stem (NRS) resilient seated gate valves, which are compliant with AWWA C509.
