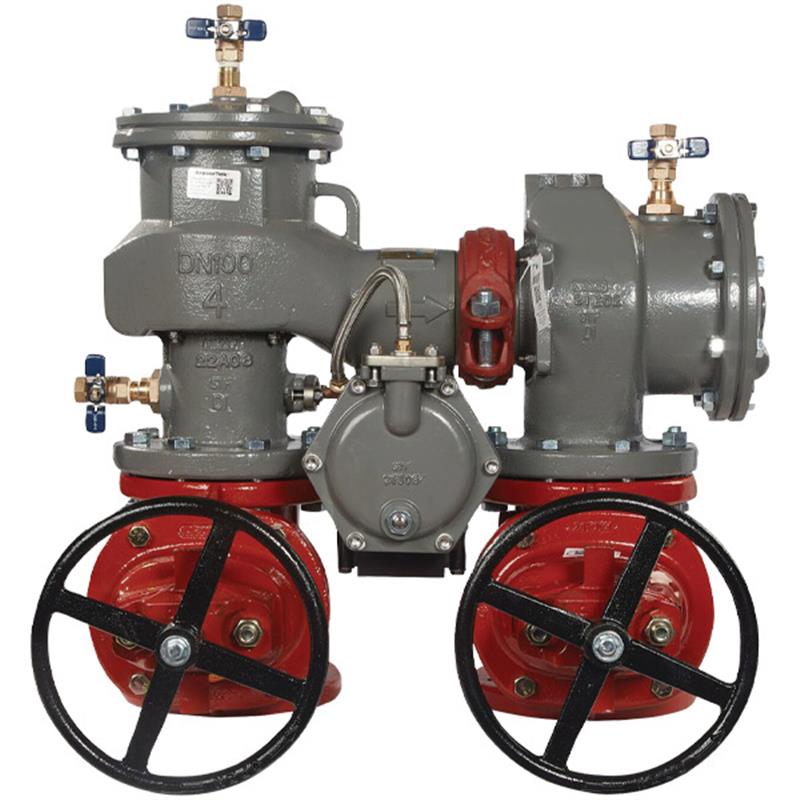

3 LF880V-DNRS-FS

Item Number: F683141
1 1
$11,942.18
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • 3 Inch Lead Free Reduced Pressure Zone Backflow Preventer
  • Weight: 285.0 lb
  • Ductile Iron Body with Patented ArmorTek® Coating
  • SentryPlus Alert® Technology Flood Sensor Included
  • Protects Against High Hazard (Toxic) Fluids
  • Stainless Steel Relief Valve Seat and Check Components
  • Configurable N-Pattern Design
  • Domestic Non-Rising Stem Shutoff Valves
  • Field Reversible Relief Valve

Description

This 3 inch lead free MasterSeries reduced pressure zone backflow preventer assembly is designed to protect water services from high hazard (toxic) fluids in industrial installations. Its durable ductile iron body features a patented ArmorTek coating for advanced corrosion resistance, including protection against microbial induced corrosion. Equipped with a SentryPlus Alert flood sensor, it detects continuous relief valve discharge and can integrate with building automation systems via Modbus or Wi-Fi for alerts. Stainless steel relief valve seats, check components, and springs ensure maximum performance and extended valve life. The assembly includes domestic non-rising stem shutoff valves and a configurable N-pattern design. Item number F683141.

Help Me Connect

Flood Sensor Connectivity

The integrated flood sensor with SentryPlus Alert technology can be enhanced with an add-on connection kit. This allows the sensor to relay alerts for potential flooding events via various communication methods. Options include direct integration with Building Automation Systems (BAS) via RS-485 Modbus or through the Nexa platform by Wi-Fi connectivity using the Sensor Control Monitor. Cellular communication and other BMS options are also available.

View full details

Additional Details

This 3 inch lead free MasterSeries configurable reduced pressure zone backflow preventer assembly helps protect against high hazard (toxic) fluids in water services to industrial installations and applications.

Key Features

  • Features a flood sensor with SentryPlus Alert technology to detect continuous discharge from the relief valve.
  • An add-on sensor connection kit can extend flood monitoring for compatible assemblies.
  • Integrates with the Sensor Control Monitor to deliver maintenance alerts to BAS via RS-485 Modbus or the Nexa platform by Wi-Fi connectivity.
  • Ductile iron body construction is fused with a patented 3-part ArmorTek advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion.
  • Combines the use of a stainless-steel relief valve seat and stainless-steel check components for maximum performance and durability.
  • Offers a configurable N-Pattern design.
  • Utilizes domestic non-rising stem (NRS) shutoff valves.
  • Includes lead free construction and stainless steel springs.
  • The relief valve is field reversible for added convenience.
  • Consists of a lead free body, test cocks, spring loaded check valves, and a pressure differential relief valve.

Specifications

  • Size: 3 inch
  • Body Material: Ductile Iron with ArmorTek Coating
  • Coating: Patented 3-part ArmorTek® Advanced Epoxy Coating System
  • Relief Valve Seat Material: Stainless Steel
  • Check Components: Stainless Steel
  • Spring Material: Stainless Steel
  • Shutoff Valves: Domestic Non-Rising Stem (NRS)
  • Design: Configurable N-Pattern
  • Lead Free: Yes
  • Flood Detection: SentryPlus Alert® Technology Flood Sensor
  • Relief Valve: Field Reversible

Certificates & Approvals

    FAQs

    What type of hazards does this backflow preventer protect against?

    This reduced pressure zone backflow preventer assembly is designed to help protect against high hazard (toxic) fluids in water services for industrial installations and applications.

    What is the benefit of the ArmorTek coating?

    The patented 3-part ArmorTek advanced epoxy coating system on the ductile iron body is designed to limit both microbial induced corrosion (MIC) and corrosion of exposed metal substrate, enhancing durability and valve life.

    What is the SentryPlus Alert technology flood sensor?

    The SentryPlus Alert technology flood sensor is integrated into the backflow assembly to detect excessive water discharges from the relief valve. When paired with an add-on connection kit, it can relay alerts for potential flooding events.

    How does the flood sensor connect to building management systems?

    The flood sensor can integrate with the Sensor Control Monitor, which enables connectivity to Building Automation Systems (BAS) via RS-485 Modbus or the Nexa platform through Wi-Fi. Other connection kit options include BMS and cellular communication.

    What are the key material components of this backflow preventer?

    This backflow preventer features a ductile iron body with ArmorTek coating, a stainless-steel relief valve seat, stainless-steel check components, and stainless steel springs, all designed for durability and performance.
