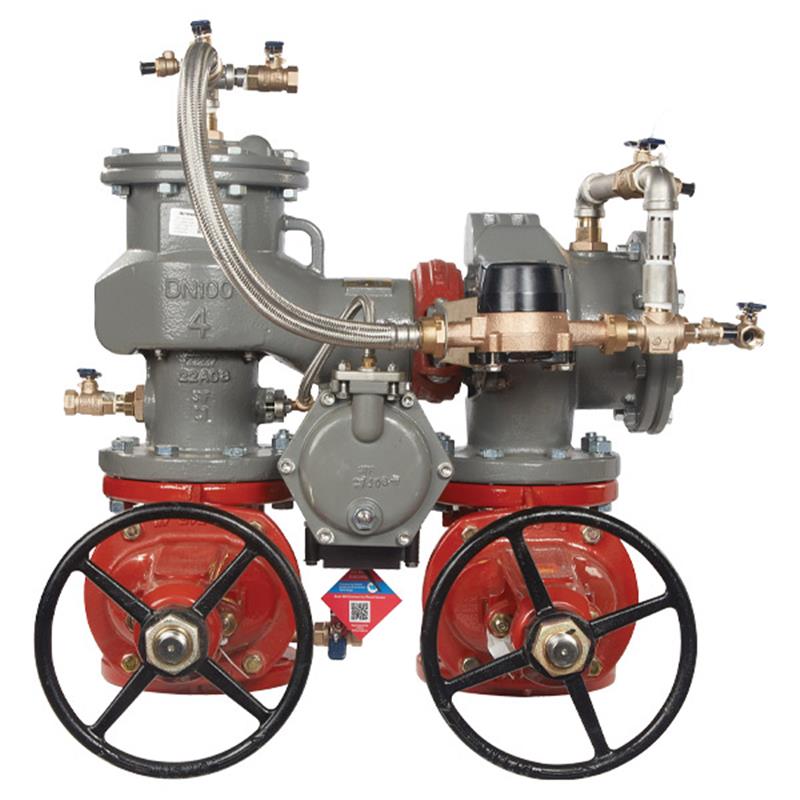

3 LF886V-OSY-GPM-FS

Item Number: F683224
1 1
$14,575.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 3 inch
  • Weight: 267.0 lb
  • Lead Free construction
  • Body Material: Ductile Iron Grade 65-45-12 with ArmorTek® coating
  • Shutoff Valves: OSY (UL Classified & FM Approved)
  • Includes flood sensor with SentryPlus Alert® technology
  • Detector bypass with Gallons Per Minute (GPM) meter
  • Maximum Working Pressure: 175 psi
  • Approved by ASSE 1047, UL Classified, FM Approved, IAPMO/CUPC, AWWA C511, CSA B64.4

Description

The 3 inch Lead Free MasterSeries® LF886V Reduced Pressure Zone Detector Assembly (Type II) is designed to protect potable water systems from backpressure and backsiphonage in high hazard/toxic applications. It features a durable ductile iron body with patented ArmorTek® coating for superior corrosion resistance and OSY shutoff valves. The integrated flood sensor with SentryPlus Alert® technology detects excessive relief valve discharge, providing alerts when paired with an add-on connection kit. A GPM metered bypass allows for leak detection. This assembly offers dependable protection and is UL Classified and FM Approved. Item number F683224.

Help Me Connect

Flood Sensor Connectivity

  • The integrated flood sensor is a passive component until an add-on connection kit is installed.
  • An add-on connection kit is required to activate the flood sensor's alert functions.
  • Connection kit options include those for Building Management Systems (BMS), cellular communication, or the Sensor Control Monitor.
  • The Sensor Control Monitor enables integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi connectivity.
View full details

Additional Details

This 3 inch Lead Free MasterSeries® LF886V Reduced Pressure Zone Detector Assembly (Type II) is designed to protect potable drinking water systems from backpressure and backsiphonage conditions in high hazard/toxic applications, such as industrial installations. It features OSY shutoff valves, a GPM metered bypass, and a flood sensor with SentryPlus Alert® technology.

Key Features

  • Equipped with a flood sensor featuring SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
  • An add-on connection kit (required, not included) activates the flood sensor for BMS, cellular, or Wi-Fi network communication, enabling alerts for potential flooding events.
  • Ductile iron valve body design is coated with ArmorTek®, a patented three-part advanced epoxy system engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal surfaces.
  • Includes stainless steel relief valve seat and stainless steel check components for maximum performance and durability.
  • Designed for inline servicing, requiring no special tools.
  • Features a compact detector bypass assembly with a GPM meter to detect potential underground water leaks or unauthorized water usage.
  • Two independently acting clapper style check modules with replaceable seats and disc rubbers.
  • Captured modular spring assembly, reversible and replaceable discs, and field replaceable seats.

Use of the flood sensor does not replace the need to comply with all required instructions, codes, and regulations related to installation, operation, and maintenance of this product, including the need to provide proper drainage in the event of a discharge. Always thoroughly read all installation instructions and product safety information before beginning installation.

Specifications

  • Product Type: Reduced Pressure Zone Detector Assembly (Type II)
  • Size: 3 inch (2½" - 10" series)
  • Lead Content: Lead Free (wetted surface contains less than 0.25% lead by weight)
  • Main Valve Body Material: Ductile Iron Grade 65-45-12
  • Relief Valve Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® powder coating (internal and external surfaces)
  • Shutoff Valves: OSY Resilient Wedge Gate Valve AWWA C515 (UL Classified and FM Approved)
  • Check Seats Material: Stainless steel
  • Relief Valve Seat Material: Stainless steel
  • Disc Holder Material: Stainless steel
  • Elastomer Disc Material: Silicone
  • Spring Material: Stainless steel
  • Clamp Material: AWWA C606

Performance

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 20 psi (1.4 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C ~ 60°C) continuous

Certificates & Approvals

  • Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1047
  • UL Classified (US & Canada)
  • FM Approved
  • IAPMO/CUPC
  • AWWA Standard C511 Compliant
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
  • CSA B64.4

FAQs

What is the primary function of the FEBCO 3 inch LF886V backflow preventer?

The primary function is to protect potable drinking water systems from contamination due to backpressure and backsiphonage, particularly in high hazard and toxic applications. It prevents non-potable water from entering the clean water supply.

Does this backflow preventer comply with lead-free requirements?

Yes, this is a Lead Free MasterSeries® LF886V assembly. The wetted surface of the product that contacts consumable water contains less than 0.25% of lead by weight, complying with low lead installation requirements.

How does the flood sensor feature work?

The assembly includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. To activate its alerting capabilities (call, email, text), an add-on connection kit (BMS, cellular, or Sensor Control Monitor with Wi-Fi) is required and sold separately.

What type of shutoff valves are included with this assembly?

This assembly is fitted with OSY (Outside Stem & Yoke) resilient wedge gate valves, which are UL Classified and FM Approved according to AWWA C515 standards.

What is the ArmorTek® coating?

ArmorTek® is a patented three-part advanced epoxy coating system applied to the ductile iron components. It is engineered to provide integrated protection against electrochemical and microbial-induced corrosion (MIC) on both internal and external surfaces, enhancing durability and extending valve life.
