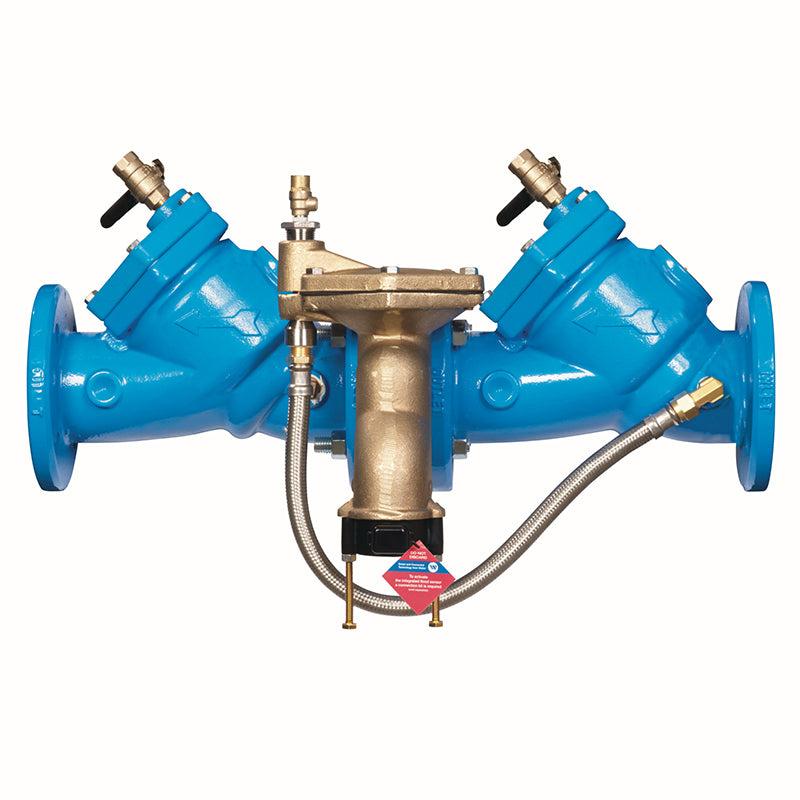

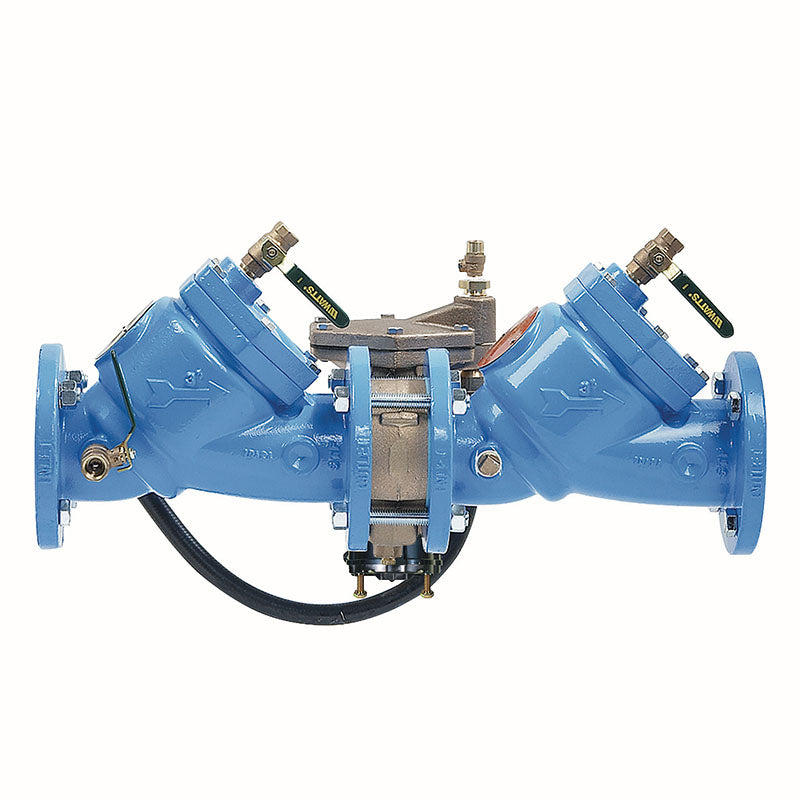

This 3 inch Lead Free Reduced Pressure Zone (RPZ) backflow preventer assembly prevents the reverse flow of polluted water into the potable water supply due to backsiphonage or backpressure.

It is designed for use in continuous pressure piping applications and at cross-connections identified as health hazards, providing essential cross-connection control protection.

Construction & Features

• Features an epoxy coated cast iron body with ArmorTek® coating technology, a patented three-part advanced epoxy system engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal substrate.
• Equipped with a unique patented air-in/water-out relief valve design, which provides high capacity discharge performance during emergency conditions of combined backsiphonage and backpressure, even with fouled checks.
• Includes captured spring check valves, replaceable seats, and stainless steel internal parts for durability and easy servicing.
• A field reversible pressure differential relief valve and top mounted test cocks are integrated for maintenance.
• This assembly is supplied without shutoff valves.

Flood Detection System

• Contains a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
• To activate flood alerts and relay signals for notification, an add-on sensor connection kit is required (sold separately).
• When activated, the flood alerts feature is compatible with Building Management Systems (BMS) and cellular network communication.
• Without the add-on sensor connection kit, the flood sensor functions as a passive component with no external communication.
