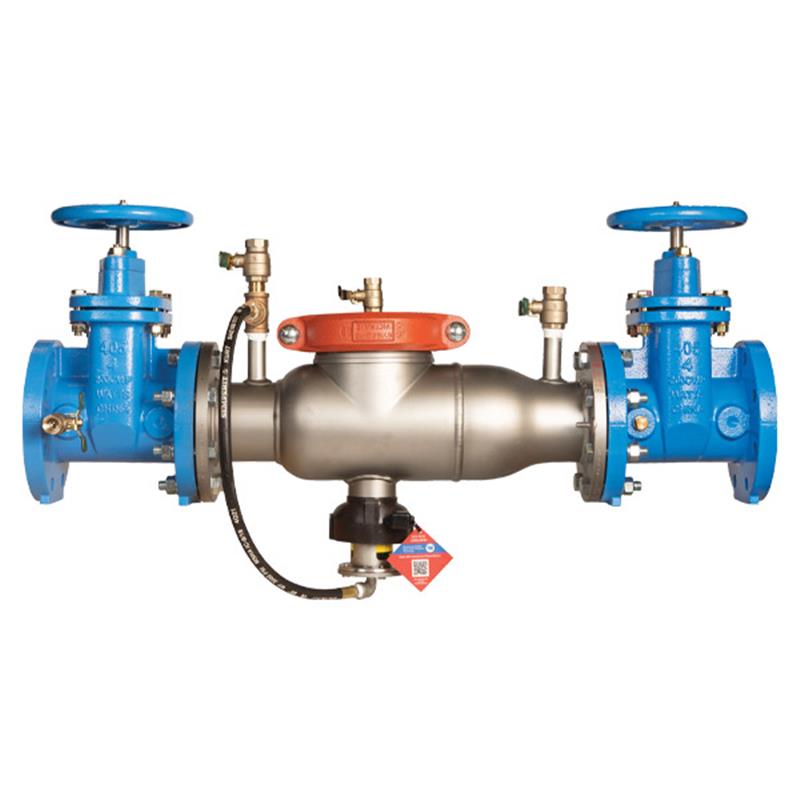

4 4000SS-NRS-FS

Item Number: F0690497
1 1
$10,263.44
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • 4 inch nominal pipe size
  • Weight: 334.0 lb
  • Non-Rising Stem (NRS) shutoff valves
  • Lead Free* stainless steel body
  • SentryPlus Alert® flood sensor included
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 110°F
  • ASSE 1013 and CSA B64.5 approved
  • Compact design for easy installation and maintenance

Description

The AMES 4000SS is a 4 inch lead free reduced pressure zone backflow preventer assembly. It protects potable water from contamination due to backsiphonage or backpressure from fire protection substances and non-potable water. Featuring a lightweight, corrosion-resistant stainless steel body and non-rising stem shutoff valves, this assembly is ideal for health-hazard cross-connections. A built-in SentryPlus Alert® flood sensor detects excessive relief valve discharge and can be activated with an add-on connection kit for remote alerts. Its compact, modular design allows for easy maintenance and installation in various piping applications. Item number F0690497.

Help Me Connect

Flood Sensor Connectivity

  • The integrated flood sensor requires an add-on connection kit for activation and communication to other devices.
  • Compatible connection kit options include those for Building Management Systems (BMS) and cellular communication.
  • The Sensor Control Monitor enables advanced integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi.
View full details

Additional Details

This 4 inch Ames Fire & Waterworks 4000SS Reduced Pressure Zone Assembly is designed to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply. It provides protection against backsiphonage and backpressure in continuous pressure piping applications and at health-hazard cross-connections.

The assembly features a short lay length lightweight stainless steel body, resilient seated shutoff valves with non-rising stems (NRS), and a patented cam-check assembly. It includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve, signaling facility personnel for corrective action.

Key Features

  • Lead Free* construction complies with current installation requirements, with wetted surfaces containing less than 0.25% lead by weight.
  • Stainless steel body provides long-term corrosion resistance, maximum strength, and is approximately half the weight of competitive designs, reducing installation and shipping costs.
  • Short end-to-end dimensions make retrofitting easy.
  • Patented cam-check assembly ensures maximum flow at low pressure drop.
  • No special tools required for servicing, facilitating straightforward maintenance.
  • Compact construction allows for smaller enclosures, optimizing installation space.
  • Stainless steel relief valve features a balanced rolling diaphragm, eliminating sliding seals and lowering maintenance costs.
  • Flood sensor with SentryPlus Alert® technology detects continuous relief valve discharge.
  • Flood alert feature can be activated with an add-on sensor connection kit, compatible with Building Management Systems (BMS), cellular network communication, or the Sensor Control Monitor for BAS integration via RS-485 Modbus or Nexa® platform via Wi-Fi.
  • An add-on connection kit is required to activate the flood sensor. Without the connection kit, the flood sensor functions as a passive component with no communication to other devices. It is crucial to thoroughly read all installation instructions and product safety information before beginning the installation of this product.

Specifications

General

  • Product Type: Reduced Pressure Zone Assembly
  • Series: 4000SS
  • Nominal Pipe Size: 4 inch
  • Shutoff Valve Type: Non-Rising Stem (NRS)
  • Flood Sensor: Yes, SentryPlus Alert® technology
  • Lead Free: Yes (wetted surface contains less than 0.25% lead by weight)
  • Flange Dimension Standard: AWWA Class D

Materials

  • Main Valve Body: 300 Series Stainless Steel
  • Internal Metal Parts: 300 Series Stainless Steel
  • Check Assembly: Noryl®

Performance

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F - 110°F (0.5°C – 43°C)

Certificates & Approvals

  • Standard: AWWA C511-92
  • Approval: ASSE 1013
  • Approval: CSA B64.5

Dimensions (Approximate)

  • Length (A): 40 inches (1016 mm)
  • Width (C for NRS): 12 3/16 inches (310 mm)
  • Height (G): 10 inches (254 mm)
  • Weight (with gates): 235 lbs (107 kg)

FAQs

What is the primary function of this 4000SS backflow preventer?

This 4000SS Reduced Pressure Zone Assembly is designed to protect potable water supplies from contamination caused by backsiphonage or backpressure from non-potable substances or fire protection fluids at health-hazard cross-connections.

Does this backflow preventer include a flood sensor?

Yes, it includes a SentryPlus Alert® flood sensor on the relief valve to detect excessive water discharges. An add-on connection kit is required to activate the sensor's communication features and integrate it with other systems.

What are the material specifications for this assembly?

The main valve body and all internal metal parts are constructed from 300 Series stainless steel for long-term corrosion resistance. The check assembly is made of Noryl®.

What are the maximum operating pressure and temperature limits?

This assembly has a maximum working pressure of 175 psi (12.1 bar) and an operating temperature range of 33°F to 110°F (0.5°C – 43°C).

What certifications does this backflow preventer hold?

This 4000SS assembly is approved by ASSE 1013 and CSA B64.5. It also complies with AWWA C511-92 standards for reduced pressure zone assemblies.
