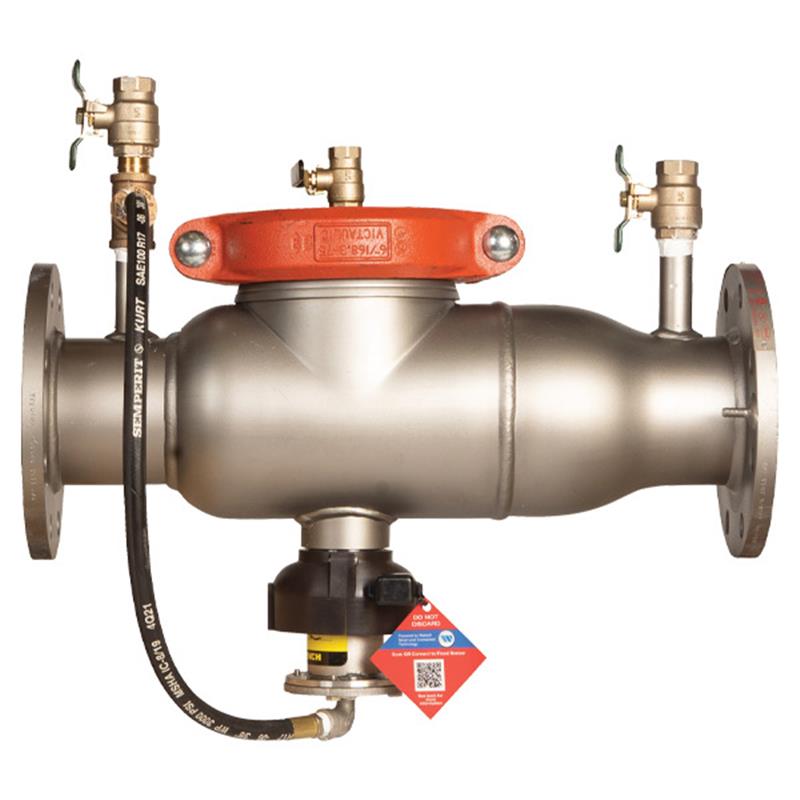

4 4000SS-SR-LG-FS

Item Number: F0691821
1 1
$7,975.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • 4 Inch Reduced Pressure Zone Backflow Preventer
  • Weight: 60.0 lb
  • Lead Free* Stainless Steel Construction
  • SentryPlus Alert® Flood Sensor Included
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 110°F
  • Lightweight body for easier installation and reduced shipping costs
  • Short end-to-end dimensions for retrofitting
  • Less Shutoff Valves for streamlined configuration

Description

The Ames Fire & Waterworks 4000SS-SR-LG-FS is a 4 inch Lead Free Reduced Pressure Zone (RPZ) Backflow Preventer Assembly, essential for safeguarding potable water supplies from health hazards caused by backsiphonage or backpressure. Its robust stainless steel construction ensures corrosion resistance and durability. The lightweight, compact design allows for easier installation and retrofitting. This assembly includes a SentryPlus Alert® flood sensor to detect excessive relief valve discharge, providing crucial early warning when paired with an add-on connection kit. It operates effectively within a 33°F to 110°F temperature range and up to 175 psi maximum working pressure.

Help Me Connect

This backflow preventer includes a passive flood sensor with SentryPlus Alert® technology. To activate and receive alerts for potential flooding events, an add-on sensor connection kit is required. Without this kit, the flood sensor acts as a passive component with no external communication. Connection kit options include those compatible with BMS, cellular communication, or the Sensor Control Monitor for integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.

View full details

Additional Details

The 4 inch Lead Free Reduced Pressure Zone (RPZ) backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage or backpressure. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and from other contaminants found at the service line entrance.

This assembly, supplied without shutoff valves, features a short lay length, a lightweight stainless steel body, test cocks, and a corrosive resistant stainless steel bottom-mounted relief valve with a patented cam-check assembly.

Features

  • Lead Free* construction meets installation requirements.
  • Stainless steel construction provides long-term corrosion resistance and maximum strength.
  • Lightweight stainless steel body is half the weight of competitive designs, reducing installation and shipping costs.
  • Short end-to-end dimensions make retrofitting easy.
  • Cam-check assembly provides maximum flow at low pressure drop.
  • No special tools required for servicing.
  • Compact construction allows for smaller enclosures.
  • Stainless steel relief valve features a balanced rolling diaphragm to eliminate sliding seals and lower maintenance costs.
  • SentryPlus Alert® flood sensor detects excessive water discharges from the relief valve.
  • Flood alert feature activated with an add-on sensor connection kit, compatible with BMS and cellular network communication.
  • Modular design facilitates easy maintenance with a single access cover for in-line repairs.
  • Includes test cocks.

Materials

  • All internal metal parts: 300 Series stainless steel.
  • Main valve body: 300 Series stainless steel.
  • Check assembly: Noryl®.
  • Internal seals: Red silicone rubber.

An add-on connection kit is required to activate the flood sensor. Without the connection kit, the flood sensor is a passive component that has no communication with any other device.

Specifications

  • Backflow Preventer Type: Reduced Pressure Zone (RPZ)
  • Size: 4 inch
  • Main Valve Body Material: 300 Series Stainless Steel
  • Internal Metal Parts Material: 300 Series Stainless Steel
  • Check Assembly Material: Noryl®
  • Internal Seal Material: Red Silicone Rubber
  • Lead Content: Lead Free* (less than 0.25% by weight)
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F - 110°F (0.5°C – 43°C)
  • Flood Sensor: Included with SentryPlus Alert® Technology
  • Shutoff Valves: Less Shutoff Valves

Certificates & Approvals

  • ASSE 1013
  • CSA B64.5
  • UL Classified
  • FM Approved
  • AWWA C511-92

FAQs

What is a Reduced Pressure Zone (RPZ) backflow preventer assembly?

An RPZ backflow preventer assembly is a device designed to protect potable water supplies from contamination by preventing the reverse flow (backsiphonage or backpressure) of non-potable substances. It is commonly used in continuous pressure piping applications and at cross-connections with health hazards.

Is this 4000SS assembly lead-free?

Yes, the Ames Fire & Waterworks 4000SS-SR-LG-FS assembly features Lead Free* construction, meaning the wetted surface contains less than 0.25% lead by weight, complying with lead-free installation requirements.

How does the SentryPlus Alert® flood sensor function?

The SentryPlus Alert® flood sensor detects excessive water discharges from the relief valve, signaling potential flooding events. To activate alerts and enable communication with other devices, an add-on connection kit (compatible with BMS, cellular, or Sensor Control Monitor) is required, otherwise, the sensor remains passive.

What is the maximum operating pressure and temperature range for this backflow preventer?

This backflow preventer is rated for a maximum working pressure of 175 psi (12.1 bar). Its operational temperature range is 33°F to 110°F (0.5°C – 43°C).

Does this particular 4000SS assembly include shutoff valves?

No, this specific 4000SS-SR-LG-FS assembly is supplied without shutoff valves (indicated by the "Less Gates" option and "Less Shutoff" in the product description).
