4 5000SS-DOSY-GPM-FS

Item Number: F0692706
1 1
$11,553.76
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Reduced Pressure Detector Backflow Preventer Assembly
  • Weight: 325.0 lb
  • Size: 4 inch
  • Main Valve Body Material: 300 Series Stainless Steel
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 110°F
  • Includes Flood Sensor with SentryPlus Alert® Technology
  • Gallons Per Minute (GPM) Metered Bypass
  • Approvals: AWWA C511-92, ASME, CSA B64.4, UL Listed, FM Approved

Description

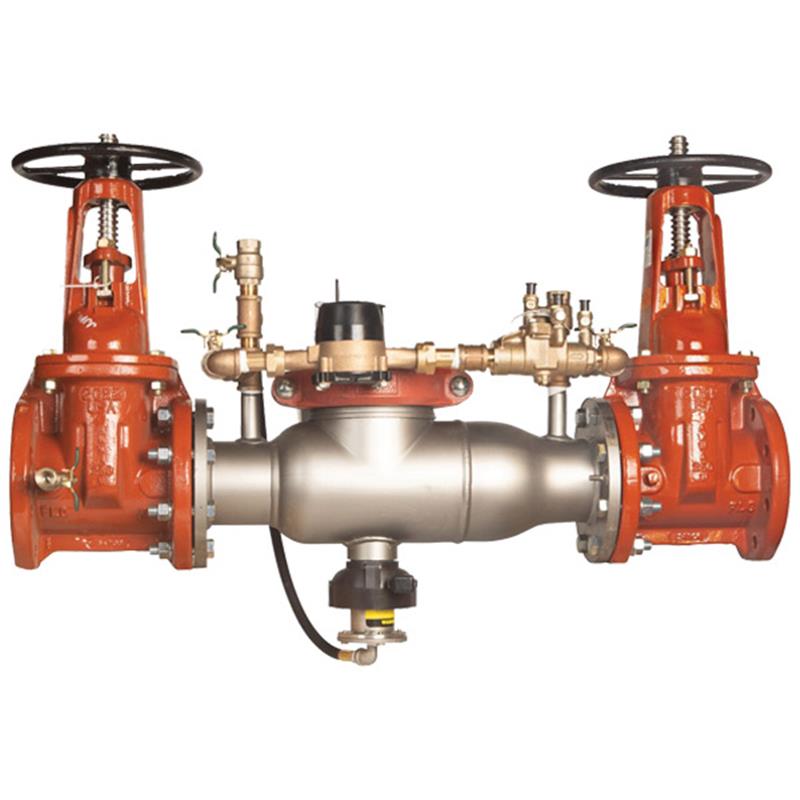

This 4 inch Ames 5000SS Reduced Pressure Detector Backflow Preventer Assembly provides critical protection for non-potable water systems, preventing backflow into potable water supplies. Constructed with a durable 300 Series stainless steel body and internal parts, it offers excellent corrosion resistance and lightweight handling. Key features include domestic OSY gate valves, cam-check valves for optimal flow, and a stainless steel relief valve designed for low maintenance. It also incorporates a gallons per minute (GPM) metered bypass to detect leaks and a SentryPlus Alert® flood sensor to signal excessive water discharge, enhancing system safety. Maximum working pressure is 175 psi.

Help Me Connect

Connections

  • The main assembly features grooved couplings for easy installation into compatible piping systems.
  • The flood sensor requires an add-on sensor connection kit to activate its alert features. This kit enables communication with Building Management Systems (BMS) and cellular networks, or integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.

Application

  • This assembly is suitable for non-potable service applications such as irrigation, fireline, or industrial processing to prevent backflow into drinking water supplies.
View full details

Additional Details

This 4 inch Ames Series 5000SS Reduced Pressure Detector Backflow Preventer Assembly is designed to prevent the reverse flow of fire protection substances and non-potable water from being pumped or siphoned into the potable water supply. It is suitable for health hazard applications, protecting drinking water supplies from dangerous cross-connections.

It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing standard material product, consult your local water authority, building and plumbing codes.

Construction & Features

  • Features a short lay length, lightweight stainless steel body for easy installation and reduced shipping costs.
  • Equipped with domestic outside stem and yoke (OSY) resilient seated gate valves and thermoplastic cam-check valves for maximum flow and low pressure drop.
  • A corrosion-resistant stainless steel bottom-mounted relief valve with a balanced rolling diaphragm eliminates sliding seals, reducing maintenance.
  • Includes a gallons per minute (GPM) metered bypass to detect underground leaks and unauthorized water use.
  • Features a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
  • When paired with an add-on connection kit, the sensor is activated to relay alerts for potential flooding events, compatible with BMS, cellular communication, and integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.
  • No special tools are required for servicing, and its compact design allows for smaller enclosures.
  • Short end-to-end dimensions facilitate easy retrofit installations.

Specifications

General

  • Product Type: Reduced Pressure Detector Backflow Preventer Assembly
  • Series: 5000SS
  • Size: 4 inch
  • Application: Health Hazard, Non-Potable Service, Fireline, Irrigation, Industrial Processing
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F - 110°F (0.5°C - 43°C)

Materials

  • Main Valve Body Material: 300 Series Stainless Steel
  • Internal Metal Parts Material: 300 Series Stainless Steel
  • Check Assembly Material: Noryl®

Features & Components

  • Detector Bypass: Gallons Per Minute (GPM) Meter
  • Shutoffs: Domestic Outside Stem and Yoke (OSY) Resilient Seated Gate Valves
  • Check Valves: Thermoplastic Cam-Check Valves
  • Relief Valve: Stainless Steel with Balanced Rolling Diaphragm
  • Sensor: Flood Sensor with SentryPlus Alert® Technology

Certificates & Approvals

  • AWWA C511-92
  • ASME
  • CSA B64.4
  • UL Listed (Horizontal)
  • FM Approved (Horizontal)

FAQs

What is the primary function of this backflow preventer assembly?

This Ames 5000SS Reduced Pressure Detector Backflow Preventer Assembly is designed to prevent the reverse flow of non-potable water, such as from fire protection or irrigation systems, into the potable drinking water supply. It is intended for health hazard applications.

What is the purpose of the integrated flood sensor?

The SentryPlus Alert® flood sensor detects excessive water discharges from the relief valve. When paired with an add-on connection kit, it triggers alerts to facility personnel, helping to prevent costly flooding and damage.

Can this assembly be used for drinking water applications in the United States?

No, it is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Always consult local water authorities and codes before installation.

What materials are used in the construction of this backflow preventer?

The main valve body and all internal metal parts are constructed from 300 Series stainless steel, providing long-term corrosion resistance and strength. The check assembly material is Noryl®.

What is the maximum operating pressure and temperature range for this unit?

This backflow preventer has a maximum operating pressure of 175 psi (12.1 bar) and is designed to operate within a temperature range of 33°F - 110°F (0.5°C - 43°C).
