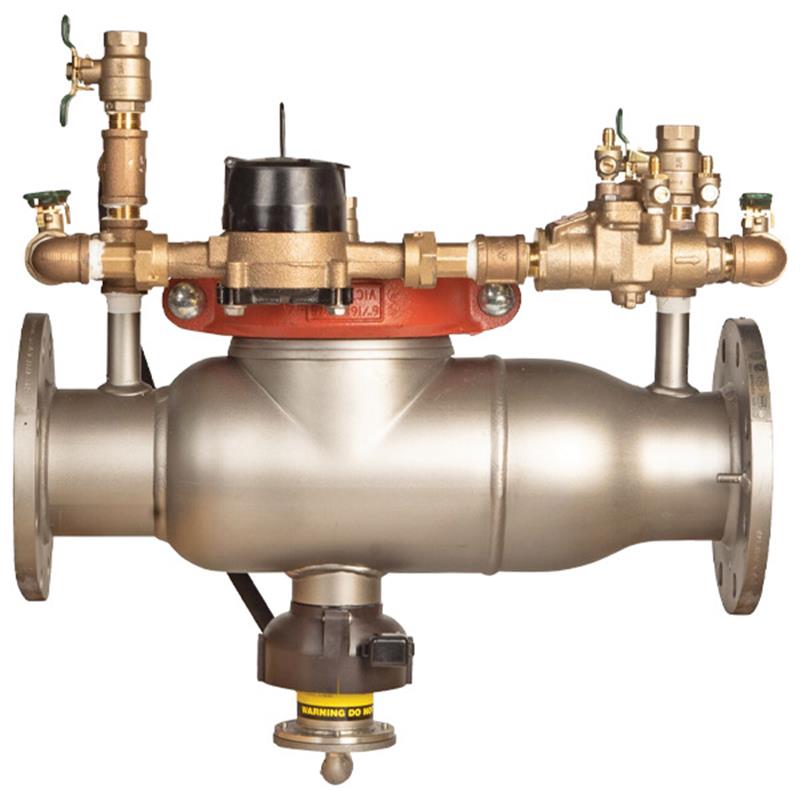

4 5000SS-LG-GPM-FS

Item Number: F0690544
1 1
$9,408.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 4 inch
  • Weight: 52.8 lb
  • Body Material: 300 Series Stainless Steel
  • Maximum Operating Pressure: 175 PSI
  • Flood sensor with SentryPlus Alert® technology
  • Gallon per minute meter included
  • Lightweight stainless steel construction
  • Short end-to-end dimensions
  • ASSE 1047, CSA B64.4, UL, FM Approved

Description

The Ames 4 inch 5000SS Reduced Pressure Detector Backflow Preventer Assembly is engineered to protect potable water supplies by preventing dangerous cross-connections from non-potable sources like fire protection systems. Ideal for health hazard applications, this assembly features a lightweight stainless steel body, short lay length for easy retrofitting, and robust cam-check valves. It includes a SentryPlus Alert® flood sensor to detect excessive relief valve discharges and a gallon per minute meter for leak detection. Certified by AWWA C511-92, ASSE 1047, CSA B64.4, UL, and FM Approved, ensuring reliable performance.

Help Me Connect

Flood Sensor Connectivity

This Ames 5000SS Reduced Pressure Detector Assembly features an integrated flood sensor with SentryPlus Alert® technology. To activate and utilize the flood alert capabilities, an add-on sensor connection kit is required. Without this connection kit, the flood sensor will remain a passive component and will not communicate with other devices. Retrofit sensor connection kits are also available for existing installations.

Connection kit options allow for integration with various systems including BMS and cellular communication. When paired with the Sensor Control Monitor, the assembly can integrate with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi connectivity, enabling maintenance alerts to be delivered remotely.

View full details

Additional Details

This 4 inch Ames 5000SS Reduced Pressure Detector Backflow Preventer Assembly is designed to protect potable water supplies from dangerous cross-connections, preventing the reverse flow of fire protection substances and non-potable water due to backsiphonage or backpressure. It is ideal for continuous pressure piping applications and cross-connections identified as health hazards, including service line entrances. This compact modular design comes without the shutoff valves.


WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing standard material product, consult your local water authority, building and plumbing codes.

Design & Construction

  • Features a compact, modular design with a short lay length and lightweight stainless steel body, reducing installation and shipping costs.
  • Equipped with bronze body ball valve test cocks for easy maintenance.
  • Incorporates durable thermoplastic cam-check valves.
  • Includes a corrosive-resistant stainless steel bottom mounted relief valve with a balanced rolling diaphragm to eliminate sliding seals and lower maintenance costs.
  • Designed with a bronze replaceable seat and disc holder.

Detector Features

  • A gallon per minute meter (GPM meter) is furnished to detect underground leaks and unauthorized water use.
  • Contains a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
  • An add-on sensor connection kit is required to activate the flood sensor, which relays alerts for potential flooding events. Without this kit, the sensor is a passive component.
  • Connection kit options include compatibility with BMS and cellular communication, or integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi when paired with the Sensor Control Monitor.

Specifications

General

  • Brand: Ames
  • Product Series: 5000SS
  • Pipe Size: 4 inch
  • Working Temperature Range: 33°F - 110°F (0.5°C - 43°C)
  • Maximum Operating Pressure: 175 PSI (12.1 bar)

Materials

  • Body Material: 300 Series Stainless Steel
  • Main Valve Body: 300 Series Stainless Steel
  • Check Assembly Material: Noryl®
  • Relief Valve Material: Stainless Steel
  • Seat Material: Bronze (Replaceable)
  • Disc Holder Material: Bronze
  • Flange Dimension: AWWA Class D

Certificates & Approvals

  • AWWA C511-92
  • IAPMO R&T
  • ASSE 1047
  • CSA B64.4
  • UL Listed
  • FM Approved

FAQs

What is the primary purpose of the Ames 5000SS Reduced Pressure Detector Backflow Preventer Assembly?

Its primary purpose is to protect potable water supplies from dangerous cross-connections, preventing the reverse flow of non-potable substances from fire protection, irrigation, or industrial processing systems. It is designed for health hazard applications.

Does this backflow preventer assembly include a flood sensor?

Yes, it includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. An add-on sensor connection kit is required to activate this feature and enable communication.

What are the main materials used in the construction of this assembly?

The main body and main valve body are constructed from 300 Series Stainless Steel, providing long-term corrosion resistance. The check assembly is made of Noryl®, and the relief valve is stainless steel.

What certifications and approvals does the 5000SS assembly hold?

This assembly is certified and approved by several bodies, including AWWA C511-92, IAPMO R&T, ASSE 1047, CSA B64.4, UL Listed, and FM Approved.

What is the maximum operating pressure for this 4 inch assembly?

The maximum operating pressure for this 4 inch Ames 5000SS Reduced Pressure Detector Backflow Preventer Assembly is 175 PSI (12.1 bar).
