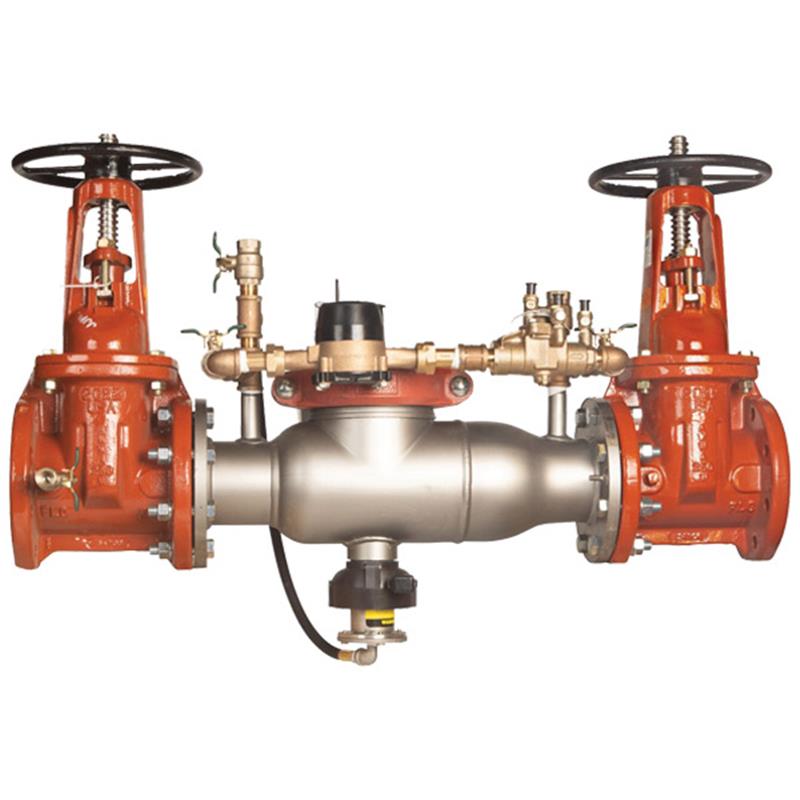

The Ames Fire & Waterworks Series 5000SS Reduced Pressure Detector Assembly, 4 inch, with OSY shutoffs, cubic feet meter, and flood sensor, is designed to protect drinking water supplies from dangerous cross-connections.

This backflow preventer assembly prevents the reverse flow of hazardous materials into the potable water supply due to backsiphonage or backpressure, ideal for health hazard applications in continuous pressure piping systems such as fireline, irrigation, or industrial processing.

Key Features

• Stainless steel construction throughout provides long-term corrosion resistance and maximum strength.
• Features a SentryPlus Alert® flood sensor to detect excessive water discharges from the relief valve, integrating with compatible add-on connection kits (BMS, cellular, or Sensor Control Monitor via RS-485 Modbus or Nexa® Wi-Fi) for maintenance alerts.
• Lightweight stainless steel body reduces installation and shipping costs.
• Short end-to-end dimensions make retrofit installations easy.
• Bottom-mounted relief valve reduces clearance requirements when installed against an outside wall.
• Thermoplastic cam-check valves provide maximum flow at low pressure drop.
• No special tools required for servicing.
• Compact construction allows for smaller enclosures.
• Stainless steel relief valve with a balanced rolling diaphragm eliminates sliding seals and lowers maintenance costs.
• Cubic feet per minute meter (CFM) helps detect underground leaks and unauthorized water use.
• UL and FM Approved outside stem and yoke (OSY) resilient seated gate valves with flanged connections.
• Bronze body ball valve test cocks.

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building, and plumbing codes.
