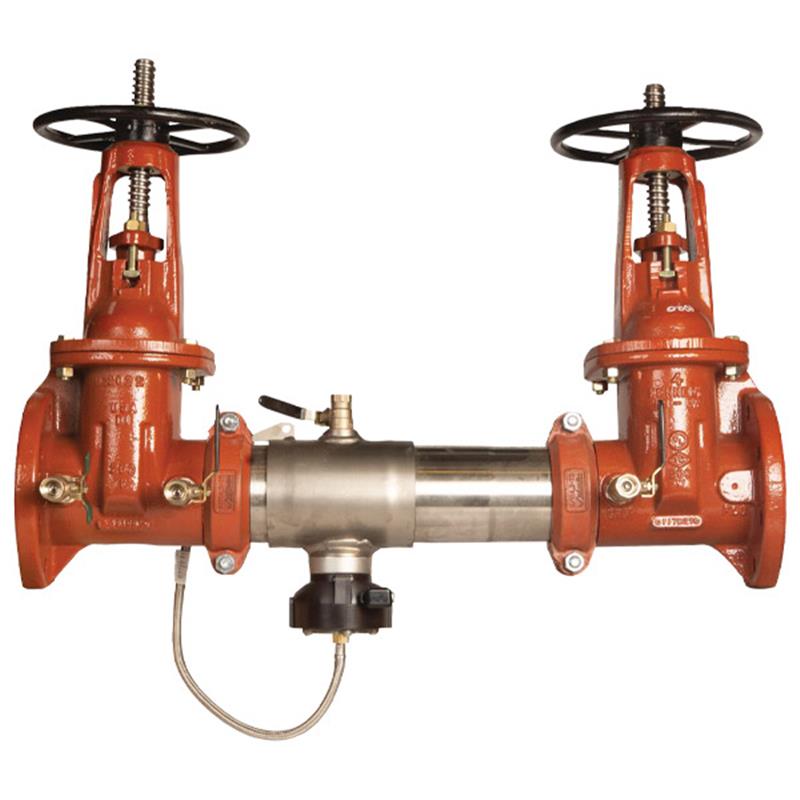

4 957-DOSY-FS

Item Number: F113042
1 1
$10,436.09
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 4 inch
  • Weight: 265.0 lb
  • Assembly Type: Reduced Pressure Zone
  • Housing: 304 Stainless Steel
  • Shutoff Valves: Domestic OSY Gate Valves
  • Flood Sensor: SentryPlus Alert® Technology
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F - 140°F
  • Lead Free* Construction

Description

The 4 inch Watts Series 957 Reduced Pressure Zone (RPZ) backflow preventer protects potable water systems from contamination by backsiphonage or backpressure in health hazard applications. Constructed with a 304 stainless steel housing, UL and FM approved domestic OSY gate valves, and groove couplings for straightforward installation, this compact unit includes a SentryPlus Alert® flood sensor. This sensor detects excessive relief valve discharge and can be activated with an add-on connection kit to send alerts via BMS, cellular, or Wi-Fi through the Nexa® platform. It operates up to 175 PSI and is lead-free, ensuring safety and compliance. Item number F113042.

Help Me Connect

This 4 inch reduced pressure zone assembly is designed for straightforward installation with groove couplings that facilitate easy pipe alignment. It is approved for horizontal installation.

  • When installing a drain line on Series 957 backflow preventers, use 957AG air gaps.
  • Attach the air gap brackets directly onto the flood sensor for proper functionality.
View full details

Additional Details

This 4 inch Watts Series 957 Reduced Pressure Zone (RPZ) assembly backflow preventer provides protection to potable water systems from contamination caused by backpressure or backsiphonage, especially where potential health hazards exist. This extremely compact and lighter-than-traditional assembly is approved for horizontal installation.

The assembly includes a stainless steel body with a quick access sleeve, torsion spring check valves, domestic outside stem and yoke (OSY) resilient seated gate valves, test cocks, and a corrosive resistant stainless steel bottom-mounted pressure relief valve. It features a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When paired with an add-on connection kit, the sensor activates to relay alerts for potential flooding events.

Features

  • Flood sensor with SentryPlus Alert® technology detects continuous discharge from the relief valve
  • Add-on sensor connection kit extends flood monitoring on compatible assemblies
  • Integrates with the Sensor Control Monitor to deliver maintenance alerts to BAS via RS-485 Modbus or the Nexa® platform by Wi-Fi connectivity
  • 304 (Schedule 40) stainless steel housing and sleeve
  • UL and FM outside stem and yoke resilient seated gate valves
  • Bottom mounted cast stainless steel relief valve
  • Extremely compact design allows small enclosures to be used
  • Patented torsion spring check modules for unmatched ease of serviceability and lowest pressure loss
  • Groove couplings for ease of installation and pipe alignment
  • Wetted surface contains less than 0.25% of lead by weight (Lead Free*)
  • Available with quarter-turn ball valve shutoffs (sizes 2½", 3", and 4")

NOTICE: An add-on connection kit is required to activate the flood sensor. Without the connection kit, the sensor is a passive component that has no communication with any other device.

Specifications

  • Size: 4 inch
  • Assembly Type: Reduced Pressure Zone (RPZ)
  • Housing & Sleeve Material: 304 (Schedule 40) Stainless Steel
  • Shutoff Valves: Domestic Outside Stem and Yoke (OSY) Resilient Seated Gate Valves
  • Relief Valve: Bottom Mounted Cast Stainless Steel
  • Check Discs: Reversible Silicone or EPDM
  • Elastomers: EPDM, Silicone, Buna-N
  • Torsion Spring Checks: Noryl®, Stainless Steel
  • Test Cocks: Lead Free* Bronze Body
  • Pins & Fasteners: 300 Series Stainless Steel
  • Springs: Stainless Steel

Performance Data

  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Lead Content: Wetted Surface Less Than 0.25% by Weight

FAQs

What is the primary function of the Watts Series 957 Reduced Pressure Zone Assembly?

It protects potable water systems from contamination caused by backsiphonage or backpressure, especially in health hazard applications where a potential health risk exists.

Does this backflow preventer include a flood sensor?

Yes, it includes a flood sensor with SentryPlus Alert® technology designed to detect excessive water discharges from the relief valve.

How does the flood sensor communicate alerts?

An add-on connection kit is required to activate the sensor. Once activated, it can relay alerts to facility personnel via BMS, cellular communication, or integrate with a Building Automation System (BAS) using RS-485 Modbus or the Nexa® platform via Wi-Fi.

What materials are used for the main housing and sleeve of this backflow preventer?

The housing and sleeve are constructed from durable 304 (Schedule 40) stainless steel, providing corrosion resistance and longevity.

What are the maximum operating pressure and temperature ratings for this assembly?

This assembly has a maximum working pressure of 175 PSI (12.1 bar) and an operating temperature range of 33°F to 140°F (0.5°C to 60°C).
