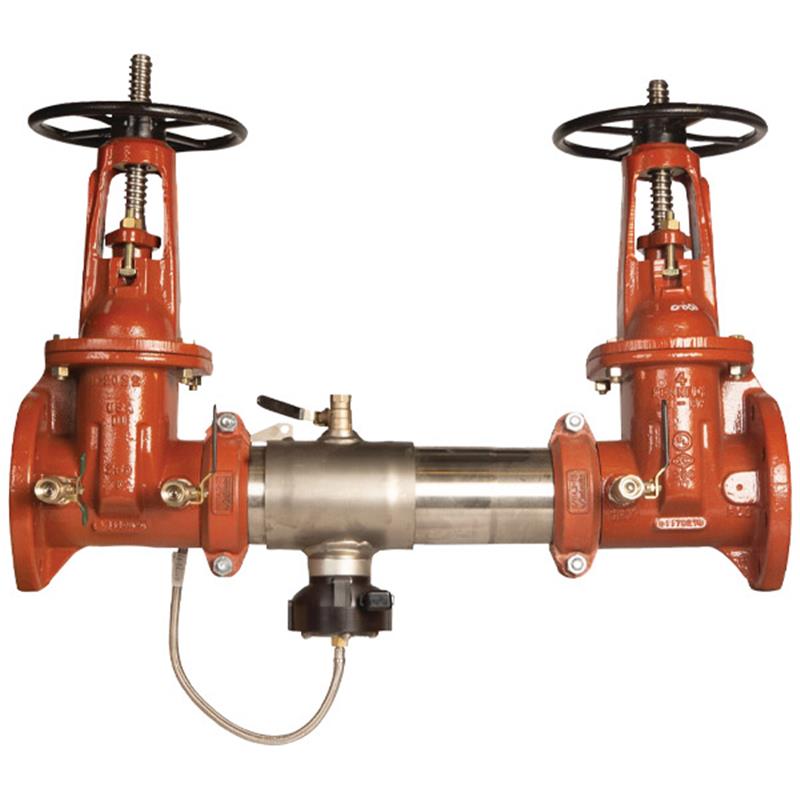

4 957-OSY-FS

Item Number: F111586
1 1
$9,250.13
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 4 inch
  • Weight: 242.0 lb
  • Housing & Sleeve: 304 (Schedule 40) stainless steel
  • Shutoff Valves: UL and FM approved OSY resilient seated gate valves
  • Flood Sensor: SentryPlus Alert® technology
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 140°F
  • Compact Design: Yes
  • Lead Free* bronze body test cocks

Description

This 4 inch WATTS Series 957 Reduced Pressure Zone Assembly backflow preventer protects potable water systems from contamination by preventing backpressure or backsiphonage. It features a durable 304 (Schedule 40) stainless steel housing and UL and FM approved OSY shutoff valves. An integrated SentryPlus Alert® flood sensor detects excessive water discharges from the relief valve, providing alerts when paired with a connection kit. Its compact design is 70% lighter than traditional models, ensuring easy installation and serviceability. Rated for up to 175 psi, this assembly is approved by ASSE, AWWA, CSA B64.4, UL, FM, and NSF. Item number F111586.

Help Me Connect

Installation & Compatibility

  • This assembly is approved for horizontal installation, provided it is installed in accordance with the direction of the flow arrow.
  • It features groove couplings for ease of installation and precise pipe alignment.

Flood Sensor Connectivity

The integrated flood sensor's full alert capabilities are activated when paired with an add-on connection kit. Connection kit options include those compatible with BMS (Building Management Systems), cellular communication networks, and the Sensor Control Monitor, which enables integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.

View full details

Additional Details

This 4 inch reduced pressure zone assembly backflow preventer provides protection to the potable water system from contamination in accordance with national plumbing codes. It helps stop the reverse flow of liquids due to backpressure or backsiphonage, where potential health hazards exist.

The assembly includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When paired with an add-on connection kit, the sensor is activated to relay alerts for potential flooding events.

Features

  • Sizes 2½", 3", and 4" available with quarter-turn ball valve shutoffs
  • Replaceable check disc rubber
  • Extremely compact design, 70% lighter than traditional designs
  • 304 (Schedule 40) stainless steel housing and sleeve
  • Groove fittings allow integral pipeline adjustment
  • Patented torsion spring checks provide lowest pressure loss
  • Unmatched ease of serviceability
  • Bottom mounted cast stainless steel relief valve
  • Available with grooved butterfly valve shutoffs
  • Sensor on relief valve for flood detection
  • Flood alerts feature activated with add-on sensor connection kit, compatible with BMS and cellular network communication
  • UL Classified and FM Approved outside stem and yoke resilient seated gate valves (OSY)

Specifications

  • Assembly Type: Reduced Pressure Zone (RPZ)
  • Size: 4 inch
  • Shutoff Valves: OSY (Outside Stem and Yoke) Resilient Seated Gate Valves
  • Housing & Sleeve: 304 (Schedule 40) stainless steel
  • Elastomers: EPDM, silicone, and Buna-N
  • Torsion Spring Checks: Noryl®, stainless steel
  • Check Discs: Reversible silicone or EPDM
  • Test Cocks: Lead Free* bronze body
  • Pins & Fasteners: 300 Series stainless steel
  • Springs: Stainless steel

Pressure - Temperature

  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • Maximum Working Pressure: 175 psi (12.1 bar)

Certificates & Approvals

  • Approved by: Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • Approval: AWWA C511-97
  • Approval: ASSE 1013
  • Approval: CSA B64.4
  • Approval: cULus Classified
  • Approval: FM Approved
  • Certification: NSF Certified to NSF/ANSI 61-G

FAQs

What is the primary function of this backflow preventer?

This 4 inch Watts Series 957 Reduced Pressure Zone Assembly protects potable water systems from contamination caused by backpressure or backsiphonage, in accordance with national plumbing codes.

What materials are used for the main components?

The housing and sleeve are constructed from 304 (Schedule 40) stainless steel. Elastomers are EPDM, silicone, and Buna-N, while test cocks feature a Lead Free* bronze body.

Does this assembly include a flood detection feature?

Yes, it includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When connected with an add-on kit, it can relay alerts to facility personnel.

What are the operating pressure and temperature limits?

This backflow preventer has a maximum working pressure of 175 psi (12.1 bar) and an operating temperature range of 33°F to 140°F (0.5°C to 60°C).

What approvals or certifications does this product hold?

This product is approved by FCCCHR-USC, AWWA C511-97, ASSE 1013, CSA B64.4, cULus Classified, FM Approved, and NSF Certified to NSF/ANSI 61-G.
