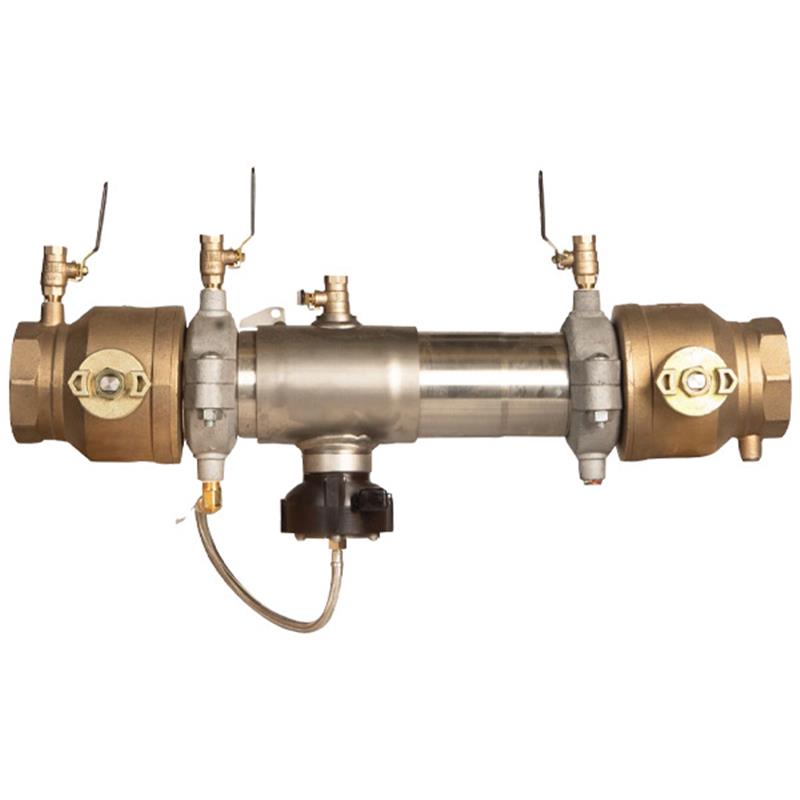

4 957-QT-FS

Item Number: F111762
1 1
$9,127.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Reduced Pressure Zone Assembly
  • Weight: 70.0 lb
  • Size: 4 inch
  • Shutoff Valves: Quarter-turn ball valves
  • Flood Detection: Integrated flood sensor with SentryPlus Alert® technology
  • Housing & Sleeve Material: 304 (Schedule 40) stainless steel
  • Maximum Working Pressure: 175 psi
  • Approvals: AWWA C511-97, ASSE 1013, CSA B64.4, NSF
  • Compact design with groove couplings

Description

The WATTS 4 inch 957-QT-FS Reduced Pressure Zone Assembly Backflow Preventer prevents reverse flow of contaminated water due to backpressure or backsiphonage, protecting potable water. This compact unit features a durable 304 stainless steel housing, quarter-turn ball valve shutoffs, and a corrosion-resistant relief valve. It includes an integrated flood sensor with SentryPlus Alert® technology to detect continuous discharge, offering enhanced monitoring capabilities. Approved for horizontal installation, this assembly is certified by AWWA C511-97, ASSE 1013, CSA B64.4, and NSF. Item number F111762.

Help Me Connect

Installation Guidance

  • This backflow preventer is approved for horizontal installation, provided it is installed in accordance with the direction of the flow arrow.
  • It features groove couplings for ease of installation and pipe alignment.
  • To activate the integrated flood sensor, an add-on connection kit is required (not included). This kit is a passive component and necessary for information downloads (RPZ-957/957DCDA).
  • The flood sensor can integrate with a Sensor Control Monitor, enabling maintenance alerts to Building Automation Systems (BAS) via RS-485 Modbus or to the Nexa® platform through Wi-Fi. Connection kit options include BMS and cellular communication.
  • When installing a drain line on Series 957 backflow preventers, use 957AG air gaps. The air gap brackets should be attached directly onto the flood sensor.
View full details

Additional Details

This 4 inch reduced pressure zone assembly backflow preventer is designed to prevent the reverse flow of liquids caused by backpressure or backsiphonage, especially in situations where a health hazard exists. It features an extremely compact design and integrates a flood sensor for enhanced monitoring.

Features

  • Integrated flood sensor with SentryPlus Alert® technology to detect continuous discharge from the relief valve
  • Compatibility with an add-on sensor connection kit for extending flood monitoring on compatible assemblies
  • Integration with Sensor Control Monitor to deliver maintenance alerts to BAS via RS-485 Modbus or the Nexa® platform by Wi-Fi connectivity
  • Extremely compact design allows small enclosures to be used
  • Groove couplings for ease of installation and pipe alignment
  • Bottom mounted cast stainless steel relief valve
  • Replaceable check disc rubber
  • Quarter-turn ball valve shutoffs
  • Corrosion-resistant stainless steel body
  • Torsion spring check valves
  • Test cocks

Materials

  • Housing & Sleeve: 304 (Schedule 40) stainless steel
  • Elastomers: EPDM, silicone, and Buna-N
  • Torsion Spring Checks: Noryl®, stainless steel
  • Check Discs: Reversible silicone or EPDM
  • Test Cocks: Lead Free* bronze body
  • Pins & Fasteners: 300 Series stainless steel
  • Springs: Stainless steel

Specifications

  • Product Type: Reduced Pressure Zone Assembly Backflow Preventer
  • Size: 4 inch
  • Shutoff Valves: Quarter-turn ball valves
  • Flood Detection: Integrated flood sensor with SentryPlus Alert® technology
  • Installation Orientation: Horizontal
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)

Materials

  • Housing & Sleeve Material: 304 (Schedule 40) stainless steel
  • Elastomer Material: EPDM, silicone, Buna-N
  • Torsion Spring Check Material: Noryl®, stainless steel
  • Check Disc Material: Reversible silicone or EPDM
  • Test Cock Body Material: Lead Free bronze
  • Pins & Fasteners Material: 300 Series stainless steel
  • Spring Material: Stainless steel

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C511-97
  • ASSE 1013
  • CSA B64.4
  • NSF Certified to NSF/ANSI 61-G

FAQs

What is the primary function of this 4 inch Reduced Pressure Zone Assembly?

The primary function of this 4 inch Reduced Pressure Zone Assembly is to prevent the reverse flow of non-potable liquids into the potable water supply, protecting against contamination from backpressure or backsiphonage.

What type of shutoff valves are included with the 957-QT-FS model?

This model comes equipped with 2½" - 4" quarter-turn ball valves for effective shutoff and isolation.

Does this backflow preventer have a flood detection feature?

Yes, it includes an integrated flood sensor with SentryPlus Alert® technology, designed to detect excessive water discharges from the relief valve.

What materials are used for the main housing and sleeve of this assembly?

The housing and sleeve are constructed from robust 304 (Schedule 40) stainless steel, providing durability and corrosion resistance.

What are the specific installation requirements for this unit?

This backflow preventer is approved for horizontal installation and features groove couplings for straightforward pipe connection and alignment.
