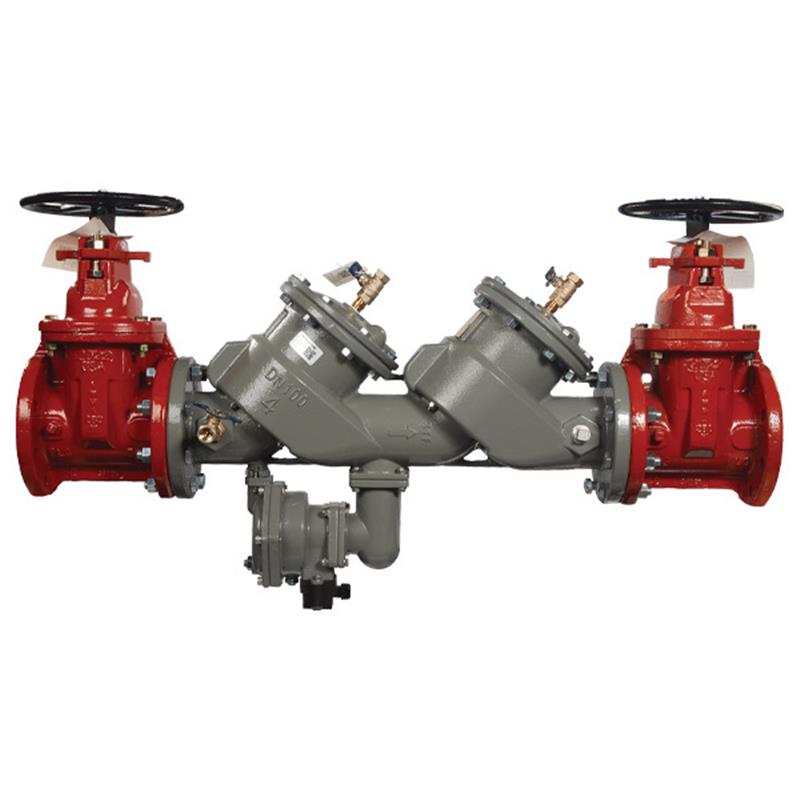

4 LF860-DNRS-FS

Item Number: F683106
1 1
$12,160.13
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • 4 inch Lead Free Reduced Pressure Zone Backflow Preventer
  • Weight: 455.0 lb
  • Protects against backpressure and backsiphonage in high hazard applications
  • ArmorTek® epoxy coating for corrosion resistance
  • Stainless steel relief valve seat and check components
  • Integrated flood sensor with SentryPlus Alert® technology
  • Includes domestic Non-Rising Stem (NRS) gate valves
  • Max. Working Pressure: 175 psi
  • Temperature Range: 33°F - 140°F

Description

The 4 inch FEBCO LF860 Lead Free Reduced Pressure Zone (RPZ) Backflow Preventer assembly is designed for high hazard/toxic applications, protecting potable water systems from backpressure and backsiphonage. It features an ArmorTek® epoxy-coated ductile iron body for advanced corrosion resistance and stainless steel internal components for durability. This assembly includes domestic non-rising stem (NRS) gate valves and an integrated SentryPlus Alert® flood sensor to detect excessive relief valve discharge. It is ASSE 1013, UL Classified, and FM Approved, ensuring reliable performance for industrial installations. Item number F683106.

Help Me Connect

Flood Sensor Connectivity

The integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. To activate the sensor for relaying alerts about potential flooding, an add-on connection kit is required. Connection kit options include Building Management System (BMS) integration, cellular communication, or the Sensor Control Monitor which allows integration with a Building Automation System (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi.

View full details

Additional Details

This 4 inch lead free FEBCO MasterSeries LF860 Reduced Pressure Zone assembly is designed to protect potable drinking water systems from backpressure and backsiphonage conditions in high hazard/toxic applications.

The assembly features a built-in flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve, providing alerts when paired with an add-on connection kit.

Key Features

  • Lead Free construction complies with low lead installation requirements.
  • ArmorTek® coating technology, a patented three-part advanced epoxy system, protects the ductile iron body against microbial-induced corrosion (MIC) and exposed metal substrate corrosion.
  • Stainless steel relief valve seat and stainless steel check components ensure maximum performance and durability.
  • Includes domestic non-rising stem (NRS) resilient seated gate valves.
  • Inline serviceable assembly requires no special tools for maintenance.
  • Features a modular and repairable pressure differential relief valve, along with clapper check assemblies.
  • Reversible and replaceable discs and field replaceable seats.

Specifications

General

  • Product Type: Reduced Pressure Zone (RPZ) Backflow Preventer Assembly
  • Model: LF860
  • Size: 4 inch
  • Shutoff Valves: Domestic Non-Rising Stem (NRS) Gate Valves
  • Application: High Hazard / Toxic
  • Flood Sensor: Integrated with SentryPlus Alert® technology

Materials

  • Main Valve Body: Ductile iron Grade 65-45-12
  • Relief Valve Body: Ductile iron Grade 65-45-12
  • Coating: ArmorTek® powder coating (internal and external surfaces)
  • Shutoff Valves: NRS resilient wedge gate valve AWWA C509
  • Check Seats: Stainless steel
  • Relief Valve Seat: Stainless steel
  • Disc Holder: Stainless steel
  • Elastomer Disc: Silicone
  • Spring: Stainless steel

Performance

  • Max. Working Pressure: 175 psi (12.1 bar)
  • Min. Working Pressure: 20 psi (1.4 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C ~ 60°C) continuous
  • Lead Content: Less than 0.25% by weight (wetted surface)

Certificates & Approvals

  • Approved by Foundation for Cross-Connection Control and Hydraulic Research (FCCCHR-USC)
  • ASSE 1013 Listed
  • UL Classified (US & Canada)
  • FM Approved
  • IAPMO
  • AWWA Standard C511 Compliant
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
  • CSA B64.4
  • NSF Certified to NSF/ANSI 61-G

FAQs

What type of fluid protection does the FEBCO LF860 assembly provide?

The FEBCO LF860 is a Reduced Pressure Zone (RPZ) assembly designed to protect potable drinking water systems from both backpressure and backsiphonage conditions, specifically for high hazard/toxic applications.

How does the ArmorTek® coating benefit this backflow preventer?

The ArmorTek® coating is a patented three-part advanced epoxy system applied to the ductile iron body. It is engineered to limit microbial-induced corrosion (MIC) and protect exposed metal substrates, enhancing the durability and lifespan of the assembly.

What are the shutoff valves included with this 4-inch assembly?

This 4-inch FEBCO LF860 assembly comes with domestic non-rising stem (NRS) resilient seated gate valves, which comply with AWWA C509 standards.

What is the purpose of the integrated flood sensor?

The integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. When paired with an add-on connection kit, it can relay alerts to personnel about potential flooding events.

What are the maximum and minimum operating pressures for this device?

This backflow preventer has a maximum working pressure of 175 psi (12.1 bar) and a minimum working pressure of 20 psi (1.4 bar).
