Detects flood events with SentryPlus Alert technology
Protects against high hazard (toxic) fluids
Lead Free Construction
Description

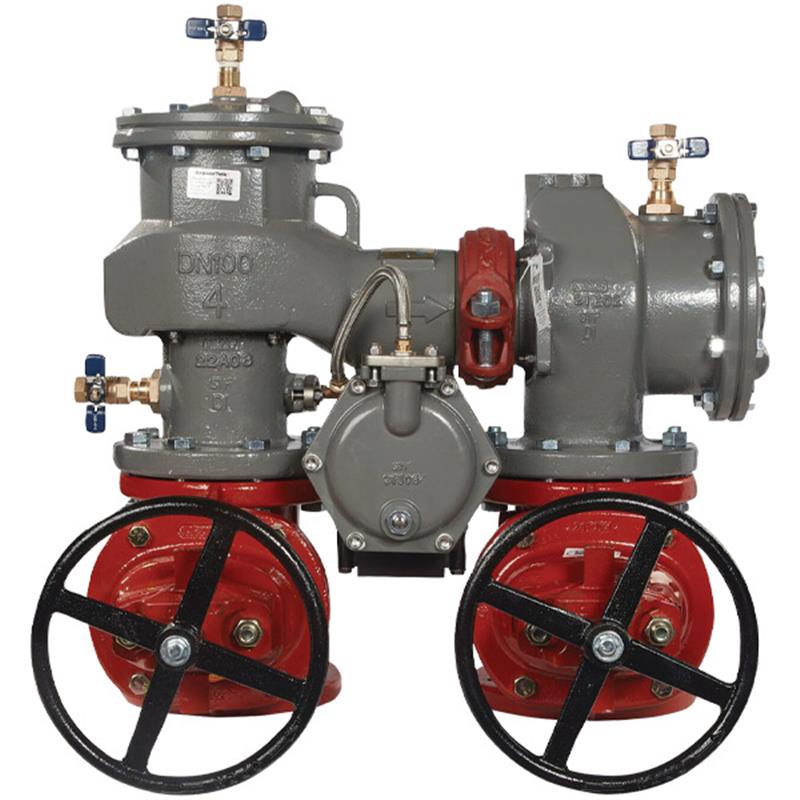

This 4 inch lead free ductile iron reduced pressure zone (RPZ) backflow preventer assembly provides critical protection against high hazard (toxic) fluids in industrial water services. Featuring a robust ductile iron body with patented ArmorTek epoxy coating, it offers advanced corrosion resistance. Internal stainless steel components ensure maximum performance and durability. The integrated SentryPlus Alert flood sensor detects continuous relief valve discharge and can relay alerts via BMS, cellular communication, or the Sensor Control Monitor for integration with BAS via Modbus or Wi-Fi through the Nexa platform. Item number F683142.
Help Me Connect
Primary Connection
This 4 inch reduced pressure zone (RPZ) backflow preventer assembly is designed for installation into water services for industrial installations and applications.
It includes domestic non-rising stem (NRS) shutoff valves for controlling water flow.
Sensor Integration
The integrated flood sensor with SentryPlus Alert® technology connects with an add-on sensor connection kit to extend flood monitoring capabilities.
For remote monitoring, the sensor can integrate with a Sensor Control Monitor, enabling connectivity to Building Automation Systems (BAS) via RS-485 Modbus or to the Nexa® platform through Wi-Fi.
Additional connection kit options support BMS and cellular communication for versatile alert delivery.
This 4 inch lead free MasterSeries® configurable reduced pressure zone backflow preventer assembly is designed to protect against high hazard (toxic) fluids in water services to industrial installations and applications.
Flood Detection & Monitoring
Features a flood sensor with SentryPlus Alert® technology to detect continuous discharge from the relief valve
Add-on sensor connection kit extends flood monitoring on compatible assemblies
Integrates with the Sensor Control Monitor to deliver maintenance alerts to BAS via RS-485 Modbus or the Nexa® platform by Wi-Fi connectivity
Connection kit options include BMS, cellular communication, and the Sensor Control Monitor
Construction & Durability
Ductile iron body construction with patented 3-part advanced epoxy coating system (ArmorTek®) designed to limit both microbial induced (MIC) and exposed metal substrate corrosion
Combines the use of a stainless-steel relief valve seat and stainless-steel check components for maximum performance and durability
Stainless steel springs ensure reliable operation
Lead free construction for safe water applications
Design & Components
Configurable N-Pattern design for versatile installation
Includes domestic non-rising stem (NRS) shutoff valves
Consists of a lead free body, test cocks, spring loaded check valves, and a pressure differential relief valve
Field reversible relief valve for maintenance flexibility
Specifications
Product Type: Reduced Pressure Zone Backflow Preventer Assembly
Size: 4 inch
Body Material: Ductile Iron
Coating: Patented 3-part ArmorTek® Epoxy Coating System
What is the primary function of this backflow preventer?
This backflow preventer assembly is designed to protect industrial water services from contamination by high hazard (toxic) fluids, ensuring water safety in critical applications.
How does the SentryPlus Alert technology work?
SentryPlus Alert technology includes a flood sensor that detects continuous discharge from the relief valve. When paired with an add-on connection kit, it can relay alerts for potential flooding events.
What type of corrosion protection does this assembly have?
The ductile iron body is fused with a patented 3-part ArmorTek® epoxy coating system, which is designed to limit both microbial induced (MIC) and exposed metal substrate corrosion.
What kind of shutoff valves are included with this assembly?
This assembly is equipped with domestic non-rising stem (NRS) shutoff valves, which are commonly used in various plumbing and industrial applications.
Can the flood sensor integrate with building management systems?
Yes, the flood sensor can integrate with Building Automation Systems (BAS) via an optional Sensor Control Monitor, supporting RS-485 Modbus or Wi-Fi connectivity through the Nexa® platform, as well as BMS and cellular communication options.
