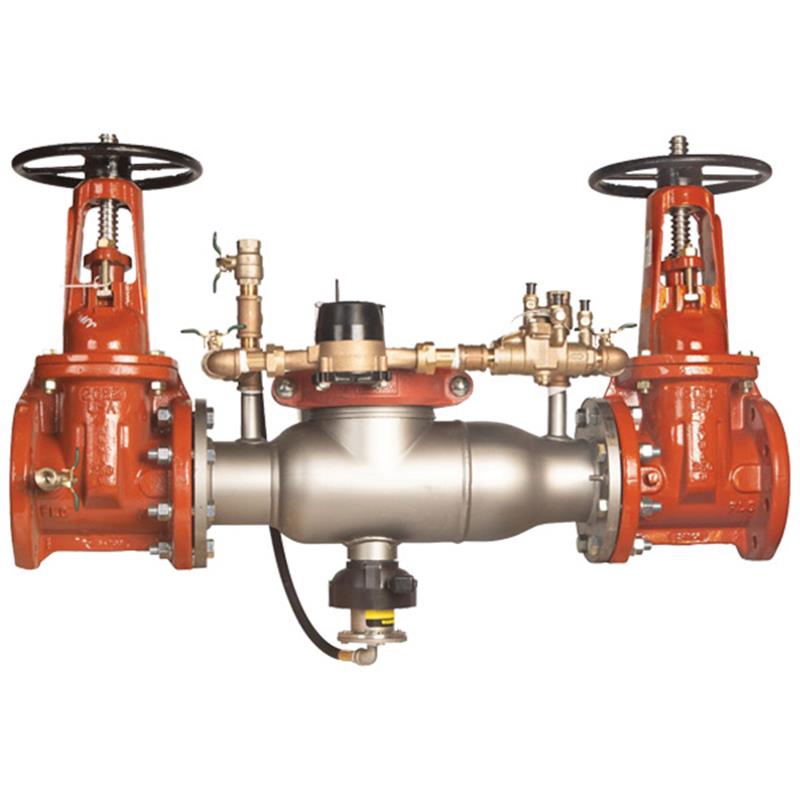

6 5000SS-DOSY-CFM-FS

Item Number: F0692712
1 1
$16,960.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 6 inch
  • Weight: 480.0 lb
  • Body Material: 300 Series Stainless Steel
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F – 110°F
  • Includes SentryPlus Alert® Flood Sensor
  • Features Domestic OSY Resilient Seated Gate Valves
  • Bypass Line Meter: Cubic Feet Per Minute (CFM)
  • Approved by ASSE, CSA, UL, and FM

Description

The 6 inch Ames Series 5000SS Reduced Pressure Detector Backflow Preventer Assembly is engineered to safeguard potable water supplies from contamination by non-potable water, often found in fire protection or industrial processing lines. Constructed with a durable stainless steel body and internal parts, it offers superior corrosion resistance. This compact assembly features domestic OSY shutoffs, thermoplastic cam-check valves, and a bottom-mounted stainless steel relief valve. It includes a metered bypass line for leak detection and a SentryPlus Alert® flood sensor to detect and notify personnel of excessive relief valve discharges, preventing costly damage. Item number F0692712.
View full details

Additional Details

This 6 inch stainless steel reduced pressure detector backflow preventer assembly is designed to prevent the reverse flow of hazardous fire protection substances and non-potable water into the potable water supply, protecting against backsiphonage and backpressure.

The assembly features a compact, modular design with a lightweight stainless steel body, domestic outside stem and yoke (OSY) resilient seated gate valves, and a flood sensor with SentryPlus Alert® technology for detecting excessive water discharges.


WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building, and plumbing codes.

Key Features

  • Stainless steel body provides long-term corrosion resistance and maximum strength.
  • Lightweight stainless steel construction reduces installation and shipping costs.
  • Short end-to-end dimensions simplify retrofit installations.
  • Bottom-mounted relief valve reduces clearance requirements, ideal for installations against outside walls.
  • Cam-check valves provide maximum flow with low pressure drop.
  • No special tools are required for servicing.
  • Compact construction enables installation in smaller enclosures.
  • Stainless steel relief valve features a balanced rolling diaphragm to eliminate sliding seals and lower maintenance costs.
  • Detects underground leaks and unauthorized water use via a cubic feet per minute (CFM) metered bypass line.
  • Flood sensor with SentryPlus Alert® technology detects continuous discharge from the relief valve.
  • Flood alert feature is activated with an add-on sensor connection kit, compatible with BMS and cellular network communication.
  • Domestic outside stem and yoke (OSY) resilient seated gate valves.

Materials

  • All internal metal parts: 300 Series stainless steel
  • Main valve body: 300 Series stainless steel
  • Check assembly: Noryl®

Specifications

  • Size: 6 inch
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F – 110°F (0.5°C – 43°C)
  • Body Material: 300 Series Stainless Steel
  • Internal Parts Material: 300 Series Stainless Steel
  • Check Assembly Material: Noryl®
  • Gate Valves: Domestic OSY Resilient Seated
  • Bypass Meter: Cubic Feet Per Minute (CFM)
  • Flood Detection: SentryPlus Alert® Flood Sensor

Dimensions (Approximate)

  • Length (A): 48.5 inches
  • Depth (D): 11.5 inches
  • Height (E): 15.5 inches
  • Width (F): 11 inches
  • Centerline to Top of Body (G): 11.5 inches
  • Overall Length (L): 27.5 inches

Weight

  • Weight with Gate Valves: 405 lb (184 kg)
  • Weight without Gate Valves: 105 lb (48 kg)

Certificates & Approvals

  • AWWA C511-92
  • ASSE 1047
  • CSA B64.5
  • UL Classified
  • FM Approved

FAQs

What is the primary purpose of this backflow preventer?

This 6 inch Ames Series 5000SS backflow preventer is designed to protect potable water supplies from contamination by preventing the reverse flow of hazardous substances from non-potable sources like fire protection systems or industrial processes.

Does this assembly include a flood detection feature?

Yes, it includes a SentryPlus Alert® flood sensor to detect excessive water discharges from the relief valve. When paired with an add-on connection kit, it can relay alerts to facility personnel.

What material is the main valve body made from?

The main valve body is constructed from 300 Series stainless steel, providing long-term corrosion resistance and maximum strength for durability in various environments.

Are special tools required for servicing this backflow preventer?

No, the design of the Ames Series 5000SS backflow preventer allows for servicing without the need for special tools, simplifying maintenance procedures.

What is the maximum operating pressure and temperature range?

This assembly has a maximum working pressure of 175 psi (12.1 bar) and operates effectively within a temperature range of 33°F to 110°F (0.5°C to 43°C).
