6 5000SS-DOSY-GxG-GPM-FS

Item Number: F0694039
1 1
$18,147.75
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 6 inch
  • Weight: 460.0 lb
  • Body Material: 300 Series Stainless Steel
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F – 110°F
  • Connections: Grooved Inlet x Grooved Outlet
  • Shutoff Valves: Domestic OSY Resilient Seated Gate Valves
  • Bypass Meter: Gallons Per Minute (GPM)
  • Features SentryPlus Alert® Flood Sensor Technology

Description

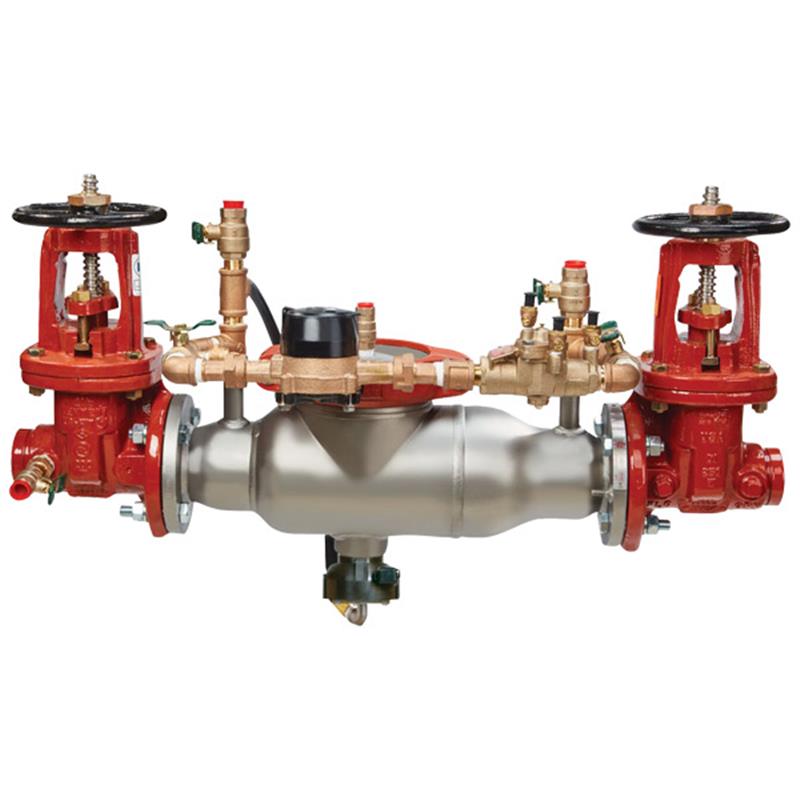

The 6 inch Ames Series 5000SS Reduced Pressure Detector Backflow Preventer Assembly safeguards potable water supplies from contamination in non-potable applications like firelines or irrigation. Constructed from durable 300 Series stainless steel, it offers excellent corrosion resistance and lightweight handling. This assembly features grooved inlet and outlet domestic OSY gate valves and thermoplastic cam-check valves for efficient flow. A GPM metered bypass detects leaks, and an integrated SentryPlus Alert® flood sensor provides notification of relief valve discharge when connected to an optional sensor kit for enhanced protection against water damage. Rated for up to 175 psi and 33°F-110°F. Item number F0694039.

Help Me Connect

Connections

  • The 6 inch Ames Series 5000SS Backflow Preventer features grooved inlet and grooved outlet gate valves, designed for secure and efficient pipe connections.
  • Ensure your plumbing system utilizes corresponding grooved fittings for proper installation.

Flood Sensor Activation

  • The integrated SentryPlus Alert® flood sensor requires an add-on sensor connection kit to become active and relay alerts.
  • Connection kit options include those compatible with Building Automation Systems (BAS) via RS‑485 Modbus, Nexa® platform through Wi-Fi, or cellular network communication.
View full details

Additional Details

This 6 inch Ames Series 5000SS Reduced Pressure Detector Backflow Preventer Assembly is designed to protect potable water supplies from dangerous cross-connections, preventing backsiphonage and backpressure of hazardous materials from non-potable sources like irrigation, firelines, or industrial processing systems.

It features a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve, signaling potential flooding events when paired with an add-on connection kit.

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building, and plumbing codes.

Construction & Features

  • Stainless steel body provides long-term corrosion resistance, maximum strength, and a lightweight design for easier installation and reduced shipping costs.
  • Short end-to-end dimensions make retrofit installations easy.
  • Includes domestic groove by groove outside stem and yoke (OSY) resilient seated gate valves and test cocks.
  • Thermoplastic cam-check valves offer maximum flow at low pressure drop and require no special tools for servicing.
  • A corrosive-resistant stainless steel bottom-mounted relief valve with a balanced rolling diaphragm eliminates sliding seals and lowers maintenance costs.
  • A gallons per minute (GPM) metered bypass line helps detect underground leaks and unauthorized water use.
  • Compact modular design allows for smaller enclosures.

Flood Sensor Technology

  • The integrated flood sensor detects continuous discharge from the relief valve.
  • An add-on sensor connection kit is required to activate flood monitoring and communication. Without the kit, the sensor is passive.
  • Connection kit options support integration with Building Automation Systems (BAS) via RS‑485 Modbus or the Nexa® platform through Wi-Fi, and cellular network communication.

Specifications

  • Model: 5000SS
  • Product Type: Reduced Pressure Detector Backflow Preventer Assembly
  • Size: 6 inch
  • Shutoffs: Domestic Outside Stem and Yoke (OSY) Resilient Seated Gate Valves
  • Inlet Connection: Grooved
  • Outlet Connection: Grooved
  • Bypass Line Meter: Gallons Per Minute (GPM)
  • Flood Sensor: Integrated SentryPlus Alert® Technology

Materials

  • Main Valve Body Material: 300 Series Stainless Steel
  • Internal Metal Parts Material: 300 Series Stainless Steel
  • Check Assembly Material: Noryl®
  • Relief Valve: Stainless Steel with Rolling Diaphragm

Performance Data

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F – 110°F (0.5°C – 43°C)

Certificates & Approvals

  • AWWA C511-92
  • ASSE 1047
  • CSA B64.5
  • UL Classified
  • FM Approved

Dimensions & Weights (6 inch)

  • Overall Length (A): 48 1/2 inches (1232 mm)
  • Lay Length (C OSY): 30 1/8 inches (765 mm)
  • Height (D): 11 1/2 inches (292 mm)
  • Valve Body Width (E): 15 1/2 inches (394 mm)
  • Gate Valve Body Height (F): 11 inches (279 mm)
  • Main Body to Sensor Height (G): 11 1/2 inches (292 mm)
  • Width (L): 27 1/2 inches (699 mm)
  • Weight with Gate Valves: 405 lbs (184 kg)
  • Weight without Gate Valves: 105 lbs (48 kg)

FAQs

What is the primary function of the Ames Series 5000SS backflow preventer?

The primary function is to protect potable drinking water supplies from contamination by preventing the reverse flow of hazardous substances from non-potable sources, such as fire protection systems or irrigation lines, back into the main water supply due to backsiphonage or backpressure.

What kind of connections does this 6 inch backflow preventer have?

This 6 inch Ames 5000SS assembly features domestic outside stem and yoke (OSY) resilient seated gate valves with grooved inlet and grooved outlet connections, designed for secure and efficient system integration.

Does this backflow preventer include a flood sensor?

Yes, it includes an integrated SentryPlus Alert® flood sensor on the relief valve. This sensor detects excessive water discharges, and when paired with an optional add-on connection kit, it can relay alerts to facility personnel or integrated building management systems.

Are special tools required for servicing the cam-check valves?

No, the thermoplastic cam-check valves are designed for easy servicing and do not require any special tools. This contributes to lower maintenance costs and simpler upkeep.

What material is the main valve body made from?

The main valve body and all internal metal parts are constructed from 300 Series stainless steel. This material provides excellent long-term corrosion resistance and maximum strength, ensuring durability and reliability.
