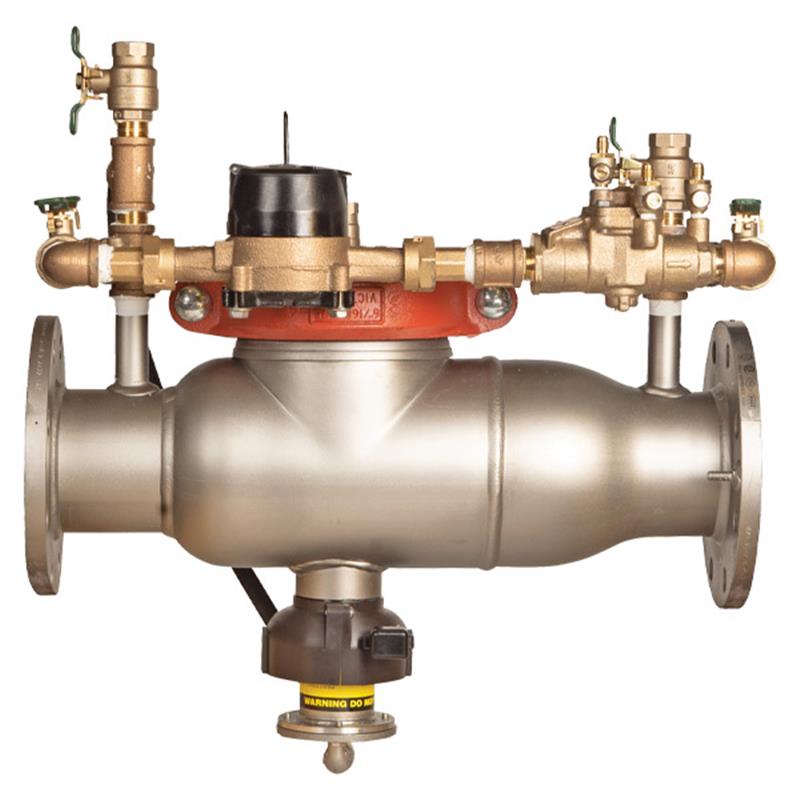

6 5000SS-LG-CFM-FS

Item Number: F0690946
1 1
$13,625.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 6 inch
  • Weight: 120.0 lb
  • Main Valve Body Material: 300 Series Stainless Steel
  • Check Assembly Material: Noryl®
  • Bypass Line Meter: Cubic feet per minute (CFM)
  • Flood Sensor: Included with SentryPlus Alert technology
  • Maximum Working Pressure: 175 psi
  • Approvals: ASSE 1047, CSA B64.5, UL Classified, FM Approved
  • Lightweight stainless steel body reduces installation and shipping costs

Description

This 6 inch Ames Series 5000SS reduced pressure detector backflow preventer assembly safeguards potable water supplies from hazardous cross-connections. Featuring a durable 300 Series stainless steel body and Noryl® check assembly, it's designed for non-potable applications like fireline or industrial processing. The unit includes a cubic feet per minute (CFM) meter for leak detection and a SentryPlus Alert flood sensor to notify personnel of relief valve discharge. Its compact, lightweight design with a bottom-mounted relief valve allows for easy installation and maintenance. Approved to ASSE 1047, CSA B64.5, UL, and FM standards. Item number F0690946.

Help Me Connect

This 6 inch Ames Series 5000SS backflow preventer assembly is designed for direct installation into your piping system. It comes with flanged connections on the main body to integrate with corresponding flanged pipes. This particular model is supplied without shutoff valves (gates).

Flood Sensor Connectivity

  • The integrated flood sensor with SentryPlus Alert technology requires an add-on sensor connection kit for activation.
  • Connection kit options include compatibility with BMS, cellular communication, and the Sensor Control Monitor.
  • The Sensor Control Monitor enables integration with BAS via RS-485 Modbus or the Nexa platform through Wi-Fi.
View full details

Additional Details

This 6 inch reduced pressure detector backflow preventer assembly prevents the reverse flow of hazardous fire protection substances and non-potable water into your potable water supply due to backsiphonage or backpressure. It is ideal for continuous pressure piping applications and cross-connections identified as health hazards, or from other contaminants found at the service line entrance.

This compact, modular design comes without shutoff valves and features a lightweight stainless steel body, test cocks, thermoplastic cam-check valves, and a corrosive-resistant stainless steel bottom-mounted relief valve. It includes a cubic feet per minute (CFM) meter to detect underground leaks and unauthorized water use.

A flood sensor with SentryPlus Alert® technology is integrated to detect excessive water discharges from the relief valve. When paired with an add-on connection kit, the sensor activates to relay alerts for potential flooding events. Connection kit options include compatibility with BMS, cellular communication, and the Sensor Control Monitor, enabling integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.


WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building, and plumbing codes.

Features

  • Stainless steel construction provides long-term corrosion resistance and maximum strength.
  • Lightweight stainless steel body reduces installation and shipping costs.
  • Short end-to-end dimensions make retrofit easy.
  • Bottom-mounted relief valve reduces clearance requirements.
  • Cam-check valves provide maximum flow at low pressure drop.
  • No special tools required for servicing.
  • Compact construction allows for smaller enclosures.
  • Stainless steel relief valve features a balanced rolling diaphragm to eliminate sliding seals and lower maintenance costs.
  • Detects underground leaks and unauthorized water use via the CFM meter.
  • Flood alert feature activated with add-on sensor connection kit, compatible with BMS and cellular network communication.

Specifications

  • Size: 6 inch
  • Main Valve Body Material: 300 Series Stainless Steel
  • Internal Metal Parts: 300 Series Stainless Steel
  • Check Assembly Material: Noryl®
  • Bypass Line Meter: Cubic feet per minute (CFM)
  • Temperature Range: 33°F – 110°F (0.5°C – 43°C)
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Replaceable Seat and Disc Holder Material: Bronze
  • Test Cock Material: Bronze Body Ball Valve

Certificates & Approvals

  • AWWA C511-92
  • ASSE 1047
  • CSA B64.5
  • UL Classified
  • FM Approved
  • Horizontal Installation

FAQs

What is the primary function of this backflow preventer?

This reduced pressure detector backflow preventer is designed to prevent the reverse flow of hazardous fire protection substances and non-potable water into a potable water supply due to backsiphonage or backpressure.

What materials are used in the construction of this assembly?

The main valve body and internal metal parts are constructed from 300 Series Stainless Steel. The check assembly uses Noryl®, and the relief valve is made of stainless steel with a balanced rolling diaphragm.

Does this model include shutoff valves?

No, this specific model is supplied 'Less Gates' (LG), meaning it does not include shutoff valves. It is designed for direct integration into your piping system.

How does the flood sensor feature work?

The integrated flood sensor with SentryPlus Alert technology detects excessive water discharges from the relief valve. An add-on connection kit (sold separately) is required to activate the sensor and enable it to relay alerts via BMS, cellular communication, or the Sensor Control Monitor.

What is the maximum working pressure for this device?

This 6 inch Ames 5000SS backflow preventer is rated for a maximum working pressure of 175 psi (12.1 bar).
