6 5000SS-LG-GPM-FS

Item Number: F0690547
1 1
$13,625.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Assembly Size: 6 inch
  • Weight: 101.0 lb
  • Body Material: 300 Series Stainless Steel
  • Features SentryPlus Alert® flood sensor
  • Includes Gallons Per Minute (GPM) meter
  • Maximum Working Pressure: 175 psi
  • Corrosion-resistant stainless steel construction
  • Short lay length for easy retrofitting
  • Approved to ASSE 1047, CSA B64.5, UL, and FM

Description

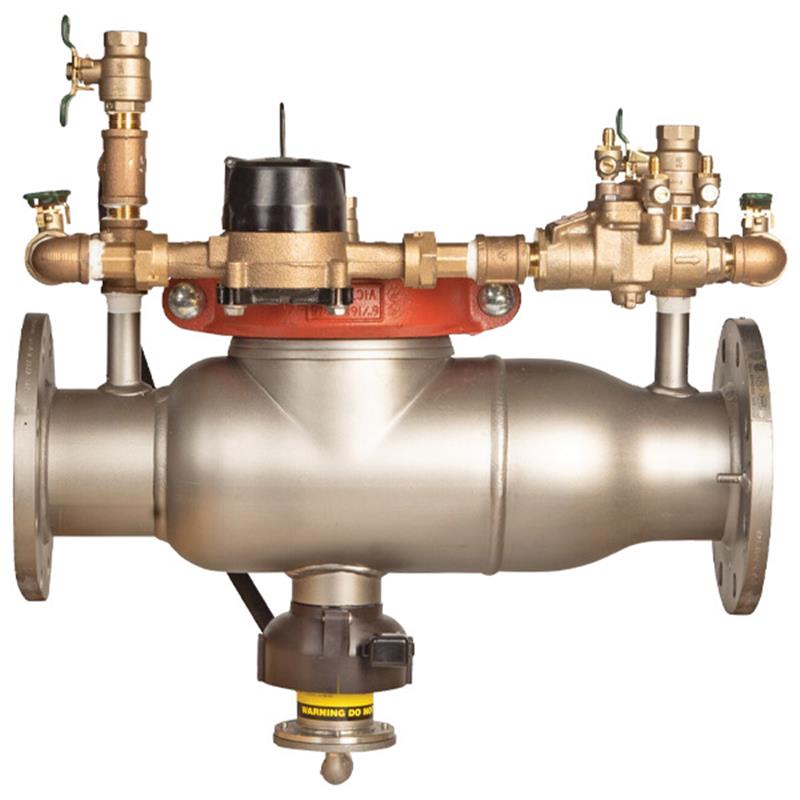

This 6 inch AMES 5000SS Reduced Pressure Detector Backflow Preventer Assembly protects potable water supplies from contamination caused by backsiphonage or backpressure in health hazard applications. Its robust stainless steel body provides corrosion resistance and strength. Equipped with a SentryPlus Alert® flood sensor to detect excessive relief valve discharge and a gallon per minute (GPM) meter for leak detection, it ensures continuous monitoring. This model is supplied without shutoff valves, offering a lightweight and compact design for easy installation and retrofitting. It maintains a maximum working pressure of 175 psi and is approved by ASSE, CSA, UL, and FM. Item number F0690547.

Help Me Connect

Installation & Compatibility

This 6 inch Reduced Pressure Detector Backflow Preventer Assembly is designed for installation at cross-connections to protect potable water supplies from backsiphonage and backpressure. It is configured without integral shutoff valves.

  • The flood sensor with SentryPlus Alert® technology requires an add-on connection kit (sold separately) to activate its alert features.
  • Activated flood sensors are compatible with Building Management Systems (BMS), cellular network communication, and the Sensor Control Monitor for integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.
View full details

Additional Details

The 6 inch AMES 5000SS Reduced Pressure Detector Backflow Preventer Assembly is designed to prevent backsiphonage and backpressure of hazardous materials into potable water supplies. It is ideal for continuous pressure piping applications and cross-connections in health hazard scenarios, including fire protection, irrigation, and industrial processing.

This assembly comes without shutoff valves and includes a flood sensor with SentryPlus Alert® technology to detect excessive relief valve discharges, and a gallon per minute (GPM) meter for detecting underground leaks or unauthorized water use. An add-on connection kit (sold separately) is required to activate the flood sensor's alert features.

Features

  • Stainless steel body provides long-term corrosion resistance, maximum strength, and is lightweight for easier installation and reduced shipping costs.
  • Short end-to-end dimensions allow for easy retrofitting and compact installations.
  • Bottom-mounted relief valve reduces clearance requirements, especially against outside walls.
  • Cam-check valves are thermoplastic with stainless steel hinge pins, cam arm, and cam bearing, designed for maximum flow with low pressure drop.
  • Stainless steel relief valve features a balanced rolling diaphragm to eliminate sliding seals and lower maintenance.
  • Equipped with a gallon per minute (GPM) meter to detect underground leaks and unauthorized water use.
  • Flood sensor detects continuous relief valve discharge and, when activated with an add-on connection kit, can relay alerts compatible with BMS and cellular networks.
  • No special tools are required for servicing the assembly.

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption in the United States. Always consult local water authority, building, and plumbing codes before installation.

Specifications

  • Assembly Size: 6 inch
  • Assembly Type: Reduced Pressure Detector Assembly
  • Model: 5000SS-LG-GPM-FS
  • Main Valve Body Material: 300 Series Stainless Steel
  • Internal Metal Parts Material: 300 Series Stainless Steel
  • Check Assembly Material: Noryl®
  • Relief Valve Material: Stainless Steel
  • Bypass Meter: Gallons per minute (GPM)
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F – 110°F (0.5°C – 43°C)
  • Features: Flood Sensor (SentryPlus Alert®), Less Shutoff Valves

Certificates & Approvals

  • AWWA C511-92
  • ASSE 1047
  • CSA B64.5
  • UL Classified
  • FM Approved

FAQs

What is the primary function of the 6 inch AMES 5000SS Reduced Pressure Detector Backflow Preventer Assembly?

This assembly is designed to prevent hazardous materials from entering potable water supplies due to backsiphonage or backpressure. It is suitable for health hazard applications, including fire protection, irrigation, and industrial processing.

Are shutoff valves included with this specific 5000SS assembly?

No, this model (5000SS-LG) is supplied without integral shutoff valves. You will need to source appropriate shutoff valves separately for your installation.

How does the flood sensor function, and what is required to activate its alert features?

The SentryPlus Alert® flood sensor detects excessive water discharge from the relief valve. To activate its alert capabilities and enable communication with external systems, an add-on sensor connection kit (sold separately) is required.

What type of meter is integrated into this backflow preventer assembly?

This assembly is furnished with a gallon per minute (GPM) meter. This meter helps detect underground leaks or unauthorized water usage within the system.

What are the main construction materials of the AMES 5000SS backflow preventer?

The main valve body and all internal metal parts are constructed from 300 Series stainless steel for corrosion resistance. The check assembly components are made from Noryl®.
