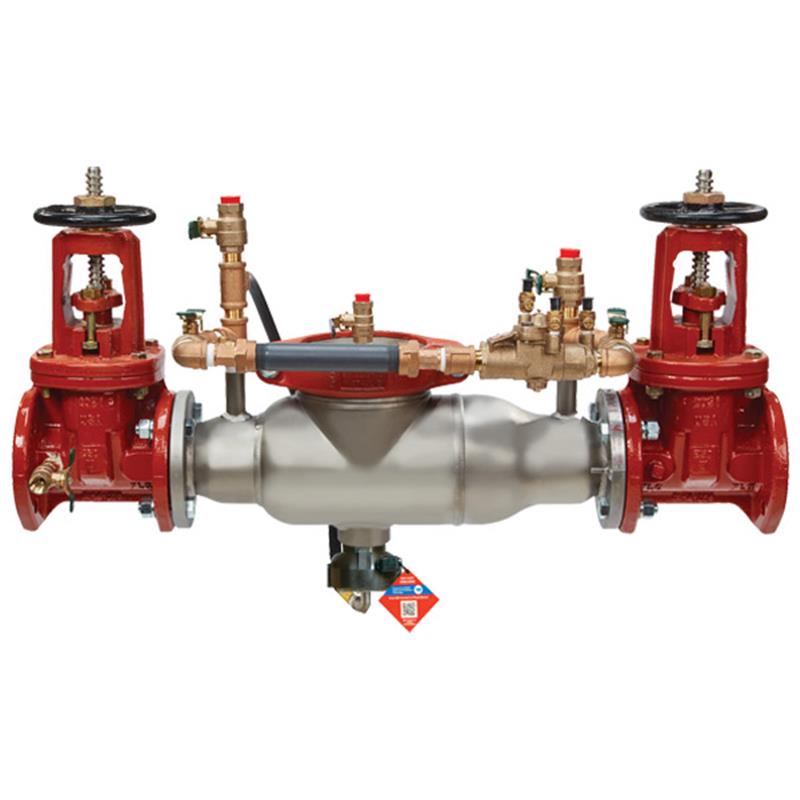

This 6 inch reduced pressure detector backflow preventer assembly is designed to protect potable water supplies from hazardous cross-connections, backpressure, and backsiphonage. It is ideal for continuous pressure piping applications, fireline, irrigation, and industrial processing, particularly at cross-connections identified as health hazards or other contaminants.

It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building, and plumbing codes.

Key Features

• Features a SentryPlus Alert® flood sensor to detect continuous discharge from the relief valve, helping limit flooding and costly damage.
• The flood alert feature is activated with an add-on sensor connection kit, compatible with Building Management Systems (BMS) and cellular network communication.
• Constructed with a lightweight stainless steel body and internal parts for long-term corrosion resistance, maximum strength, and reduced installation costs.
• Designed with short end-to-end dimensions for easy retrofit installations.
• Equipped with UL and FM approved outside stem and yoke (OSY) resilient seated gate valves for reliable shutoff.
• Thermoplastic cam-check valves provide maximum flow and low pressure drop, requiring no special tools for servicing.
• The stainless steel relief valve features a balanced rolling diaphragm, eliminating sliding seals and lowering maintenance costs.
• Includes bronze body ball valve test cocks.
• Compact modular design allows for installation in smaller enclosures.
