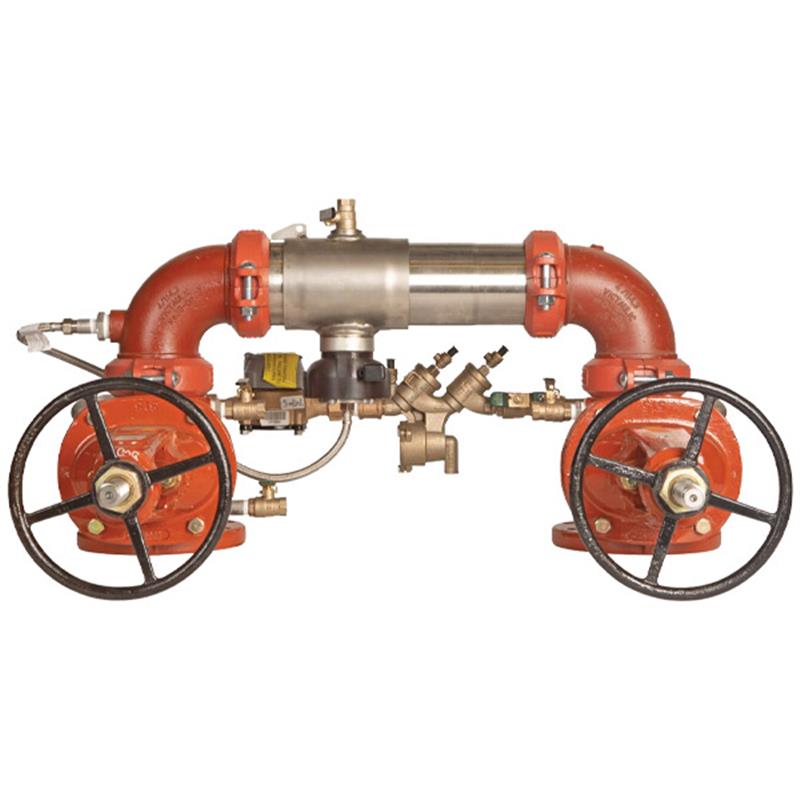

This 6 inch N pattern reduced pressure detector backflow preventer assembly helps stop the reverse flow of liquids due to backpressure or backsiphonage, where potential health hazard exists. Extremely compact and lighter than traditional designs, it is approved for horizontal N pattern installation.
A WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing standard material product, consult your local water authority, building, and plumbing codes.
This assembly consists of a stainless steel body with a quick access sleeve, torsion spring check valves, domestic outside stem and yoke (OSY) resilient seated gate valves, test cocks, a corrosive-resistant bottom mounted pressure relief valve, and a cubic foot per minute meter to detect underground leaks and unauthorized water use. It features an integrated flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
Features
- Extremely compact design
- 70% lighter than traditional designs
- 304 (Schedule 40) stainless steel housing and sleeve
- Groove fittings allow integral pipeline adjustment
- Patented torsion spring check provides lowest pressure loss
- Unmatched ease of serviceability
- Replaceable check disc rubber
- Domestic outside stem and yoke (OSY) resilient seated gate valves
- Bottom mounted cast stainless steel relief valve
-
Metered bypass to detect leakage or theft of water from the fire sprinkler system
- Sensor on relief valve for flood detection
- Flood alert feature activated with add-on sensor connection kit, compatible with BMS and cellular network communication
- No special tools required for servicing
