6 LF880V-OSY-FS

Item Number: F122960
1 1
$22,407.87
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 6 inch
  • Weight: 720.0 lb
  • Type: Reduced Pressure Zone Backflow Preventer
  • Lead Free Construction
  • Body Material: Ductile Iron with ArmorTek® coating
  • Advanced Corrosion Resistance: Limits MIC and substrate corrosion
  • Shutoff Valves: Outside Stem and Yoke (OSY)
  • Relief Valve Seat & Checks: Stainless Steel
  • Integrated Flood Sensor with SentryPlus Alert® technology

Description

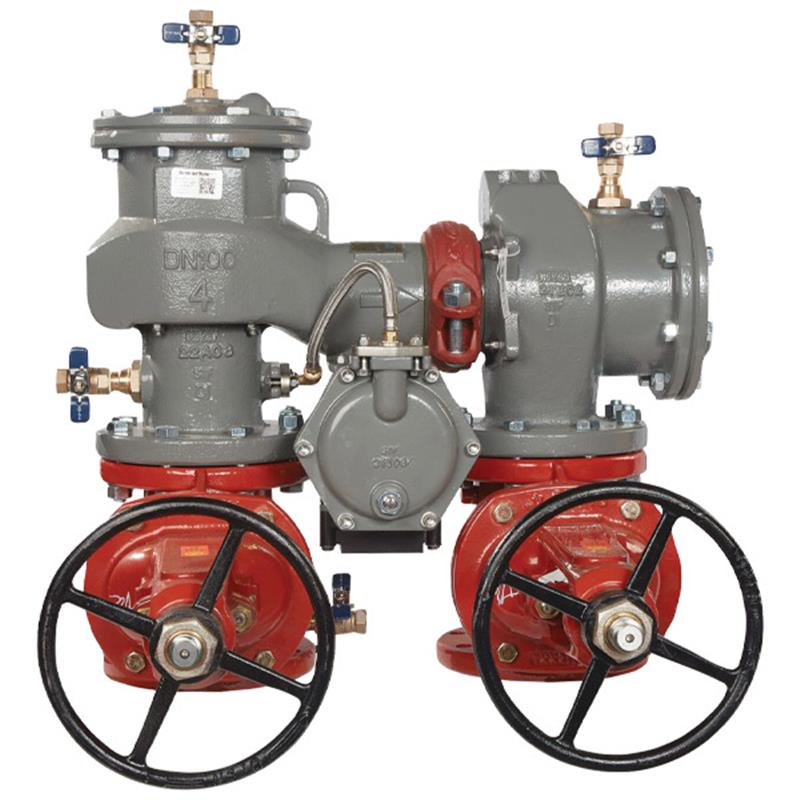

The FEBCO 6 inch LF880V-OSY-FS is a lead free ductile iron reduced pressure zone backflow preventer assembly designed for protecting industrial water services from high hazard (toxic) fluids. It features a durable ductile iron body with patented 3-part ArmorTek® epoxy coating for advanced corrosion resistance, including protection against microbial induced corrosion (MIC). Stainless steel relief valve seats and check components enhance reliability and valve life. This N-pattern assembly includes outside stem and yoke shutoffs and an integrated flood sensor with SentryPlus Alert® technology for continuous discharge detection and alert relay.

Help Me Connect

Compatibility & Connections

  • This backflow preventer is designed for water services to industrial installations and applications.
  • The integrated flood sensor with SentryPlus Alert® technology can be paired with an add-on connection kit to extend flood monitoring.
  • Connection kit options include Building Management Systems (BMS), cellular communication, and the Sensor Control Monitor.
  • The Sensor Control Monitor enables integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi.
View full details

Additional Details

This 6 inch FEBCO MasterSeries® configurable lead free reduced pressure zone backflow preventer assembly is designed to protect water services in industrial installations and applications against high hazard (toxic) fluids.

This assembly includes outside stem and yoke (OSY) shutoff valves, a lead free body, test cocks, spring loaded check valves, and a pressure differential relief valve.

Construction & Durability

  • Features a ductile iron body fused with patented 3-part ArmorTek® epoxy coating for advanced corrosion resistance.
  • ArmorTek® coating is specifically designed to limit both microbial induced (MIC) and exposed metal substrate corrosion.
  • Improved with a stainless-steel relief valve seat and stainless-steel check components for maximum performance, greater dependability, and extended valve life.
  • Configurable N-Pattern design.

SentryPlus Alert® Technology

  • Contains a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
  • When paired with an add-on connection kit, the sensor activates to relay alerts for potential flooding events.
  • Integrates with a Sensor Control Monitor to deliver maintenance alerts to Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi.

Specifications

  • Size: 6 inch
  • Model: LF880V-OSY-FS
  • Type: Reduced Pressure Zone Backflow Preventer Assembly
  • Body Material: Ductile Iron
  • Body Coating: ArmorTek® Patented 3-part advanced epoxy coating
  • Relief Valve Seat Material: Stainless Steel
  • Check Component Material: Stainless Steel
  • Shutoff Valves: Outside Stem and Yoke (OSY)
  • Configuration: N-Pattern
  • Lead Free: Yes
  • Sensor: Integrated Flood Sensor with SentryPlus Alert® technology

FAQs

What type of backflow preventer is the FEBCO 6 LF880V-OSY-FS?

This is a lead free MasterSeries® configurable reduced pressure zone (RPZ) backflow preventer assembly. It is designed to protect against high hazard (toxic) fluids.

What is the primary use of this 6 inch backflow preventer?

Its primary use is to protect water services in industrial installations and applications from contamination by high hazard (toxic) fluids.

What kind of corrosion resistance does this assembly offer?

The ductile iron body is fused with a patented 3-part ArmorTek® epoxy coating, which provides advanced corrosion resistance and is designed to limit both microbial induced (MIC) and exposed metal substrate corrosion.

Does this backflow preventer have a flood sensor?

Yes, it contains an integrated flood sensor with SentryPlus Alert® technology. This sensor detects excessive water discharges from the relief valve and can relay alerts when paired with an add-on connection kit.

How does the flood sensor integrate with building management systems?

When paired with an add-on connection kit, the sensor can integrate with Building Management Systems (BMS), cellular communication, or a Sensor Control Monitor. The Sensor Control Monitor enables integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi.
