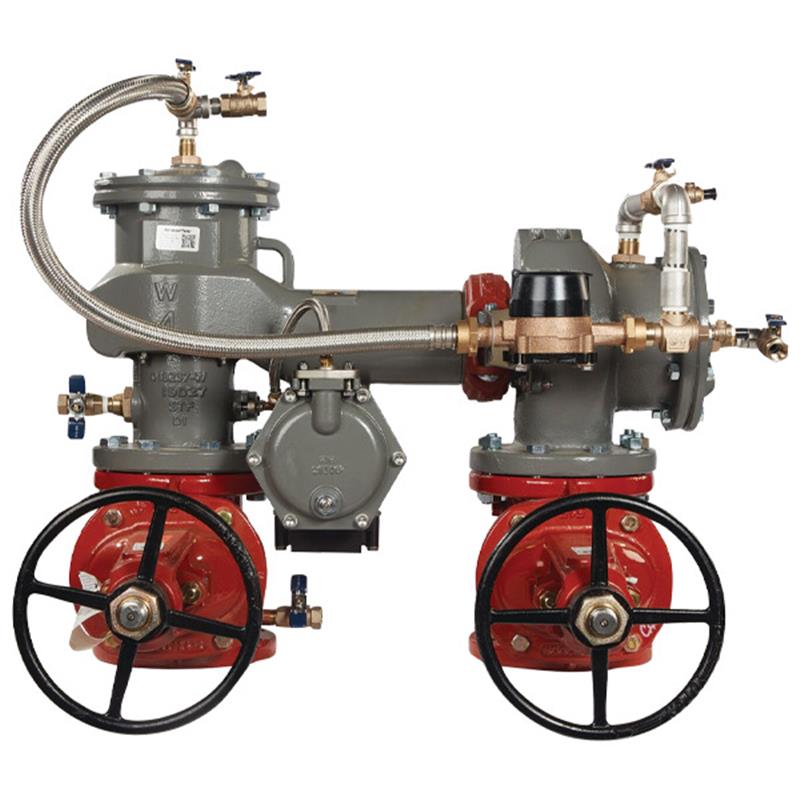

6 LF886-WZ-DOSY-GPM-FS

Item Number: F8007416
1 1
$25,648.51
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Valve Type: Reduced Pressure Zone Detector Assembly (RPDA)
  • Weight: 530.0 lb
  • Nominal Size: 6 inch
  • Lead Content: Less than 0.25% by weight
  • Body Material: ArmorTek® coated ductile iron
  • Shutoff Valves: Domestic OS&Y Gate Valves (UL/FM Approved)
  • Competitor Z-Pattern drop-in replacement length
  • Includes 5/8" x 3/4" GPM metered bypass
  • Flood sensor with SentryPlus Alert® technology

Description

This 6 inch FEBCO MasterSeries LF886W/WZ is a Lead Free Reduced Pressure Zone Detector Assembly (Type II) designed for high hazard/toxic water service applications. It protects potable water systems from dangerous backpressure and backsiphonage contamination. Featuring a Z-pattern lay length, it serves as a convenient drop-in replacement for competitor models. The durable ductile iron body is coated with ArmorTek® for superior corrosion resistance, complemented by stainless steel check components and relief valve seat. It includes UL Classified and FM Approved OS&Y shutoff valves, a GPM metered bypass for leak detection, and a SentryPlus Alert® flood sensor for discharge monitoring.

Help Me Connect

Compatibility and Installation

  • This 6 inch LF886W/WZ backflow preventer is specifically designed for drop-in replacement of competitor's Z-pattern valves due to its longer gate-to-gate length.
  • The assembly is fitted with flanged end connections, which comply with ASME B16.1 Class 125 and AWWA Class D Flange standards for secure pipe integration.
  • The integrated flood sensor requires an add-on connection kit (BMS, cellular, or Sensor Control Monitor/Nexa platform via Wi-Fi/Modbus) to activate its alert capabilities.
View full details

Additional Details

The FEBCO MasterSeries LF886W/WZ Reduced Pressure Zone Detector Assembly (Type II) is a 6 inch backflow preventer designed to protect potable water systems from backpressure and backsiphonage conditions in high hazard/toxic applications. It is an ideal drop-in replacement for competitor Z-pattern valves in industrial and other water service installations.

Product Highlights

  • Lead Free construction ensures compliance with low lead installation requirements.
  • Designed for drop-in replacement of competitor's Z-pattern valves, featuring a longer gate-to-gate length.
  • Iron components are coated with ArmorTek®, a patented three-part advanced epoxy system, to resist microbial-induced corrosion (MIC) and protect exposed metal surfaces.
  • Includes UL Classified and FM Approved domestic OS&Y shutoff valves for reliable isolation.
  • Features stainless steel relief valve seat and stainless steel check components for maximum performance and durability.
  • Equipped with a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When paired with an add-on connection kit, the sensor relays signals for potential flooding events via multichannel alerts.
  • Please note: An add-on connection kit is required to activate the flood sensor. Without the connection kit, the flood sensor is a passive component that does not communicate with any other device.
  • The bypass line incorporates a gallons per minute (GPM) metered bypass (5/8" x 3/4" water meter) to detect potential underground water leaks or unauthorized water usage.

Main Valve Features

  • Stainless steel relief valve seat and stainless steel check components
  • Longer gate-to-gate length for competitor drop-in replacement
  • Inline serviceable assembly; no special tools required
  • Captured modular spring assembly
  • Reversible and replaceable discs
  • Field replaceable seats
  • Ductile iron valve body design
  • ArmorTek coating technology to resist corrosion of internals
  • Modular and repairable pressure differential relief valve
  • Clapper check assembly
  • Captured O-ring design

Auxiliary Bypass Features

  • Compact design; remains in main valve assembly profile
  • Inline serviceable 3/4" check assembly; no special tools required
  • No special tools required for servicing
  • Field replaceable seat and disc
  • Detect potential underground water leaks
  • Detect unauthorized water usage

Specifications

  • Valve Type: Reduced Pressure Zone Detector Assembly (RPDA)
  • Model: LF886W/WZ (Type II)
  • Nominal Size: 6 inch
  • Main Valve Body Material: Ductile Iron Grade 65-45-12
  • Relief Valve Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek Powder Coating (internal & external surfaces)
  • Shutoff Valves: Domestic OS&Y Resilient Wedge Gate Valves
  • Check Seats Material: Stainless Steel
  • Relief Valve Seat Material: Stainless Steel
  • Disc Holder Material: Stainless Steel
  • Elastomer Disc Material: Silicone
  • Spring Material: Stainless Steel
  • Clamp Standard: AWWA C606
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Minimum Working Pressure: 20 PSI (1.4 bar)
  • Hydrostatic Test Pressure: 350 PSI (24.1 bar)
  • Hydrostatic Safety Pressure: 700 PSI (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C) continuous
  • Bypass Meter: 5/8" x 3/4" GPM Water Meter (ANSI/AWWA C700 Compliant)
  • Flood Sensor: SentryPlus Alert® Technology (requires add-on connection kit)
  • Lead Content: Wetted surfaces contain less than 0.25% lead by weight

Certifications & Standards

  • FCCCHR-USC (Foundation for Cross-Connection Control and Hydraulic Research at USC)
  • ASSE 1047
  • UL Classified (US & Canada)
  • FM Approved
  • IAPMO/CUPC
  • AWWA Standard C511 Compliant
  • End Connections: ASME B16.1 Class 125 & AWWA Class D Flange
  • Assembly Flow Orientation: Vertical Up (Z-Pattern)

FAQs

What is the primary purpose of the FEBCO MasterSeries LF886W/WZ?

This 6 inch Reduced Pressure Zone Detector Assembly (RPDA) is designed to protect potable water systems from contamination caused by backpressure and backsiphonage in high hazard applications.

Does this backflow preventer replace competitor models easily?

Yes, it features a longer gate-to-gate length specifically engineered for convenient drop-in replacement of competitor's Z-pattern backflow preventer valves.

How does the ArmorTek® coating benefit the assembly?

ArmorTek® is a patented three-part advanced epoxy system that coats the iron components, providing integrated protection against electrochemical corrosion and microbial-induced corrosion (MIC) for extended product life.

What is the function of the flood sensor with SentryPlus Alert® technology?

The flood sensor detects excessive water discharges from the relief valve. To activate its alert capabilities for notifications (call, email, text), an add-on connection kit is required.

What are the main material components of this backflow preventer?

The main valve and relief valve bodies are ductile iron Grade 65-45-12 with ArmorTek® coating. Check seats, relief valve seat, disc holder, and springs are stainless steel, while elastomer discs are silicone.
