Body Material: Ductile Iron with ArmorTek® Coating
Pressure Rating: 175 PSI Maximum
Temperature Range: 33°F - 140°F
Features: Flood Sensor with SentryPlus Alert® Technology
Components: Stainless Steel Relief Valve Seat and Check Components
Description

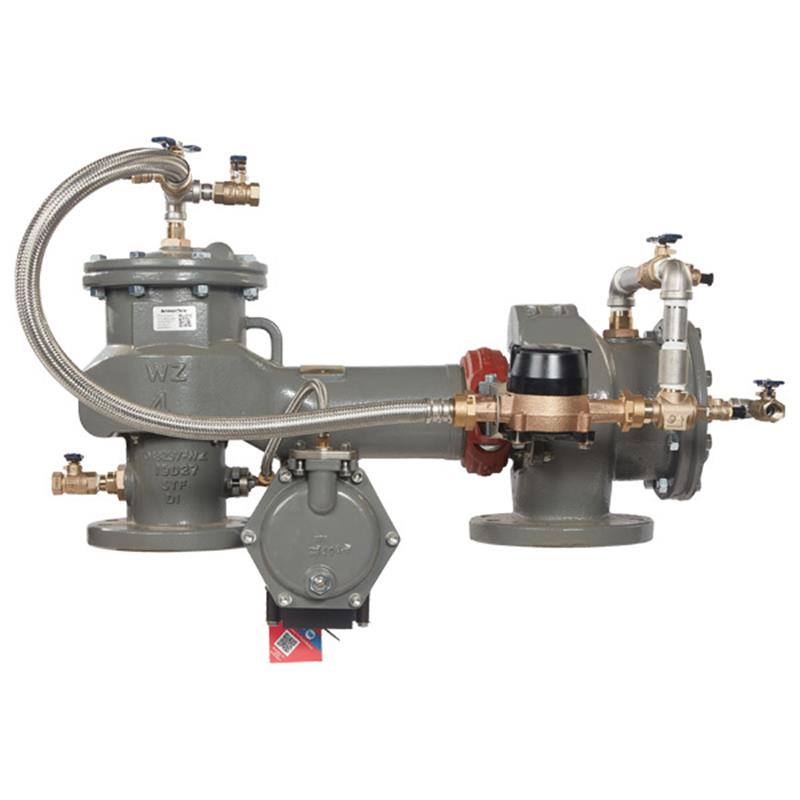

The FEBCO 6 inch LF886W/WZ Reduced Pressure Detector Backflow Preventer provides critical protection against high hazard cross-connection contamination in industrial water systems. This assembly features a Z-pattern lay-length for seamless replacement of competitor units and includes a metered bypass for accurate water usage detection. Its ductile iron body is coated with ArmorTek® for enhanced corrosion resistance, while stainless steel internal components ensure long-term durability and performance. Equipped with a SentryPlus Alert® flood sensor, it can detect excessive relief valve discharge, offering an early warning for potential issues. Item number F8007418.
Help Me Connect
Connections
This backflow preventer features a Z-pattern lay-length designed for direct drop-in replacement of existing competitor Z-pattern valves in 6 inch lines.
End connections are compliant to ASME B16.1 Class 125 and AWWA Class D Flange standards.
The installation of a FEBCO air gap with the drain line terminating above a floor drain is recommended for normal discharge. Ensure the floor drain size is adequate to prevent water damage from complete failure conditions.
The FEBCO MasterSeries® LF886W/WZ is a 6 inch reduced pressure detector backflow preventer assembly designed to protect potable water systems from high hazard (toxic) fluids in industrial applications and installations.
This assembly features a longer Z-pattern lay-length, making it suitable as a direct drop-in replacement for competitor Z-pattern valves. It comes without shutoff valves and includes a metered bypass for water detection.
Features
Designed for high hazard applications to prevent backflow of toxic fluids.
Features a Z-pattern lay-length for competitor drop-in replacement.
Equipped with a flood sensor with SentryPlus Alert® technology to detect excessive water discharge from the relief valve.
Includes a CFM metered bypass for accurate water detection.
ArmorTek® epoxy coating on ductile iron body for superior corrosion resistance and protection against microbial-induced corrosion.
Utilizes stainless steel relief valve seat and check components for maximum performance and extended valve life.
Comes with clapper check modules.
Constructed with a ductile iron body.
Features ball valve test cocks for easy testing.
Installation must be performed by experienced and trained personnel to ensure proper product operation and safety. An add-on connection kit is required to activate the flood sensor's alert capabilities; without it, the sensor is a passive component.
Temperature Range: 33°F - 140°F (0.5°C - 60°C) continuous
Certificates & Approvals
FCCHR-USC (Cross-Connection Control and Hydraulic Research at The University of Southern California)
ASME 1041
UL Classified (US & Canada)
FM Approved
IAPMO/cUPC
AWWA Standard C511-Compliant
End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
ASSE 1047
CSA B64.4
FAQs
What is the primary use of the FEBCO 6 LF886W/WZ backflow preventer?
This backflow preventer is primarily used to protect potable water systems from contamination by high hazard (toxic) fluids in industrial installations and applications.
Does this backflow preventer include shutoff valves?
No, the FEBCO 6 LF886W/WZ assembly is supplied without shutoff valves.
What is the significance of the Z-pattern lay-length?
The Z-pattern lay-length is a longer configuration designed to allow for direct, drop-in replacement of competitor Z-pattern backflow preventer valves, simplifying installation in existing setups.
How does the flood sensor function?
The integrated flood sensor with SentryPlus Alert® technology detects excessive water discharge from the relief valve. An optional add-on connection kit is required to activate its alert capabilities for communication with BMS or cellular networks.
What materials are used for the main body and internal components?
The main body and relief valve body are made from Ductile Iron Grade 65-45-12 with ArmorTek® powder coating. Key internal components like check seats, relief valve seat, disc holder, and springs are made of stainless steel.
