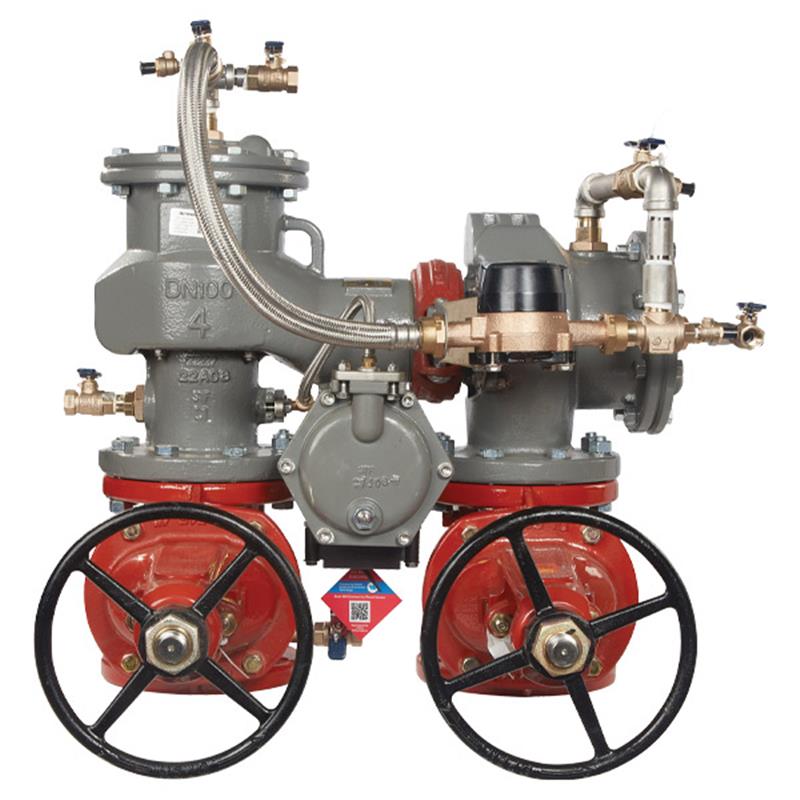

6 LF886V-OSY-CFM-FS

Item Number: F683229
1 1
$25,645.51
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 6 inch
  • Weight: 530.0 lb
  • Lead Free: Yes
  • Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® advanced epoxy
  • Shutoff Valves: OSY Gate Valves
  • Bypass Meter: CFM
  • Flood Sensor: SentryPlus Alert® technology
  • Maximum Working Pressure: 175 PSI

Description

The 6 inch FEBCO MasterSeries LF886V Reduced Pressure Zone Detector Backflow Preventer Assembly offers reliable protection for potable water systems against high hazard backpressure and backsiphonage. Featuring Lead Free construction and ArmorTek® advanced epoxy coating on its ductile iron body, it ensures superior corrosion resistance. This assembly includes OSY shutoff valves, a CFM metered bypass for monitoring, and a SentryPlus Alert® flood sensor to detect relief valve discharge. Designed for maximum performance and durability with stainless steel internal components, it is UL Classified, FM Approved, and complies with ASSE 1047 and CSA B64.4.

Help Me Connect

Connections

  • This assembly is fitted with UL Classified and FM Approved inlet/outlet resilient seated shutoff valves and contains four (4) properly located resilient seated test cocks.
  • The auxiliary bypass line includes a 5/8 inch x 3/4 inch water meter that complies with ANSI/AWWA Standard C700, coupled with an approved check assembly compliant to AWWA Standard C511.
  • The flood sensor is a passive component until activated by an add-on connection kit (not included). Connection kit options include BMS, cellular communication, and the Sensor Control Monitor which enables integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi.

Serviceability

  • The main line valve body consists of two (2) independently acting approved clapper style check modules with replaceable seats and disc rubbers.
  • Servicing both check modules does not require any special tools and is accessed through independent top entry covers.
View full details

Additional Details

The 6 inch FEBCO MasterSeries LF886V Reduced Pressure Zone Detector Assembly is designed to protect potable water systems from backpressure and backsiphonage in high hazard/toxic applications. This assembly features Lead Free construction and advanced corrosion protection, making it ideal for industrial installations.

Construction & Protection

  • Features a ductile iron body with ArmorTek®, a patented three-part advanced epoxy coating system engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal substrate.
  • Equipped with OSY shutoff valves, replaceable stainless steel check seats, and ball valve test cocks.
  • Stainless steel relief valve seat and stainless steel check components ensure maximum performance and durability.
  • Inline serviceable assembly and captured modular spring assembly allow for easy maintenance without special tools.
  • Includes reversible and replaceable discs and field replaceable seats.

Bypass & Detection

  • A detector bypass assembly with a Cubic Feet Per Minute (CFM) water meter is included to monitor water usage and detect potential underground leaks.
  • Integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve.
  • An add-on connection kit is required to activate the flood sensor for remote alerts via BMS, cellular communication, or Wi-Fi.

Specifications

  • Product Type: Reduced Pressure Zone Detector Assembly (RPZDA)
  • Series: MasterSeries LF886V
  • Size: 6 inch
  • Lead Free: Yes (Wetted surface contains less than 0.25% lead by weight)
  • Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® (3-part advanced epoxy)
  • Shutoff Valves: OSY Resilient Wedge Gate Valve
  • Check Seats: Stainless Steel
  • Relief Valve Seat: Stainless Steel
  • Disc Holder: Stainless Steel
  • Elastomer Disc: Silicone
  • Spring: Stainless Steel
  • Clamp: AWWA C606
  • Bypass Meter: 5/8 inch x 3/4 inch Water Meter, Cubic Feet Per Minute (CFM)
  • Flood Sensor: SentryPlus Alert® technology on relief valve

Pressure & Temperature Ratings

  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Maximum Relief Valve Working Pressure: 20 PSI (1.4 bar)
  • Hydrostatic Test Pressure: 350 PSI (24.1 bar)
  • Hydrostatic Safety Pressure: 700 PSI (48.3 bar)
  • Temperature Range: 33°F – 140°F (0.5°C – 60°C) Continuous

Certificates & Approvals

  • FCCCHR-USC (Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California)
  • ASSE 1047
  • UL Classified (US & Canada)
  • FM Approved
  • IAPMO/CUPC
  • AWWA Standard C511 Compliant
  • CSA B64.4
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange

FAQs

What is the primary purpose of the FEBCO MasterSeries LF886V assembly?

Its primary purpose is to protect potable drinking water systems from contamination due to backpressure and backsiphonage in high hazard/toxic applications, ensuring water safety and compliance with local codes.

What does "Lead Free" mean for this product?

"Lead Free" indicates that the wetted surface of the product, which contacts consumable water, contains less than 0.25% of lead by weight, complying with low lead installation requirements.

How does the SentryPlus Alert® flood sensor function?

The flood sensor detects excessive water discharges from the relief valve. To relay alerts (call, email, text), it requires an add-on connection kit (sold separately) for communication via BMS, cellular network, or Wi-Fi to notify personnel of potential flooding.

What is ArmorTek® coating, and what are its benefits?

ArmorTek® is a patented three-part advanced epoxy coating system applied to the ductile iron components. It is engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal substrate, extending the product's lifespan and maintaining performance.

What are the maximum operating pressure and temperature ratings for this backflow preventer?

The maximum working pressure is 175 PSI (12.1 bar), and the continuous operating temperature range is 33°F to 140°F (0.5°C to 60°C).
