8 957-OSY-FS

Item Number: F111588
1 1
$25,551.27
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 8 inch
  • Weight: 633.0 lb
  • Housing Material: 304 (Schedule 40) Stainless Steel
  • Shutoff Valves: OSY Resilient Seated Gate Valves (UL/FM Approved)
  • Flood Sensor: SentryPlus Alert® Technology
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F - 140°F
  • Features Groove Couplings for easy installation
  • Protects potable water from contamination

Description

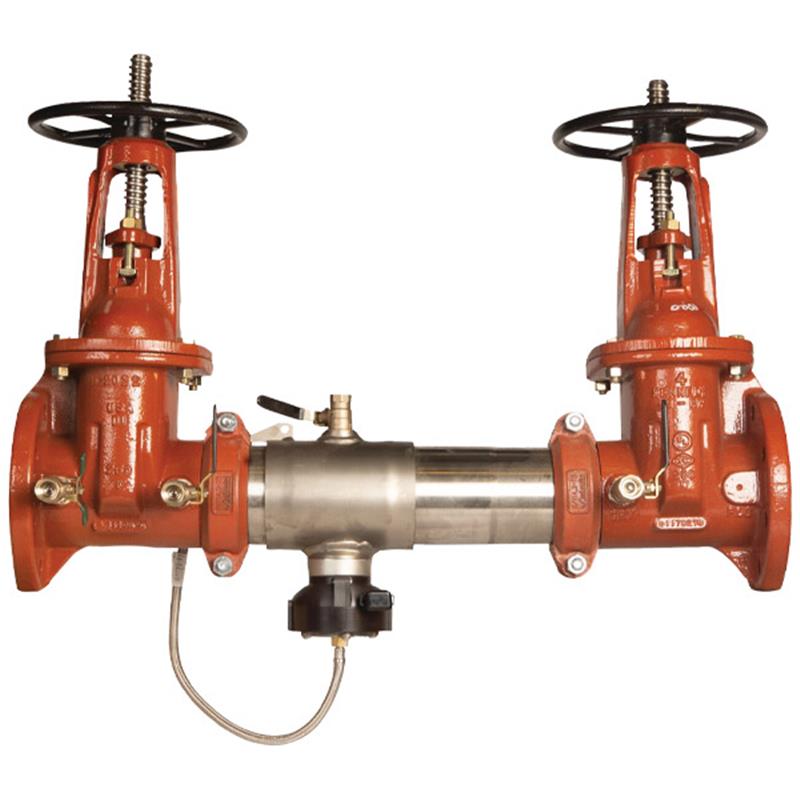

This 8 inch Watts Series 957 Reduced Pressure Zone (RPZ) Assembly Backflow Preventer safeguards potable water systems from contamination caused by backsiphonage or backpressure in health hazard applications. Featuring a durable 304 stainless steel housing, UL and FM approved OSY resilient seated gate valves, and groove couplings for easy installation. The integrated SentryPlus Alert® flood sensor detects excessive water discharges from the relief valve, providing crucial alerts when paired with an add-on connection kit. Its compact, lightweight design and 175 PSI maximum working pressure make it suitable for various installations requiring reliable backflow prevention. Item number F111588.

Help Me Connect

Installation & Connections

  • This assembly utilizes groove couplings for straightforward installation and simplified pipe alignment, offering flexibility in pipeline adjustment.
  • The integrated flood sensor requires an add-on sensor connection kit (sold separately) to activate its alert capabilities. Connection kit options include those compatible with BMS, cellular communication, or the Sensor Control Monitor, enabling integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.
  • When installing a drain line on Series 957 backflow preventers, use 957AG air gaps and attach their brackets directly onto the flood sensor.
View full details

Additional Details

This 8 inch Watts Series 957 Reduced Pressure Zone (RPZ) Assembly Backflow Preventer protects potable water systems from contamination due to backsiphonage or backpressure in health hazard applications. Its extremely compact and lightweight design is approved for horizontal installation.

Advanced Flood Detection

The integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. When paired with an add-on connection kit (sold separately), the sensor activates to relay alerts for potential flooding events to facility personnel, helping to limit flooding and costly damage.

Durable Construction & Easy Serviceability

  • Features a durable 304 (Schedule 40) stainless steel housing and sleeve with a quick-access sleeve.
  • Equipped with torsion spring check valves and resilient seated UL Classified and FM Approved outside stem and yoke (OSY) gate valves.
  • Includes a corrosive-resistant stainless steel bottom mounted pressure relief valve.
  • Utilizes groove couplings for ease of installation and pipe alignment.
  • Designed for unmatched ease of serviceability and features replaceable check disc rubber.

NOTICE: An add-on sensor connection kit is required to activate the flood sensor's communication features. Without this connection kit, the sensor is a passive component that has no communication with any other device. Watts is not responsible for the failure of alerts due to connectivity issues, power outages, or improper installation.

Specifications

  • Size: 8 inch
  • Assembly Type: Reduced Pressure Zone (RPZ)
  • Housing & Sleeve Material: 304 (Schedule 40) Stainless Steel
  • Shutoff Valves: UL Classified and FM Approved OSY Resilient Seated Gate Valves
  • Check Discs: Replaceable Elastomer (Reversible Silicone or EPDM)
  • Elastomers: EPDM, Silicone, Buna-N
  • Torsion Spring Checks: Noryl®, Stainless Steel
  • Test Cocks: Lead Free* Bronze Body
  • Pins & Fasteners: 300 Series Stainless Steel
  • Springs: Stainless Steel
  • Relief Valve: Bottom Mounted Cast Stainless Steel
  • Flood Sensor: SentryPlus Alert® Technology
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • Maximum Working Pressure: 175 PSI (12.1 bar)

Certificates & Approvals

  • AWWA C511-97
  • ASSE 1013
  • CSA B64.4
  • CULUS Classified
  • FM Approved
  • NSF Certified to NSF/ANSI 61-G
  • FCCCHR-USC Approved (excluding 10 inch N-pattern, 6 inch and 10 inch Z-pattern installations)
  • Lead Free* Wetted Surface (less than 0.25% lead by weight)

FAQs

What is the primary function of the Watts Series 957 Reduced Pressure Zone Assembly?

Its primary function is to protect potable water systems from contamination in health hazard applications, preventing reverse flow of liquids due to backsiphonage or backpressure.

How does the flood sensor function?

The integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. When paired with an add-on connection kit, it relays alerts to facility personnel to prevent potential flooding.

Is an additional kit required to activate the flood sensor?

Yes, an add-on sensor connection kit is required to activate the flood sensor's communication capabilities. Without this kit, the sensor acts as a passive component that has no communication with any other device.

What materials are used for the main housing and internal components?

The housing and sleeve are constructed from 304 (Schedule 40) stainless steel. Test cocks are made of Lead Free* bronze, and elastomers include EPDM, silicone, and Buna-N.

What type of shutoff valves are included with this assembly?

This assembly features UL Classified and FM Approved outside stem and yoke (OSY) resilient seated gate valves, designed for reliable operation and durability.
