Lead Free: Wetted surfaces contain less than 0.25% lead by weight
Temperature Range: 33°F - 140°F
Description

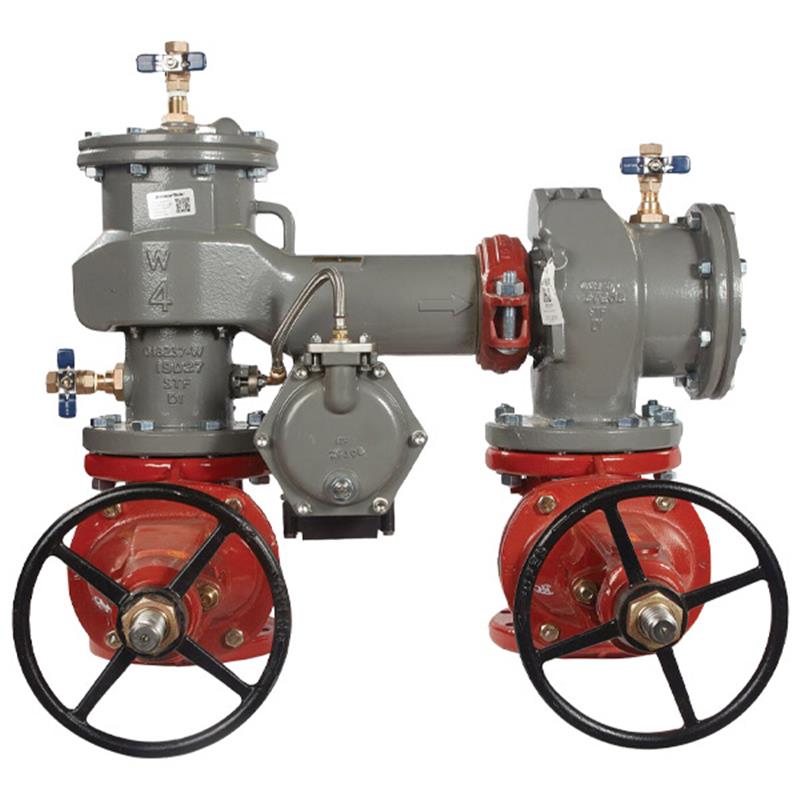

This 8 inch Lead Free MasterSeries Reduced Pressure Zone (RPZ) backflow preventer protects potable water systems from high hazard (toxic) backpressure and backsiphonage in industrial and commercial applications. Its N-pattern design with a longer lay-length allows for direct drop-in replacement of competitor valves. Key features include an ArmorTek epoxy-coated ductile iron body, domestic OSY shutoff valves, stainless steel relief valve seat, and SentryPlus Alert flood sensor for discharge detection. This assembly offers reliable performance, extended valve life, and complies with low lead requirements and various industry standards. Item number F8007371.
Help Me Connect
Compatibility & Installation
Designed as a drop-in replacement for competitor N-pattern valves, featuring a longer gate-to-gate lay-length.
End connections are compliant to ASME B16.1 Class 125 & AWWA Class D Flange.
Approved for horizontal N-pattern installation.
Equipped with AWWA Compliant inlet/outlet resilient seated shutoff valves.
A separate add-on connection kit is required to activate the flood sensor for remote alerts.
This 8 inch lead free MasterSeries® configurable reduced pressure zone backflow preventer assembly is designed to protect potable water systems from high hazard (toxic) backpressure and backsiphonage conditions in industrial installations and applications.
It offers a longer lay-length for convenient drop-in replacement of competitor’s N-pattern valves.
Features
N-pattern configuration for drop-in replacement of competitor valves
Includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve
Stainless steel relief valve seat and stainless steel check components for maximum performance and durability
Modular and repairable pressure differential relief valve
Field reversible relief valve
Captured modular spring assembly and clapper check assembly
Reversible and replaceable discs
Field replaceable seats
Inline serviceable assembly; no special tools required
Construction
Ductile iron valve body design
Iron components are coated with ArmorTek®, a patented three-part advanced epoxy system engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal substrate
Lead Free construction to comply with low lead installation requirements (wetted surface contains less than 0.25% of lead by weight)
Equipped with domestic OSY resilient seated gate valves and test cocks
Flood Sensor Technology
Flood sensor detects continuous discharge from the relief valve
An add-on connection kit (sold separately) is required to activate the flood sensor, enabling it to relay alerts for potential flooding events via BMS, cellular communication, or integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi
An add-on connection kit is required to activate the flood sensor. Without the connection kit, the flood sensor is a passive component that does not communicate with any other device. The flood sensor does not replace the need to comply with all required instructions, codes, and regulations related to installation, operation, and maintenance of this product, including the need to provide proper drainage in the event of a discharge.
Specifications
Size: 8 inch
Body Material: Ductile Iron Grade 65-45-12
Coating: ArmorTek powder coating, applied to internal and external surfaces
Shutoff Valves: OSY resilient wedge gate valves (AWWA C515, UL Classified, FM Approved)
Check Seats: Stainless steel
Relief Valve Seat: Stainless steel
Disc Holder: Stainless steel
Elastomer Disc: Silicone
Spring: Stainless steel
Clamp: AWWA C606
Maximum Working Pressure: 175 psi (12.1 bar)
Minimum Working Pressure: 20 psi (1.4 bar)
Hydrostatic Test Pressure: 350 psi (24.1 bar)
Hydrostatic Safety Pressure: 700 psi (48.3 bar)
Temperature Range: 33°F - 140°F (0.5°C ~ 60°C) continuous
Lead Content: Less than 0.25% by weight (wetted surface)
Certificates & Approvals
Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR USC)
ASSE 1013 Listed
UL Classified (US & Canada)
FM Approved
IAPMO/CUPC
AWWA Standard C511 Compliant
CSA B64.4
NSF Certified to NSF/ANSI 61-G
End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
FAQs
What is the primary function of the FEBCO 8 LF880W-DOSY RP-FS backflow preventer?
This 8-inch Lead Free Reduced Pressure Zone (RPZ) backflow preventer is designed to protect potable drinking water systems from contamination due to high hazard (toxic) backpressure and backsiphonage conditions in industrial and commercial installations.
Does this backflow preventer comply with "Lead Free" requirements?
Yes, the FEBCO 8 LF880W-DOSY RP-FS features Lead Free construction, meaning the wetted surface of the product that contacts consumable water contains less than 0.25% lead by weight, complying with low lead installation requirements.
How does the ArmorTek coating enhance the durability of this backflow preventer?
The ArmorTek coating is a patented three-part advanced epoxy system applied to the ductile iron components. It is engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal substrates, significantly extending the lifespan and reliability of the backflow preventer.
What is the purpose of the SentryPlus Alert® flood sensor, and how is it activated?
The SentryPlus Alert® flood sensor detects excessive water discharges from the relief valve, signaling potential flooding. To activate the sensor and enable alert relaying (e.g., via BMS or cellular network), an add-on connection kit (sold separately) is required. Without the kit, the sensor remains passive.
What type of shutoff valves are included with the 8 LF880W-DOSY RP-FS assembly?
This assembly is fitted with domestic OSY (Outside Stem & Yoke) resilient seated gate valves, which are UL Classified and FM Approved, and comply with AWWA C5115 standards.
