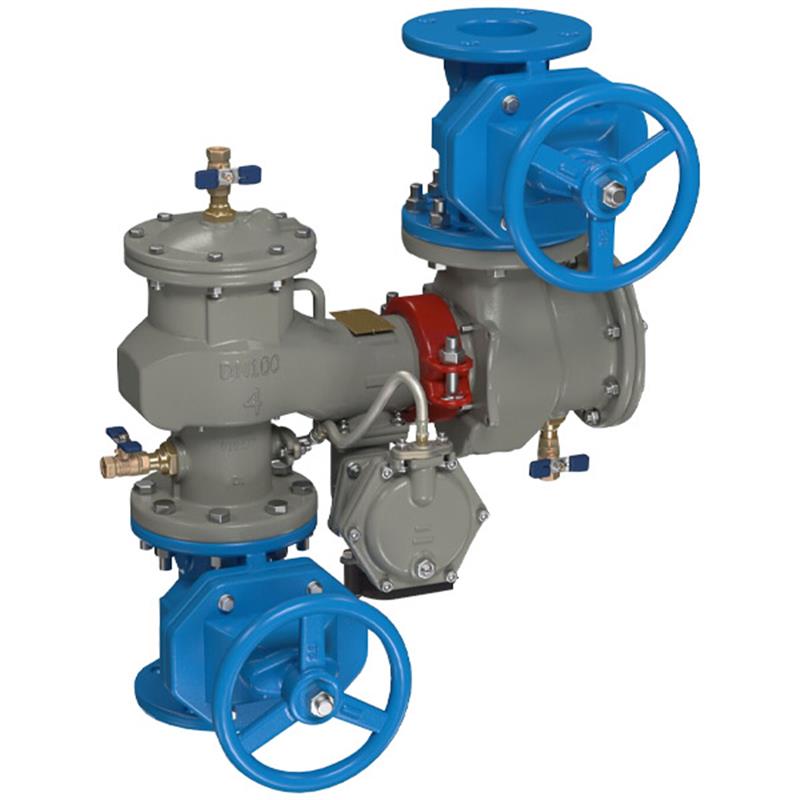

8 LF880WZ-DNRS RP-FS

Item Number: F8007382
1 1
$36,778.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • 8 inch Reduced Pressure Zone (RPZ) Backflow Preventer
  • Weight: 1121.0 lb
  • Lead Free: <0.25% lead by weight
  • Body Material: Ductile iron with ArmorTek® coating
  • Shutoff Valves: Domestic NRS resilient seated gate valves
  • Flood Sensor: SentryPlus Alert® technology integrated
  • Max Working Pressure: 175 psi
  • Temperature Range: 33°F – 140°F
  • Approvals: ASSE 1013, UL, FM, IAPMO/CUPC, AWWA C511, CSA B64.4, NSF/ANSI 61-G

Description

This 8 inch Lead Free MasterSeries LF880WZ Reduced Pressure Zone Backflow Preventer Assembly provides protection against high hazard (toxic) fluids in industrial water systems. Its robust ductile iron body features ArmorTek epoxy coating for superior corrosion resistance and extended lifespan. Key components like the relief valve seat and check components are stainless steel for maximum performance and durability. This assembly includes domestic NRS shutoffs and an integrated SentryPlus Alert flood sensor for detecting excessive water discharge. Designed for drop-in replacement, it offers a longer gate-to-gate length for competitor Z-pattern valves and supports both N-pattern and Z-pattern installations. Rated for 175 psi max working pressure and 33-140°F.

Help Me Connect

Installation & Compatibility

  • This MasterSeries LF880WZ Reduced Pressure Zone assembly is designed for drop-in replacement of competitor's valves, featuring a longer gate-to-gate length specifically for Z-pattern orientation.
  • It supports flexible installation in both N-pattern (horizontal) and Z-pattern (vertical up) configurations.
  • End connections are compliant to ASME B16.1 Class 125 and AWWA Class D Flange standards.

Flood Sensor Connectivity

  • An add-on connection kit (sold separately) is required to activate the integrated flood sensor.
  • Connection kit options allow for integration with Building Management Systems (BMS), cellular communication, or the Sensor Control Monitor, enabling alerts to BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.
  • Without an add-on connection kit, the flood sensor operates as a passive component and will not communicate alerts.
View full details

Additional Details

This 8 inch lead free MasterSeries® LF880WZ configurable reduced pressure zone backflow preventer assembly protects against high hazard (toxic) fluids in water services to industrial installations and applications. It features a longer gate-to-gate length for direct drop-in replacement of competitor’s Z-pattern valves.

Advanced Protection & Durability

  • Integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve.
  • Sensor can be activated by an add-on connection kit (sold separately) for alerts via BMS, cellular communication, or Sensor Control Monitor (BAS via RS-485 Modbus or Nexa® platform via Wi-Fi).
  • ArmorTek® epoxy coating applied to internal and external surfaces of the ductile iron body provides advanced corrosion protection.
  • Features stainless steel relief valve seat and stainless steel check components for maximum performance and extended durability.
  • Equipped with domestic NRS (Non-Rising Stem) resilient seated gate valves.

Design & Maintenance

  • Inline serviceable assembly requires no special tools for maintenance.
  • Includes captured modular spring assembly, clapper check assembly, reversible and replaceable discs, and field replaceable seats.
  • Designed for flexible installation in either N-pattern (horizontal) or Z-pattern (vertical up) configurations.
  • Features a modular and repairable pressure differential relief valve.

Installation must be performed by a trained product installer. Always read all installation instructions and product safety information, and inquire with governing authorities for local installation requirements.

Specifications

  • Product Type: Reduced Pressure Zone (RPZ) Backflow Preventer
  • Model: LF880WZ
  • Nominal Size: 8 inch
  • Body Material: Ductile iron Grade 65-45-12
  • Coating: ArmorTek® powder coating (internal and external surfaces)
  • Shutoff Valves: NRS (Non-Rising Stem) resilient wedge gate valves, AWWA C509 Compliant
  • Check Seats: Stainless steel
  • Relief Valve Seat: Stainless steel
  • Disc Holder: Stainless steel
  • Elastomer Discs: Silicone
  • Springs: Stainless steel
  • Clamps: AWWA C606
  • Lead Content: Wetted surface contains less than 0.25% lead by weight

Performance Ratings

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 20 psi (1.4 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F – 140°F (0.5°C – 60°C) continuous

Certificates & Approvals

  • Approved by FCCCHR USC
  • ASSE 1013 Listed
  • UL Classified (US & Canada)
  • FM Approved
  • IAPMO/CUPC
  • AWWA Standard C511 Compliant
  • CSA B64.4
  • NSF/ANSI 61-G Certified
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange

FAQs

What type of fluid protection does this backflow preventer offer?

This MasterSeries LF880WZ Reduced Pressure Zone assembly is designed to protect against high hazard (toxic) fluids in industrial water services, preventing backpressure and backsiphonage.

What is the purpose of the integrated flood sensor?

The integrated flood sensor with SentryPlus Alert technology detects excessive water discharges from the relief valve, signaling potential flooding events.

Is an additional kit required to activate the flood sensor?

Yes, an add-on connection kit (sold separately) is required to activate the flood sensor and relay alerts via BMS, cellular communication, or a Sensor Control Monitor. Without it, the sensor is passive.

What type of shutoff valves are included with this assembly?

The assembly comes with domestic NRS (Non-Rising Stem) resilient seated gate valves, which comply with AWWA C509 standards.

What material is the valve body made from, and how is it protected?

The valve body is constructed from ductile iron Grade 65-45-12 and features ArmorTek® powder coating applied to both internal and external surfaces for advanced corrosion resistance.
