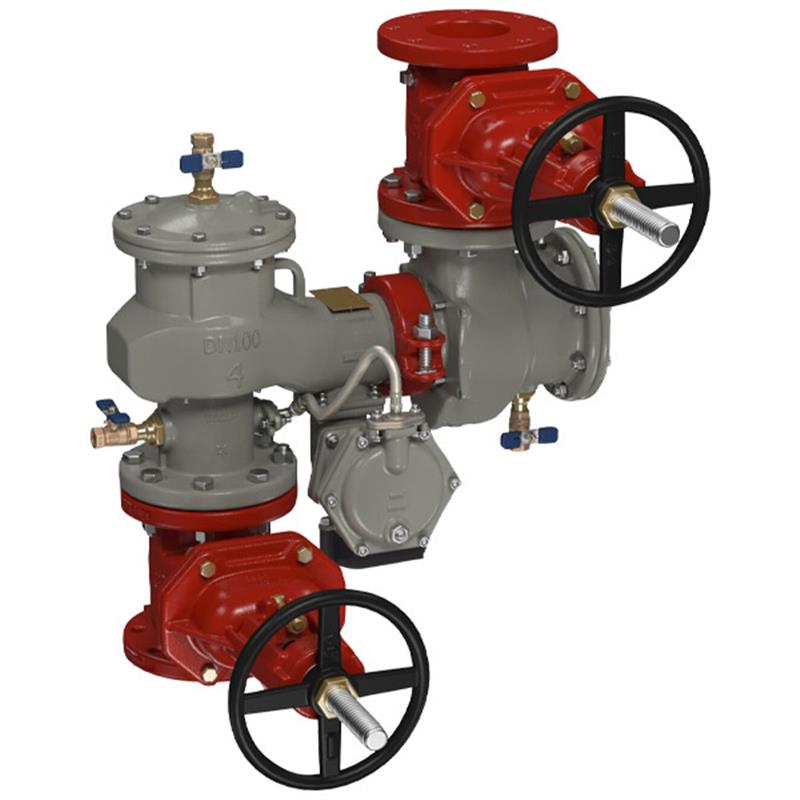

8 LF880WZ-DOSY RP-FS

Item Number: F8007383
1 1
$39,229.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Nominal Size: 8 inch
  • Weight: 1135.0 lb
  • Lead Free construction (less than 0.25% lead by weight)
  • ArmorTek® coated ductile iron body for corrosion resistance
  • Flood sensor with SentryPlus Alert® technology included
  • Designed for Z-pattern drop-in replacement lay length
  • Domestic OSY resilient seated gate valves
  • Max Working Pressure: 175 PSI
  • Temperature Range: 33°F - 140°F continuous

Description

This 8 inch Lead Free FEBCO MasterSeries reduced pressure zone backflow preventer assembly offers high-hazard protection for potable water systems in industrial settings. Its ductile iron body is coated with ArmorTek for superior corrosion resistance and features domestic OSY resilient seated gate valves. Designed for Z-pattern drop-in replacement, this assembly includes a flood sensor with SentryPlus Alert technology to detect excessive relief valve discharge, requiring an add-on kit for alert functionality. With stainless steel internal components, it ensures maximum performance and extended valve life across a 33°F to 140°F temperature range and up to 175 PSI working pressure. Item number F8007383.

Help Me Connect

Installation Orientation

  • This assembly is designed for N-pattern and Z-pattern vertical up and vertical down installation, as well as horizontal N-pattern and Z-pattern orientations.
  • The longer gate-to-gate length facilitates drop-in replacement for existing competitor's Z-pattern valves.

Flood Sensor Connectivity

The integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. To activate the sensor for communication and alerts, an add-on connection kit is required. Connection kit options include integration with Building Automation Systems (BAS) via RS-485 Modbus, cellular communication, or the Nexa® platform through Wi-Fi connectivity via the Sensor Control Monitor.

View full details

Additional Details

This 8 inch Lead Free MasterSeries reduced pressure zone backflow preventer assembly protects potable water systems from high hazard (toxic) fluids in industrial installations and applications by guarding against backpressure and backsiphonage conditions.

This assembly is engineered to provide a drop-in replacement for competitor's Z-pattern valves, featuring a longer gate-to-gate lay length.

Key Features

  • Lead Free construction complies with low lead installation requirements (wetted surface contains less than 0.25% lead by weight).
  • Ductile iron valve body design with ArmorTek® coating technology on internal and external surfaces to resist electrochemical and microbial-induced corrosion.
  • Equipped with a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When activated with an add-on connection kit, the sensor relays alerts to personnel.
  • Stainless steel relief valve seat and stainless steel check components ensure maximum performance and durability.
  • Features domestic OSY resilient seated gate valves.
  • Inline serviceable assembly requires no special tools.
  • Reversible and replaceable discs with captured modular spring and clapper check assemblies.
  • Field replaceable seats.

An add-on connection kit is required to activate the flood sensor for communication; without it, the flood sensor is a passive component. Watts® is not responsible for alert failures due to connectivity issues, power outages, or improper installation. Always comply with all required installation instructions, codes, and regulations.

Specifications

  • Product Type: Reduced Pressure Zone Backflow Preventer
  • Brand: FEBCO MasterSeries®
  • Model: LF880W/WZ
  • Nominal Size: 8 inch
  • Construction: Lead Free
  • Main Valve Body Material: Ductile Iron Grade 65-45-12
  • Relief Valve Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® powder coating (internal & external)
  • Shutoff Valves: OSY resilient wedge gate valve AWWA C515 (UL Classified and FM Approved)
  • Check Seats Material: Stainless steel
  • Relief Valve Seat Material: Stainless steel
  • Disc Holder Material: Stainless steel
  • Elastomer Disc Material: Silicone
  • Spring Material: Stainless steel
  • Clamp: AWWA C606

Pressure - Temperature

  • Max. Working Pressure: 175 PSI (12.1 bar)
  • Min. Working Pressure: 20 PSI (1.4 bar)
  • Hydrostatic Test Pressure: 350 PSI (24.1 bar)
  • Hydrostatic Safety Pressure: 700 PSI (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C) continuous

Certificates & Approvals

  • Approved by FCCCHR USC
  • ASSE 1013 Listed
  • UL Classified (US & Canada)
  • FM Approved
  • IAPMO/CUPC
  • AWWA Standard C511 Compliant
  • CSA B64.4
  • NSF/ANSI 61-G Certified
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange

FAQs

What is the primary function of this 8 inch reduced pressure zone backflow preventer?

This backflow preventer is designed to protect potable drinking water systems from contamination by high-hazard (toxic) fluids. It prevents backpressure and backsiphonage conditions in industrial installations and applications.

What does "Lead Free" mean for this product?

"Lead Free" signifies that the wetted surface of this product, which contacts consumable water, contains less than 0.25% lead by weight, complying with low lead installation requirements.

How does the flood sensor feature work and what is needed to activate it?

The flood sensor detects excessive water discharges from the relief valve. An add-on connection kit is required to activate the sensor and enable communication for alerts via BMS, cellular, or Wi-Fi through the Sensor Control Monitor. Without the kit, the sensor is passive.

What type of shutoff valves are included with this assembly?

This assembly includes domestic OSY (Outside Stem & Yoke) resilient seated gate valves, which are UL Classified and FM Approved according to AWWA C515 standards.

What are the maximum operating pressure and temperature limits for this backflow preventer?

The maximum working pressure for this assembly is 175 PSI (12.1 bar), and it can operate continuously within a temperature range of 33°F to 140°F (0.5°C to 60°C).
