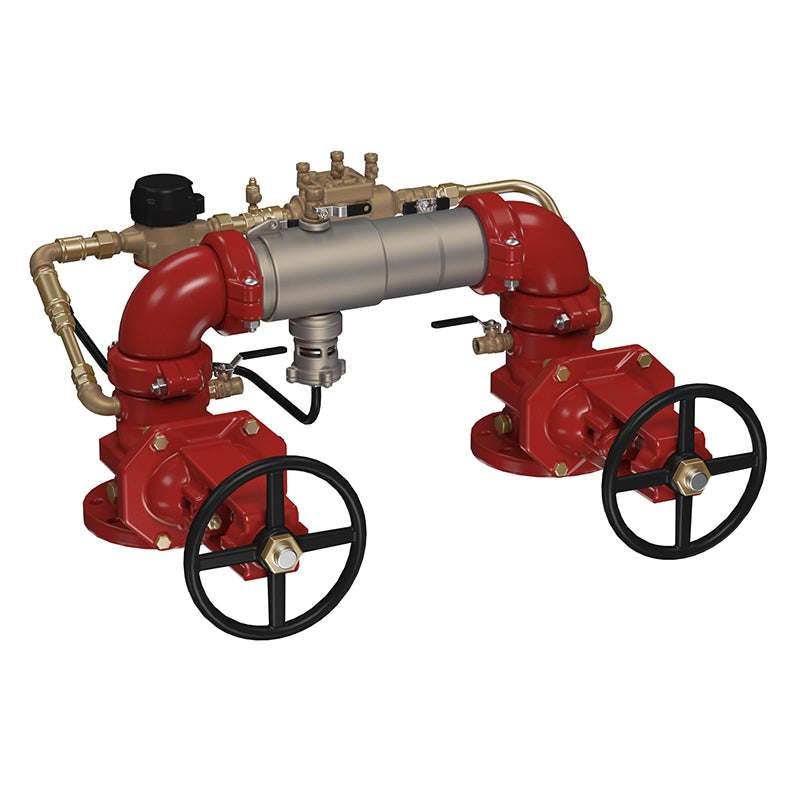

This 8 inch Lead Free* Reduced Pressure Detector Backflow Preventer Assembly protects potable water systems from contamination in accordance with national plumbing codes.

It is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the supply due to backsiphonage and/or backpressure in health hazard applications, such as on fire sprinkler systems.

Key Features

• Lead Free* construction with wetted surfaces containing less than 0.25% lead by weight.
• Extremely compact design and 70% lighter than traditional models for easier installation.
• Constructed with a 304 (Schedule 40) stainless steel housing and sleeve for durability.
• Features UL Classified and FM Approved outside stem and yoke (OSY) resilient seated gate valves.
• Patented torsion spring checks provide the lowest pressure loss and feature reversible elastomer discs and replaceable check disc rubber.
• Groove fittings allow for integral pipeline adjustment.
• Includes a gallons per minute meter in the bypass assembly to detect underground leaks and unauthorized water usage from the fire sprinkler system.
• A flood sensor is integrated into the relief valve to detect excessive water discharges. An add-on connection kit is required to activate the flood sensor and enable flood alerts with BMS and cellular network communication. Without the connection kit, the sensor is a passive component.
