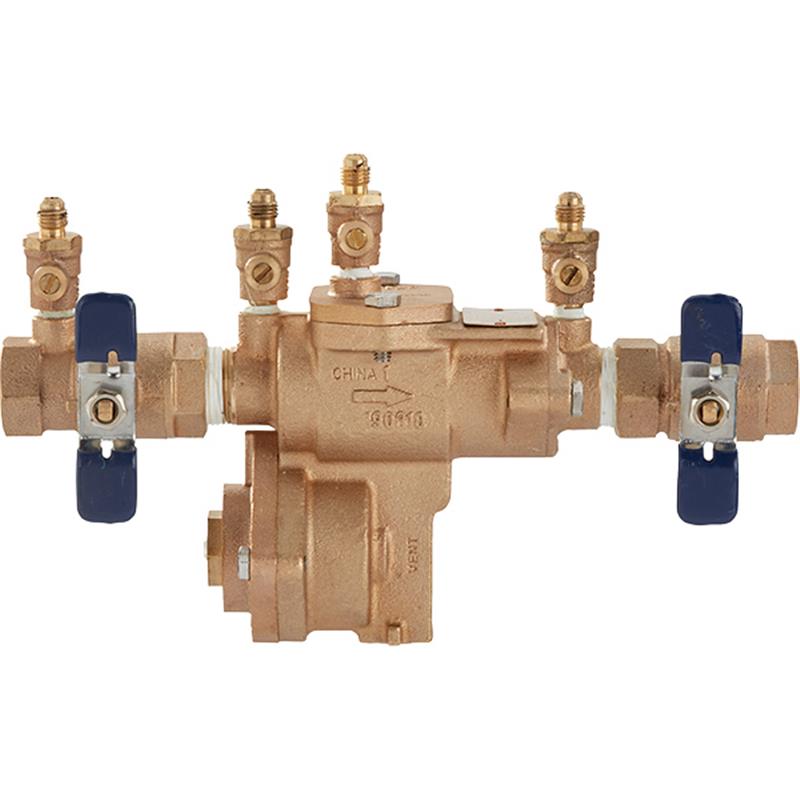

1/2 860-QT RP

Item Number: 1311
1 1
$727.87
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Nominal Size: 1/2 inch
  • Weight: 5.9 lb
  • Body Material: Bronze
  • End Connections: NPT ANSI/ASME B1.20.1
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 32°F to 140°F
  • Quarter Turn Shutoff Ball Valves
  • Flood Detection Sensor on Relief Valve
  • ASSE 1013 and CSA B64.4 Approved

Description

This 1/2 inch FEBCO Series 860 Reduced Pressure Zone Backflow Preventer Assembly is designed for high-hazard non-potable applications. It effectively prevents dangerous cross-connections by protecting drinking water supplies from toxic fluid backflow due to backsiphonage or backpressure. Constructed with a durable bronze body, it features NPT end connections, quarter-turn shutoff valves, and a flood detection sensor on the relief valve. With a maximum working pressure of 175 psi and a temperature range of 32°F to 140°F, this assembly offers reliable performance. It is ASSE 1013 and CSA B64.4 approved, ensuring compliance and safety for industrial, irrigation, and other non-potable systems. Item number 1311.

Help Me Connect

This FEBCO Series 860 Reduced Pressure Zone Backflow Preventer features NPT ANSI/ASME B1.20.1 end connections, making it compatible with standard threaded piping systems for easy installation. The 1/2 inch nominal size is designed for small diameter applications. It includes integrated quarter turn ball valves on both ends for shutoff control.

Flood Detection Sensor

  • The integral flood sensor is a passive component without an add-on connection kit.
  • To activate flood alerts and enable communication with BMS or cellular systems, an add-on sensor connection kit is required.
View full details

Additional Details

This 1/2 inch FEBCO Series 860 Reduced Pressure Zone backflow preventer assembly is designed to protect drinking water supplies from dangerous cross-connections. It prevents the reverse flow of high hazard (toxic) fluids into the potable water supply due to backsiphonage and backpressure, in accordance with national plumbing codes and water authority requirements.

It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Consult your local water authority, building, and plumbing codes before installation.

Features

  • Bronze body construction with top entry access
  • NPT end connections for easy installation
  • Quarter turn shutoff valves for quick control
  • Replaceable seats and discs for simplified maintenance
  • Handles on shutoff valves can be removed to discourage tampering
  • Top mounted test cocks for accurate testing
  • Stainless steel spring for reliable operation
  • Flood detection sensor on the relief valve to detect excessive water discharges
  • Compatible with BMS and cellular communication when activated with an add-on sensor connection kit

Components

  • Durable bronze body
  • Threaded quarter turn ball valves
  • Top mounted test cocks
  • Spring loaded check valves
  • Pressure differential relief valve

Applications

  • Water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants
  • Irrigation systems
  • Boiler feed water lines
  • Other installations requiring maximum protection for non-potable service

Specifications

  • Nominal Size: 1/2 inch
  • Assembly Type: Reduced Pressure Zone (RPZ)
  • End Connection: NPT ANSI/ASME B1.20.1
  • Shutoff Valves: Quarter Turn Ball Valves
  • Flood Detection: Sensor on Relief Valve

Pressure & Temperature

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)

Materials

  • Valve Body Material: Bronze
  • Elastomers: Silicone
  • Springs: Stainless Steel

Certificates & Approvals

  • ANSI/AWWA Conformance (C511)
  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California
  • ASSE 1013
  • CSA B64.4

FAQs

What is the primary purpose of this backflow preventer?

This FEBCO Series 860 Reduced Pressure Zone assembly is designed to protect potable water supplies from contamination by preventing the reverse flow of high-hazard (toxic) fluids due to backsiphonage or backpressure in non-potable systems.

What are the main material components of this assembly?

The main valve body and caps are constructed from durable bronze. It uses silicone elastomers for seals and stainless steel springs for reliable operation.

What type of end connections does this backflow preventer use?

This assembly features NPT ANSI/ASME B1.20.1 threaded end connections, making it compatible with standard threaded piping systems for straightforward installation.

Is this product suitable for use in drinking water systems?

No, it is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. It is specifically designed for non-potable health-hazard applications.

What is the function of the included flood detection sensor?

The flood detection sensor on the relief valve monitors for excessive water discharges. When an add-on connection kit is used, it can activate flood alerts and communicate with building management systems.
